Drilling Tools

Home > Product > Drill Rod

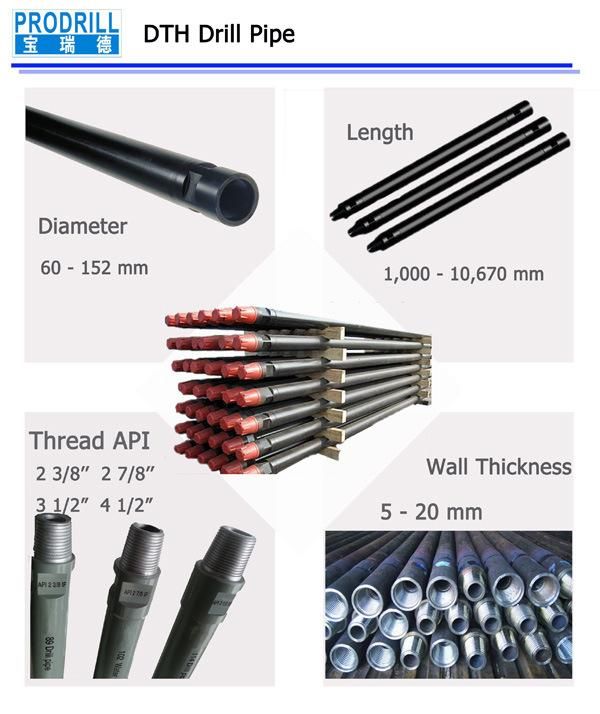

1000mm-5000mm DTH Drill Pipe for DTH Drill Rig

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Length：6.10-7.01m
  • Usage：Well Drilling
  • Material：Carbon Steel
  • Model Number：DTH Drill Rod
  • Diameter：76,84,114mm etc
  • Pipe of Length：1000-6000mm

Base Info

  • Model NO.：DTH Pipe
  • Application：Well Drilling, Mining, Blasting
  • Transport Package：Wood Box
  • Specification：iso9001
  • Trademark：Prodrill
  • Origin：China
  • HS Code：82071990
  • Production Capacity：3000PCS

Description

Product Name:DTH drill rodsDescription:DTH drill rods are used for blast hole drilling and water well drilling project.
Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining,
Marble quarry or well drilling and other construction projects.Quality level:95% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brandMOQ:5pcsSeries:COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc Specification:Weight (kg)External Diameter (mm)Connection threadHole rang (mm)Impact rateRecommended rotation speedLow air pressure DTH hammer CIR type5 ~2250~180CIR**55~200820 rpm Middle air pressure BR & COP type10~3070~110 85~115  3 inch DTH hammer
COP34/QL30 etc24.581API 2 3/8" Reg90~11028Hz (at 17 bar)28 r/min4 inch DTH hammer
COP44/DHD340 etc39.299API 2 3/8" Reg110~15027Hz (at 17 bar)25~40 r/min5 inch DTH hammer
COP54/Mission50 etc71.5125API 2 3/8" or API 3 1/2" Reg135~16525Hz (at 17 bar)20~30 r/min6 inch DTH hammer
COP64/QL60 etc98142API 3 1/2" Reg152~21623Hz (at 17 bar)15~25 r/min8 inch DTH hammer
COP84/SD8 etc188180API 4 1/2" Reg203~30520Hz (at 17 bar)15~20 r/min
1000mm-5000mm DTH Drill Pipe for DTH Drill Rig

1000mm-5000mm DTH Drill Pipe for DTH Drill Rig
Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory

About Us:
1.    Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2.    We have advanced technology and equipment.
3.    Our technician has more than 13 year's professional working experience.
4.    Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
