Dry Type Diamond Core Drill Bit Concrete Hole Saw
Shanghai Total Industrial Co., Ltd.- Customized：Customized
- Length：Jobber-length
- Type：Core Drill Bit
- Material：Diamond
- Usage：Masonry Drilling
- Cutting Depth：170mm
Base Info
- Model NO.：TLT08
- Transport Package：Box, Carton
- Specification：QC
- Trademark：TOTAL
- Origin：Shanghai
- HS Code：8207509000
- Production Capacity：1000000PCS,Month
Description

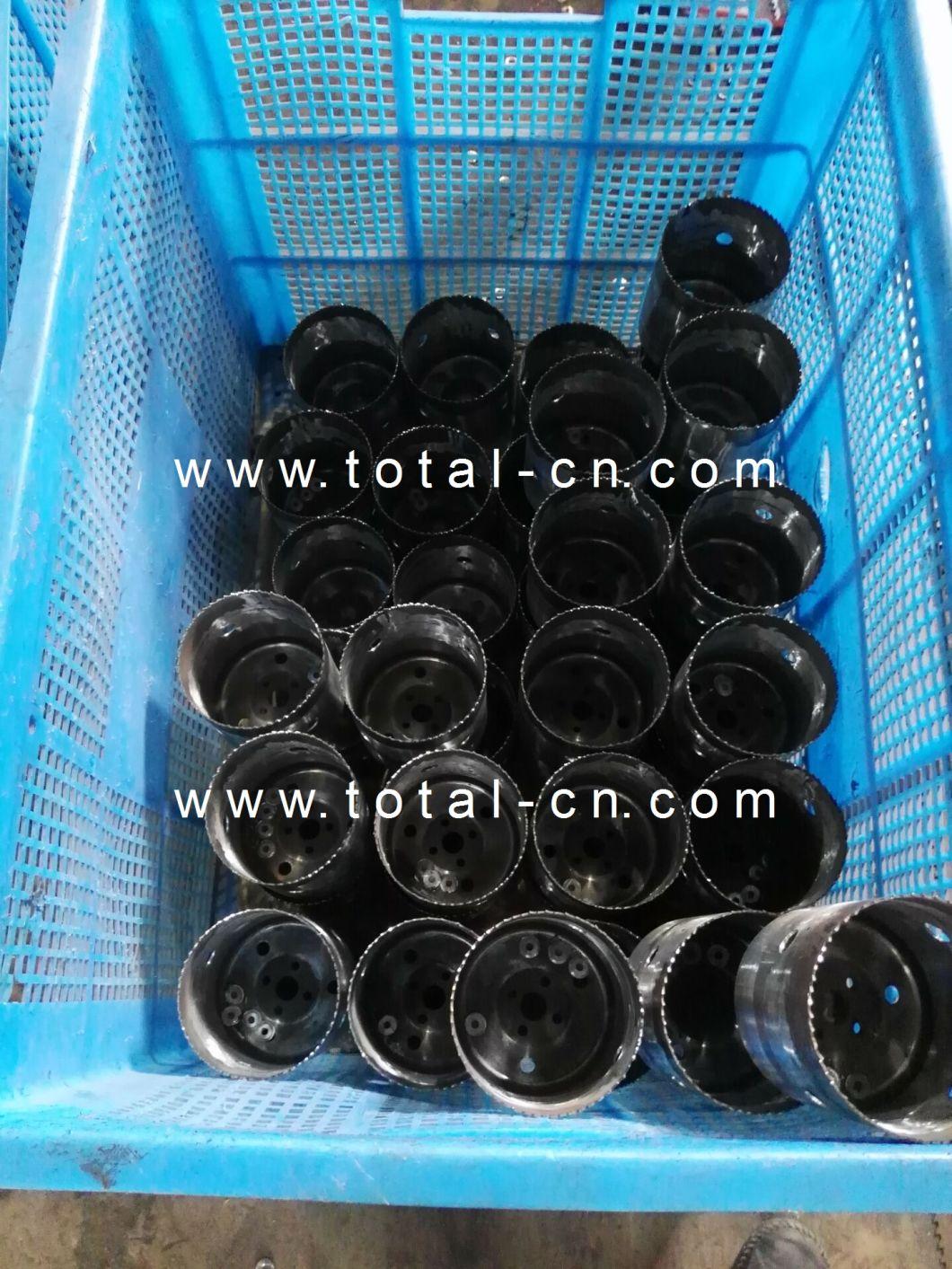

M3/M42 bi-metal construction for heavy duty cutting:
*Variable pitch teeth for faster, smoother cutting and less vibration
*longer lasting design for more cuts per saw
*Multiple knock-out slots and holes for easy core removal
*Cutting depth to 1-1/2"(38mm), 1-7/8"(47mm)
*Diameters form 9/16"(14mm)to 8-17/64"(14-210mm)
*Can be used in portable electric or pneumatic tools, vertical drill machines, lathe, boring/milling machines and other machine tools
*Cuts through stainless steel and other materials pipe, nail-embedded wood, hard wood floors, plywood and plastics
*Extra charge for the pilot and arbor
Arbors and accessories for Bi-metal Hole Saws
Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103001 | 1/4 Round | 1/2-20 | 1/4 | 9/16 -- 1-3/16 |
| (14mm-30mm) |
Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103002 | 3/8 Hex | 1/2-20 | 3/8 | 9/16 -- 1-3/16 |
| (14mm-30mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103003 | 7/16 Hex | 1/2-20 | 1/2 | 9/16 -- 1-3/16 |
| (14mm-30mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103004 | 7/16 Hex | 1/2-20 | 1/2 | 9/16 -- 1-3/16(14mm-30mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103005 | 7/16 Hex | 5/8-18 | 1/2 | 1-1/4 -- 2-3/8(32mm-60mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103006 | 7/16Hex | 5/8-18 | 1/2 | 1-1/4 -- 8-17/64 |
| (32mm-210mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103007 | 3/8Hex | 5/8-18 | 3/8 | 1-1/4 -- 8-17/64 |
| (32mm-210mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103008 | 7/16 Hex | 5/8-18 | 1/2 | 1-1/4 -- 8-17/64 |
| (32mm-210mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103009 | 5/8 Hex | 5/8-18 | 3/4 | 1-1/4 -- 8-17/64 |
| (32mm-210mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103010 | SDS Plus | 1/2-20 | SDS | 9/16 -- 1-3/16 |
| (14mm-30mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103011 | SDS Plus | 5/8-18 | SDS | 1-1/4 -- 8-17/64 |
| (31mm-210mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103012 | 1/4 Universal | 1/2-20 | 1/4 | 9/16 -- 1-3/16 |
| (14mm-30mm) |
| Item No. | Shank | Thread | Chuck | Fits Saws |
| T10103013 | 1/4 Universal | 5/8-18 | 1/4 | 1-1/4 -- 8-17/64 |
| (31mm-210mm) |
| tem No. | Description |
| T10104001 | Adapters arbors with 1/2-20 threads to fit 5/8-18 |
| Item No. | Description |
| T10104002 | 5-1/2" (140mm) Extension for shank of 7/16" arbors |
| T10104003 | 10" (250mm) Extension for shank of 7/16" arbors |
| T10104004 | 12" (300mm) Extension for shank of 7/16" arbors |
| T10104005 | 18" (450mm) Extension for shank of 7/16" arbors |
| Item No. | Description |
| T10104006 | Ejector Spring, fits all 1/4" pilot drills |
| Item No. | Description |
| T10104007 | 2-7/8" x1/4" (73mm x 6.35mm) Pilot Drills |
| Item No. | Description |
| T10104008 | 4" x1/4" (102mm x 6.35mm) Pilot Drills |
| Item No. | Description |
| T10104009 | Hex Key Wrench |

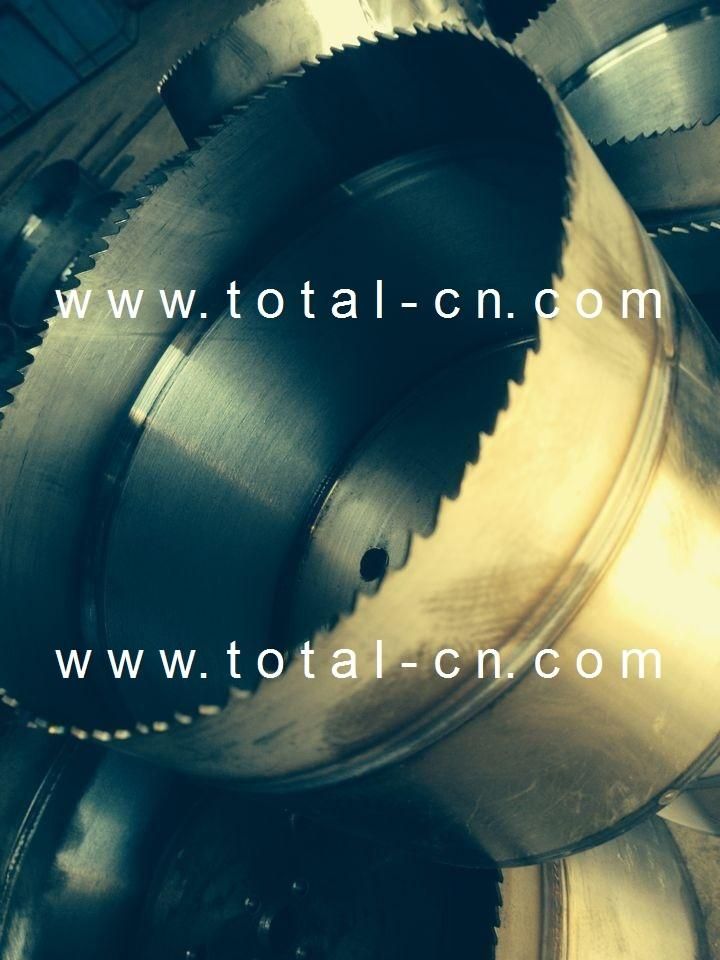

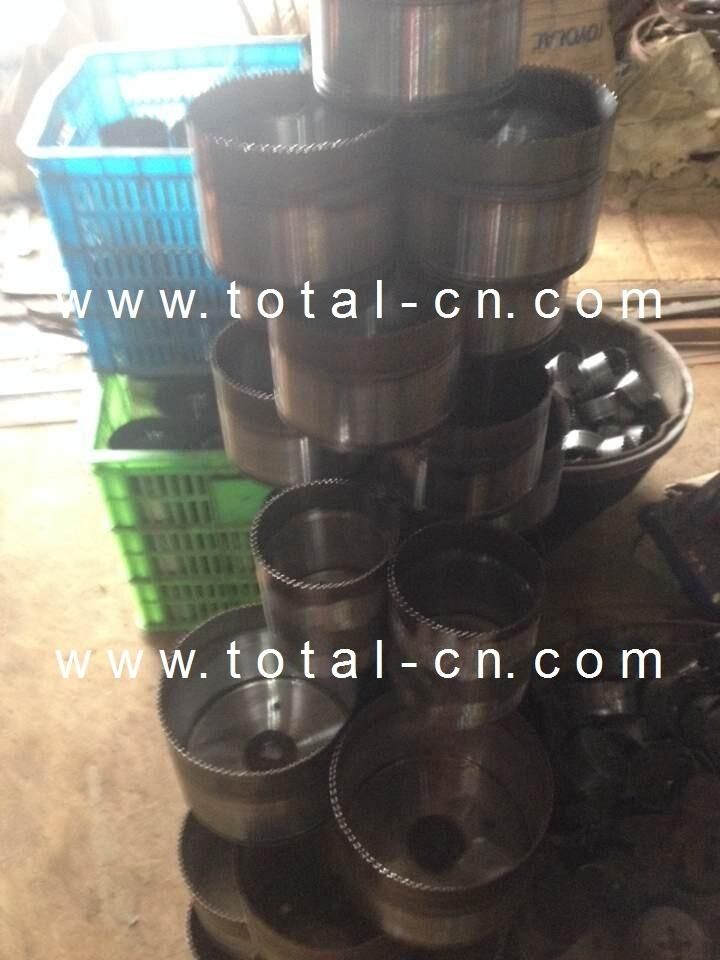

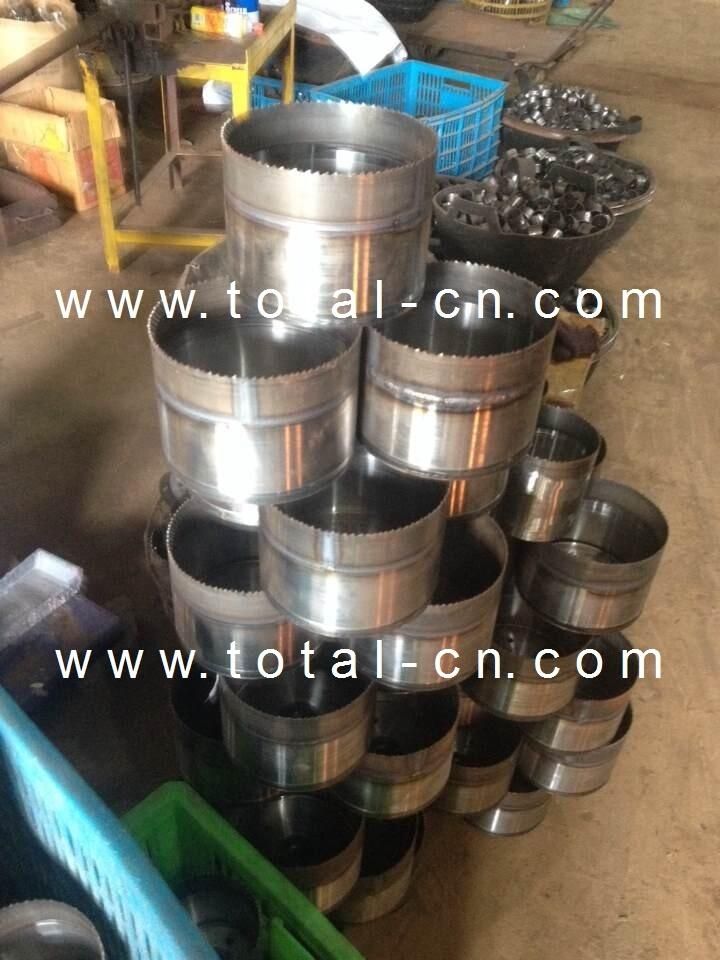

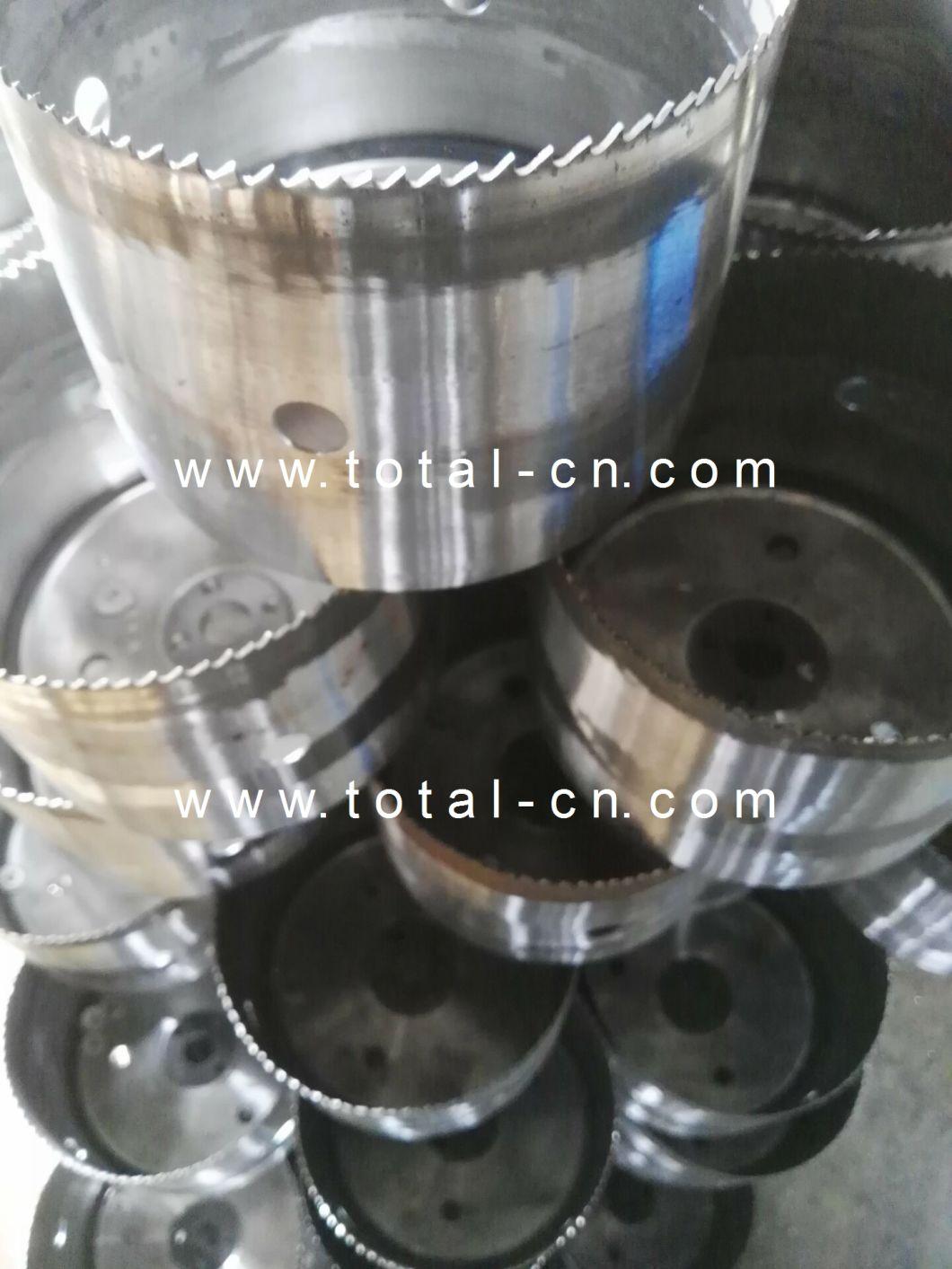

Big cutting depth hole saws, Big diameter hole saws
*M42 bi-metal construction for heavy duty cutting:
*Variable pitch teeth for faster, smoother cutting and less vibration
*longer lasting design for more cuts per saw
*Multiple knock-out slots and holes for easy core removal
*Cutting depth to 52mm, 70mm, 80mm, 100mm, 120mm, 152mm, 154mm, 165mm
*Diameters form 1-7/8"(48mm)to 15"(381mm)
*Can be used in portable electric or pneumatic tools, vertical drill machines, lathe, boring/milling machines and other machine tools
*Cuts through stainless steel and other materials pipe, pvc pipe, nail-embedded wood, hard wood floors, plywood and plastics,
*Extra charge for the pilot and arbor
Arbors and accessories
Size: 20X14X1.5X9.4mm
big hex arbor with thread 25*12mm
12mmx 200mm, 12mmx 250mm
Cutting depth: 70mm
Cutting depth: 120mm
Cutting depth: 120mm, diameter: 381mm
Cutting depth: 165mm, daimeter: 325mm
Diamond Core Drill Bits
( concrete hole saw, diamond core drill, concrete drill core bits)
DRY TYPE
Application: For masonry, brick, concrete with light or medium steel reinforcing. Also effective for granite, marble and stone. Special vents help keeping the bit cool and provide fast removal of cutting debris.
item no.
+/-1mm
cutting depth

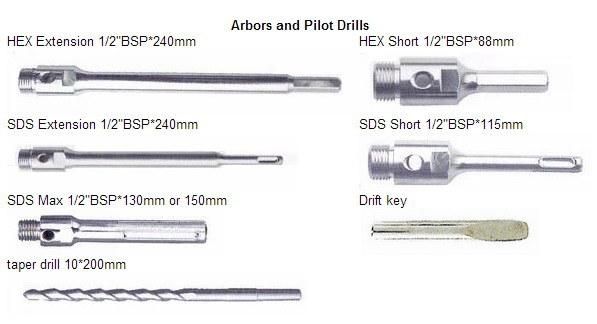

Arbors and Pilot Drills
HEX Extension 1/2"BSP*240mm
WET TYPE( SINGLE& ASSEMBLY)
Application: For drilling various ranges of materials including masonry, bricks, concrete blocks, reinforced concrete, etc. with water. The assembly type is made up of three parts: Bit, Tube, and Coupling.
Different connections and segment specifications are available upon request.
Carbide Tipped (TCT) Hole Saws-- H1 type
1.3-ply cutters reduces tip crack even with hard use,amd the edge of knife adopts super quality alloy material,which is applied to drilling in cold/hard metal or stainless steel plate;
2.The 25mm effective length enables this hole-saw to drill thick steel plate as well as curved face material like thick-wall metal pipes etc.
3.The abrasion reducing design heightens durability of hole-saw to great degree,besides,with lighter and faster drilling compared with previous flat-edge products.
Dia
Carbide Tipped (TCT) Hole Saws-- H2 type
Can be applied to drilling in cold/hard metal or stainless steel plate; the effective cutting length is 22mm.
Dia
Carbide Tipped (TCT) Hole Saws-- H3 type
Especially designed for drilling on stainless steel pipe & tube and other wares or sheet with rough surface, the effective cutting length is 12mm. Maximum cutting capacity: 5mm thickness stainless steel sheet.
Dia
Woodworking Hole Saws with Carbide Tips
Diameter
