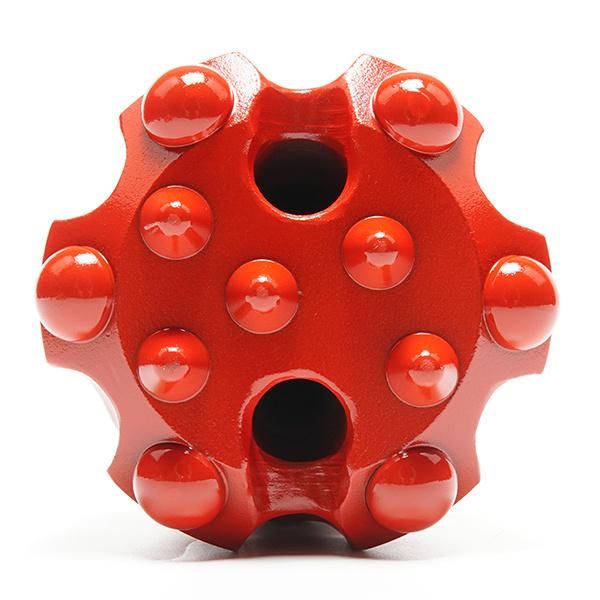

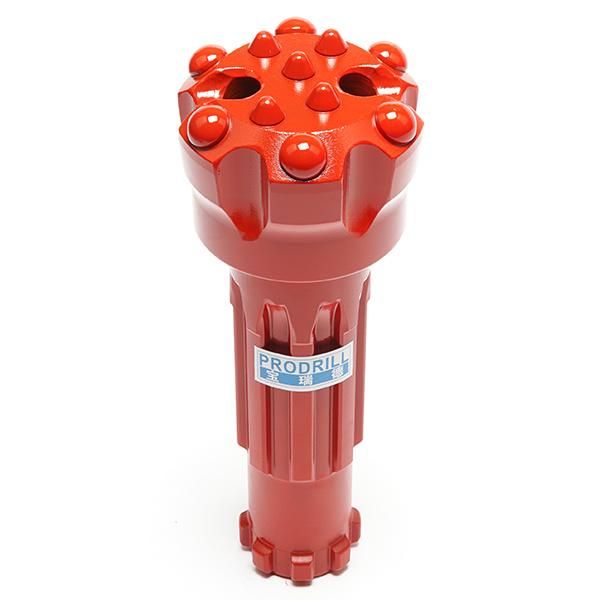

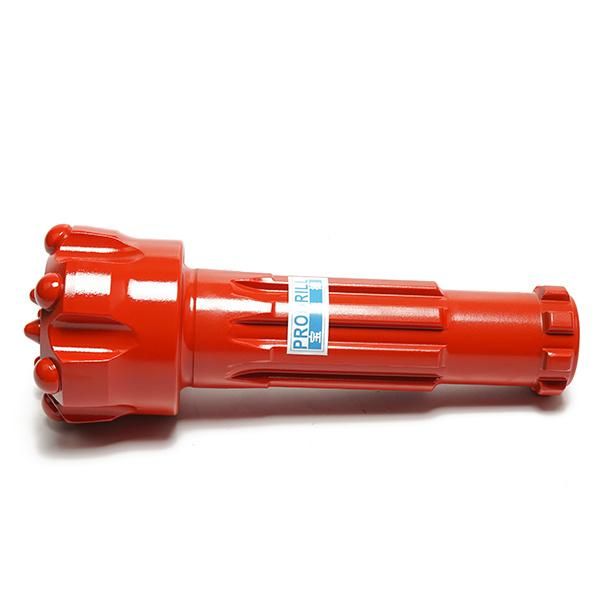

DHD3.5 * 90 mm for Water Well Drilling DTH Hammer Bit

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Customized：Non-Customized
  • Standard：ISO9001
  • Type：Drill Bit
  • Material：Carbide
  • Usage：Well Drilling
  • Brand：Prodrill

Base Info

  • Model NO.：DHD3.5-90
  • Model Number：Button Bits
  • Machine Type：Drilling Tool
  • Processing：Forging
  • Color：Red, Black, Yellow, White
  • Code No：DHD3.5-90
  • Diameter：90mm
  • Air Holes：2
  • Gauge Buttons：6
  • Front Buttons：5
  • Carbide Design：Dome, Ballistic
  • Face Design：Flat
  • Shank Type：DHD
  • Transport Package：Wood Package
  • Specification：CE
  • Trademark：PRODRILL
  • Origin：China
  • HS Code：82071990
  • Production Capacity：2000pec,Months

Description

Basic Info.

Model NO. DHD3.5-90 Model Number Button Bits Machine Type Drilling Tool Processing Forging Color Red, Black, Yellow, White Code No DHD3.5-90 Diameter 90mm Air Holes 2 Gauge Buttons 6 Front Buttons 5 Carbide Design Dome, Ballistic Face Design Flat Shank Type DHD Transport Package Wood Package Specification CE Trademark PRODRILL Origin China HS Code 82071990 Production Capacity 2000pec/Months

Product Description

(1) Made from premium quality nickel-alloy steel 25SiMnCrNi2MoVA
for increased durability and wear characteristics,  and YK 05 tungsten
carbide as same grade as internationally well-known brand
(2) Apply "hot (thermal) -insertion" processing procedure to
insert the buttons as same as internationally well-known brand,
(3) Entire CNC processing procedure ensure the quality consistency and reliable.
(4)Grade requirements of heat-treatment guarantee durability,
Specific heat treatment standards and special "stress relief" processes ensure
consistent performance.
(5) Designed for maximum performance and hole cleaning ability and high penetration rate.

Pro Drill DTH bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84,
Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380
QL40, QL50 , QL60, QL80.  COP32,44, Mission80,SD8,10, Mincon,Mach, Numa
DHD3.5 * 90 mm for Water Well Drilling DTH Hammer BitDHD3.5 * 90 mm for Water Well Drilling DTH Hammer BitDHD3.5 * 90 mm for Water Well Drilling DTH Hammer Bit


DHD3.5 * 90 mm for Water Well Drilling DTH Hammer Bit


Specification:Diameter: (mm)Weight: (kg)
Low air pressure DTH bits CIR type68 ~ 2002.6 ~ 48
Middle air pressure BR & COP type76 ~ 1103.8 ~ 15
3 inch high Air pressure DTH bits85 / 90 / 95 / 100 / 1054.2 ~ 5.5
4 inch high Air pressure DTH bits105 / 110 / 115 / 120 / 1279 ~ 12
5 inch high Air pressure DTH bits133 / 140 / 146 / 152 / 16515 ~ 18.5
6 inch high Air pressure DTH bits152 / 165 / 178 / 190 / 20326 ~ 36
8 inch high Air pressure DTH bits195 / 203 / 216 / 254 / 30533 ~ 95

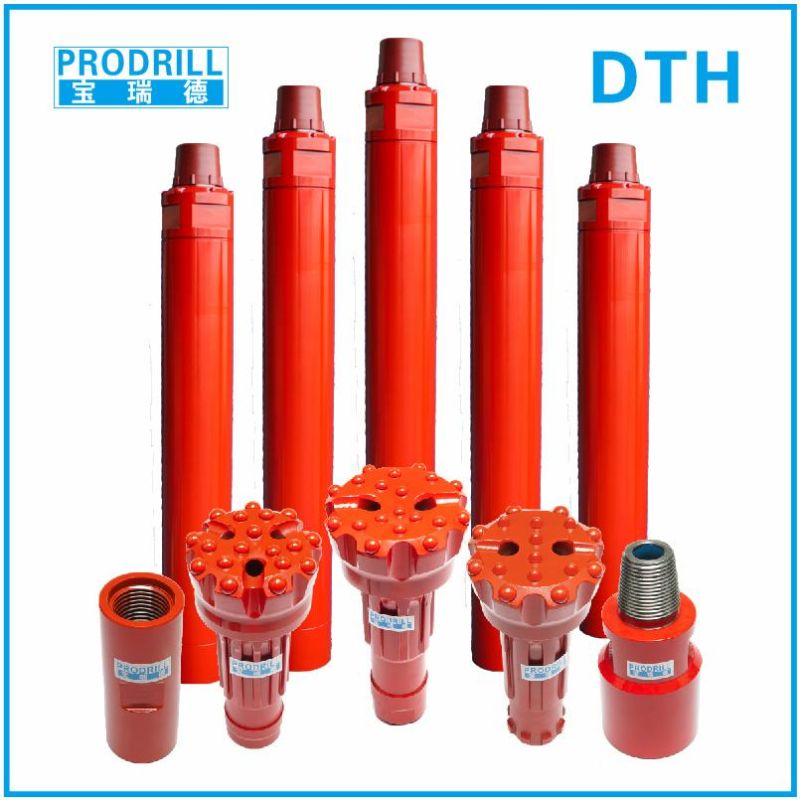

Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters


DHD3.5 * 90 mm for Water Well Drilling DTH Hammer Bit

Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
DHD3.5 * 90 mm for Water Well Drilling DTH Hammer Bit

About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
.
