• Model NO.：3002
• Carbide Tip Type：Virgin Yg8
• Steel Shaft Type：40cr
• Flute Type：H
• Cutting Head：130degree Triangle
• Marking：Stamped
• Surface Treatment：Black Flute & Polished Surface
• Shank Type：Cylindrical
• Welding Type：Hfw. (High Frequency Welding)
• Transport Package：Blister, Skin, Sandwich, Paper Hanger, Paper Box,
• Specification：3mm to 25mm diameter
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：4800000PCS,Year

Basic Info.

Model NO. 3002 Carbide Tip Type Virgin Yg8 Steel Shaft Type 40cr Flute Type H Cutting Head 130degree Triangle Marking Stamped Surface Treatment Black Flute & Polished Surface Shank Type Cylindrical Welding Type Hfw. (High Frequency Welding) Transport Package Blister, Skin, Sandwich, Paper Hanger, Paper Box, Specification 3mm to 25mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 4800000PCS/Year

Product Description

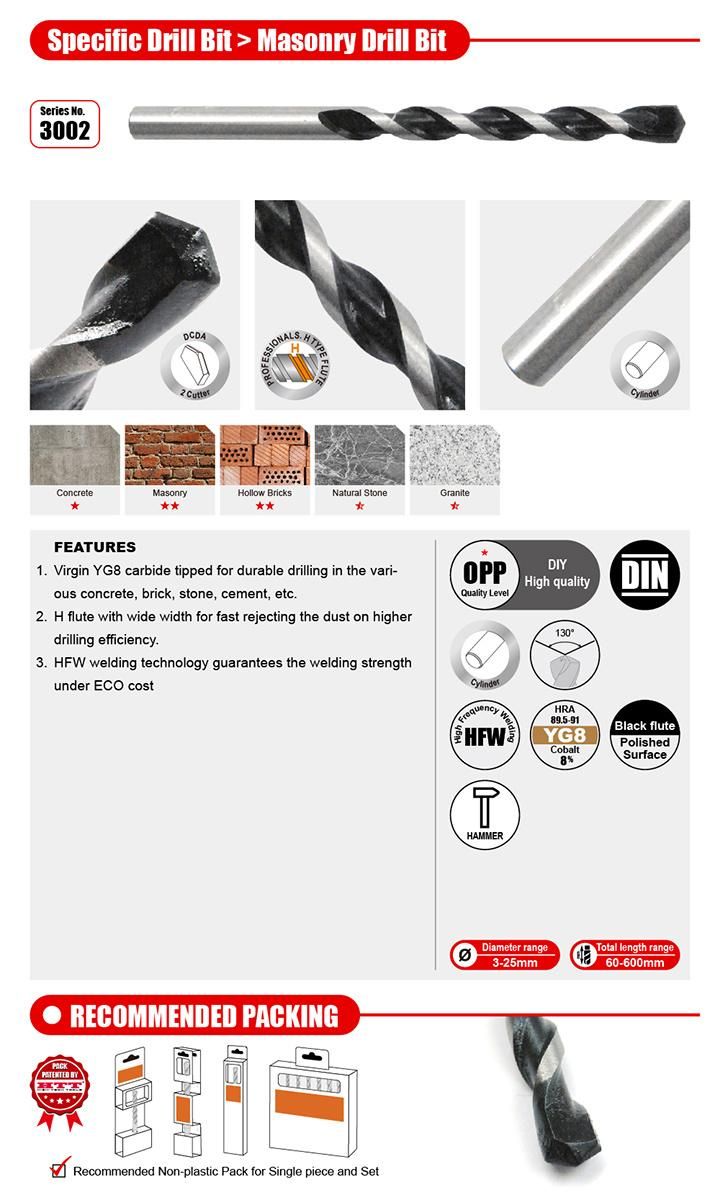

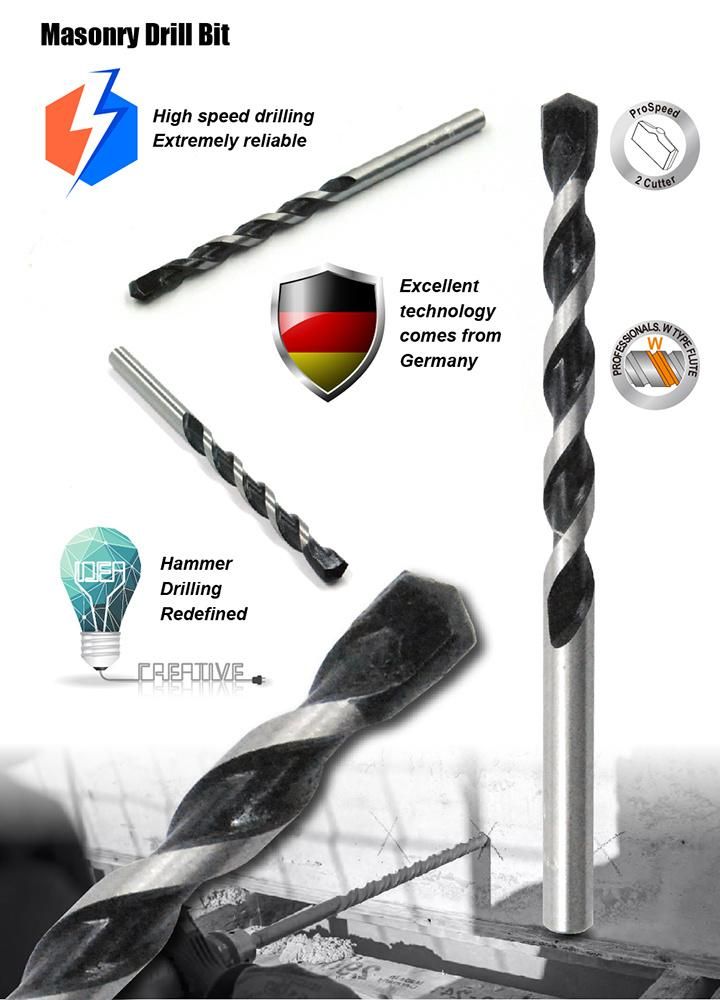

*Eco Masonry Drill Bit Cylindrical shank for drilling concrete brick cement etc.

*Virgin YG8 carbide with the reasonable wear-resistance performance for DIY high quality demands .

*H type of flute design maximizes drilling dust rejection rate without stuffed problem, to increase the drilling speed with more comfortable operation feelings.

*Lower vibration for an easy longer-time drilling job

*SGS-approved anti-rust oil treatment and color paints to protect the final users under Reach standard.




*Other special sizes are also available on the customers' special request.
*Diameter 14mm to 25mm drill bits are with the reduced cylindrical shank diameter 10mm

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)	Shank Diameter(mm)
3002.030060	3	30	60	2.8
3002.030070	3	35	70	2.8
3002.030076	3	41	76	2.8
3002.030085	3	45	85	2.8
3002.035060	3.5	30	60	2.8
3002.035070	3.5	35	70	2.8
3002.040075	4	35	75	3.75
3002.040085	4	45	85	3.75
3002.040090	4	50	90	3.75
3002.040102	4	62	102	3.75
3002.040150	4	110	150	3.75
3002.045075	4.5	35	75	4
3002.045085	4.5	45	85	4
3002.050085	5	40	85	4.5
3002.050090	5	45	90	4.5
3002.050095	5	50	95	4.5
3002.050100	5	60	100	4.5
3002.050127	5	85	127	4.5
3002.050150	5	110	150	4.5
3002.050250	5	200	250	4.5
3002.050300	5	250	300	4.5
3002.050400	5	260	400	4.5
3002.050500	5	360	500	4.5
3002.055085	5.5	45	85	5
3002.055095	5.5	50	95	5
3002.055100	5.5	60	100	5
3002.055150	5.5	110	150	5
3002.060100	6	60	100	5.5
3002.060150	6	110	150	5.5
3002.060200	6	130	200	5.5
3002.060260	6	190	260	5.5
3002.060300	6	230	300	5.5
3002.060400	6	340	400	5.5
3002.060600	6	460	600	5.5
3002.065100	6.5	60	100	6
3002.065127	6.5	85	127	6
3002.065150	6.5	110	150	6
3002.065200	6.5	130	200	6
3002.065260	6.5	190	260	6
3002.065300	6.5	230	300	6
3002.065305	6.5	235	305	6
3002.065400	6.5	340	400	6
3002.070100	7	60	100	6.5
3002.070120	7	80	120	6.5
3002.070127	7	85	127	6.5
3002.070150	7	110	150	6.5
3002.070300	7	230	300	6.5
3002.070400	7	340	400	6.5
3002.070500	7	360	500	6.5
3002.075100	7.5	60	100	6.5
3002.075120	7.5	80	120	6.5
3002.075150	7.5	110	150	6.5
3002.080120	8	80	120	7.6
3002.080127	8	85	127	7.6
3002.080150	8	110	150	7.6
3002.080200	8	130	200	7.6
3002.080260	8	190	260	7.6
3002.080300	8	230	300	7.6
3002.080305	8	235	305	7.6
3002.080400	8	340	400	7.6
3002.080460	8	380	460	7.6
3002.080600	8	460	600	7.6
3002.085120	8.5	80	120	8
3002.085150	8.5	110	150	8
3002.085200	8.5	130	200	8
3002.090120	9	80	120	8
3002.090150	9	110	150	8
3002.095120	9.5	80	120	9
3002.095127	9.5	85	127	9
3002.095150	9.5	110	150	9
3002.095460	9.5	380	460	9
3002.100120	10	80	120	9
3002.100150	10	110	150	9
3002.100200	10	135	200	9
3002.100260	10	190	260	9
3002.100300	10	230	300	9
3002.100400	10	340	400	9
3002.100600	10	460	600	9
3002.110120	11	80	120	9
3002.110150	11	110	150	9
3002.110200	11	135	200	9
3002.115120	11.5	80	120	9.98
3002.115150	11.5	110	150	9.98
3002.115200	11.5	135	200	9.98
3002.120130	12	80	130	9.98
3002.120150	12	90	150	9.98
3002.120200	12	150	200	9.98
3002.120260	12	150	260	9.98
3002.120300	12	230	300	9.98
3002.120400	12	340	400	9.98
3002.120600	12	460	600	9.98
3002.121000	12	900	1000	9.98
3002.125130	12.5	80	130	9.98
3002.125150	12.5	90	150	9.98
3002.125200	12.5	150	200	9.98
3002.130150	13	90	150	9.98
3002.130200	13	150	200	9.98
3002.130300	13	230	300	9.98
3002.130305	13	235	305	9.98
3002.130460	13	380	460	9.98
3002.135150	13.5	90	150	10
3002.135200	13.5	150	200	10
3002.140150	14	90	150	10
3002.140200	14	135	200	10
3002.140260	14	200	260	10
3002.140300	14	230	300	10
3002.140400	14	340	400	10
3002.140600	14	460	600	10
3002.145150	14.5	90	150	10
3002.145200	14.5	135	200	10
3002.150150	15	90	150	10
3002.150200	15	135	200	10
3002.160150	16	90	150	10
3002.160200	16	135	200	10
3002.160250	16	200	260	10
3002.160300	16	230	300	10
3002.160305	16	235	305	10
3002.160400	16	340	400	10
3002.160460	16	380	460	10
3002.160600	16	460	600	10
3002.180160	18	100	160	10
3002.180200	18	135	200	10
3002.180300	18	230	300	10
3002.180400	18	340	400	10
3002.180600	18	460	600	10
3002.190152	19	90	152	10
3002.190160	19	100	160	10
3002.190200	19	135	200	10
3002.190305	19	230	305	10
3002.190460	19	380	460	10
3002.200160	20	100	160	10
3002.200200	20	135	200	10
3002.200260	20	200	260	10
3002.200300	20	230	300	10
3002.200400	20	340	400	10
3002.200600	20	460	600	10
3002.220160	22	100	160	10
3002.220200	22	135	200	10
3002.220300	22	230	300	10
3002.220400	22	340	400	10
3002.220460	22	380	460	10
3002.220600	22	460	600	10
3002.250152	25	90	152	13
3002.250160	25	100	160	13
3002.250200	25	135	200	13
3002.250300	25	230	300	13
3002.250305	25	235	305	13
3002.250400	25	340	400	13
3002.250460	25	380	460	13
3002.250600	25	460	600	13
