• Shank Type：H22*108mm
• Processing Type：Forging
• Color：Customed
• Transport Package：Wooden Carton
• Trademark：PRODRILL
• Origin：China
• HS Code：82071990
• Production Capacity：10000,Month

Processing Type:ForgingTypesTapered drill rods, Integral drill rods, Plug hole rodsApplication:Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drillingMaterial:High quality carbide and high quality steelMOQ:No requirement for testing and trial order

We can produce as your request of carbide size, different length of drill rods.

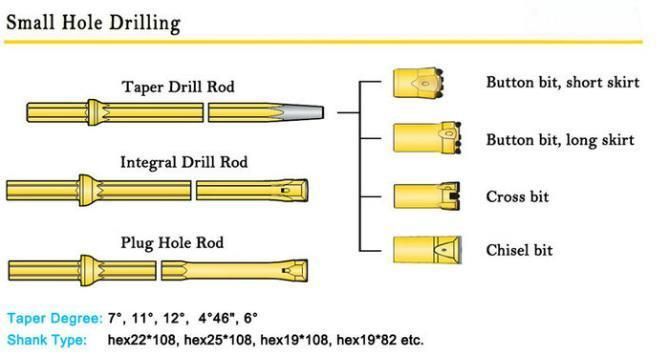

Types of drill rods	Specifications	Length(mm)	Shank	Weight (kg)
Tapered drill rods	Taper Angle: 4, 6, 7, 11, 12 degree	400mm to 8000mm	Hex22mm*108mm	1.7 - 24.9
Integral drill steel	Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm	400mm to 4800mm	Hex25mm*159mm	3 - 15.4
Plug hole rods	Chisel bit diameter: 17mm, 20mm, 22mm	150mm to 710mm	Hex19mm*108mm	0.6 - 2.9

Reliable Atlas copco drill steel



Integral drill rod, another name called integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling shank H22x108mm, H19x108mm, and standard hex. Bit diameters include 20-42mm,different lengths are a

       Material: 95CrMo (Same as SANDBAR 20 or C253)
Diameter: Hex. 22mm, 25mm, 28mm, 32mm, 38mm.
Length: 800mm, 1600mm, 2400mm, 3200mm or any length according to your requirement.

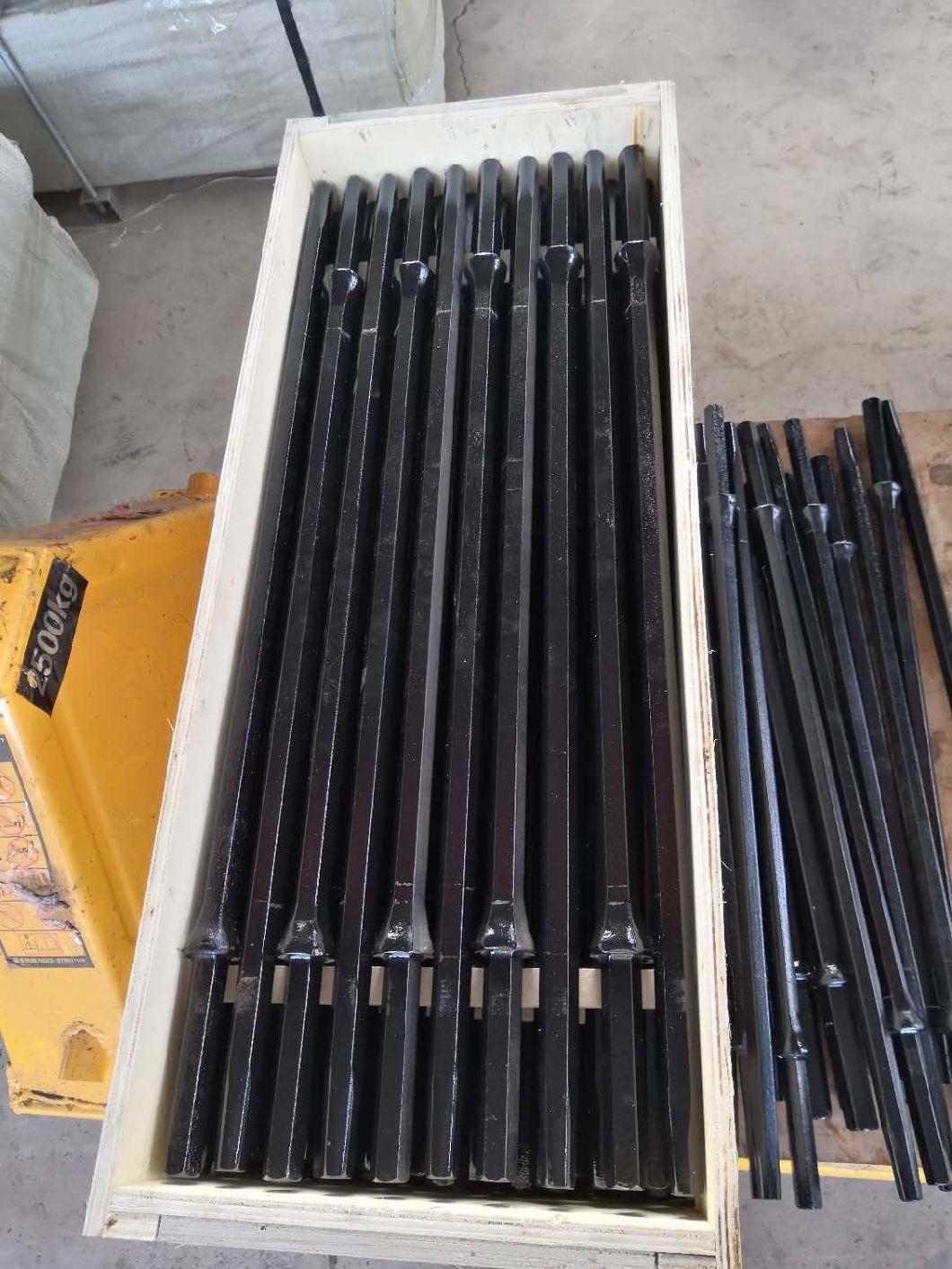

Package: Wrapped with plastic knitting and then into bundles.

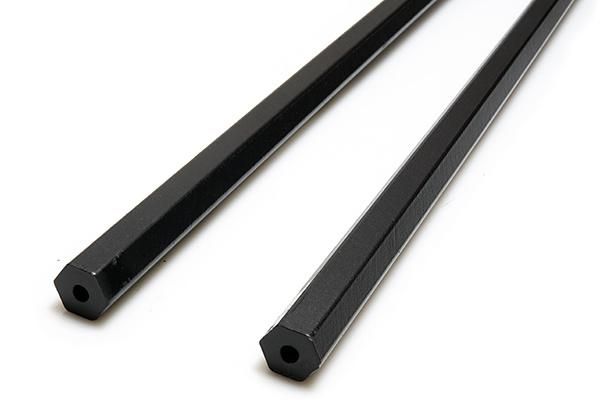

Hot Rolled Hexagonal Hollow Drill Steel

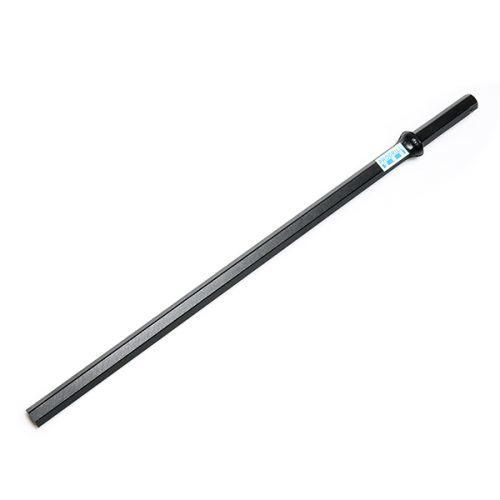

Integral drill steel without tips

This drill steel is widely used in stone quarrying and very popular in India.Its common length as 800mm,1600mm,2400mm and 3200mm.

The chemical composition of the integral drill steel without tips is as below:C:0.9%--1.0%, SI:0.15%--0.4%, MN:0.15%-0.4%, CR:0.8%-1.2%,  MO;0.15%--0.3%,HRC38.5

Integral drill steel without tips,which is widely used in stone quarrying,and very popular in India market.It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure high drilling performance.

Main products:
1-12 inch middle-low/high air pressure DTH hammers & bits Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling Eccentric overburden drilling Equipment Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45,T51, ST58,GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod, Shank adapter, coupling sleeves and all kinds of adapters

Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
