Pmg German Quality Tct Multi-Purpose Universal Drill W Carbide Tip for Metal Wood Concrete Brick Tile Plywood Stone Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：60mm to 200mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Wood Drilling, Metal Drilling, Masonry Drilling
Base Info
- Model NO.：3703
- Carbide Tip Type：Ceratizit Bc05 W Type
- Steel Shaft Type：40cr
- Surface Treatment：Galvanized
- Shank Type：Cylindrical
- Flute Type：H
- Tip Grinding：Diamond Ground Tip
- Welding Type：AVS.(Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Paper Hanger, PVC Bag, Skin Pack, Blister Pack
- Specification：3mm to 12mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000
Description
Basic Info.
Model NO. 3703 Carbide Tip Type Ceratizit Bc05 W Type Steel Shaft Type 40cr Surface Treatment Galvanized Shank Type Cylindrical Flute Type H Tip Grinding Diamond Ground Tip Welding Type AVS.(Automatic Vacuum Soldering) Certificate Pgm Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 3mm to 12mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000Product Description

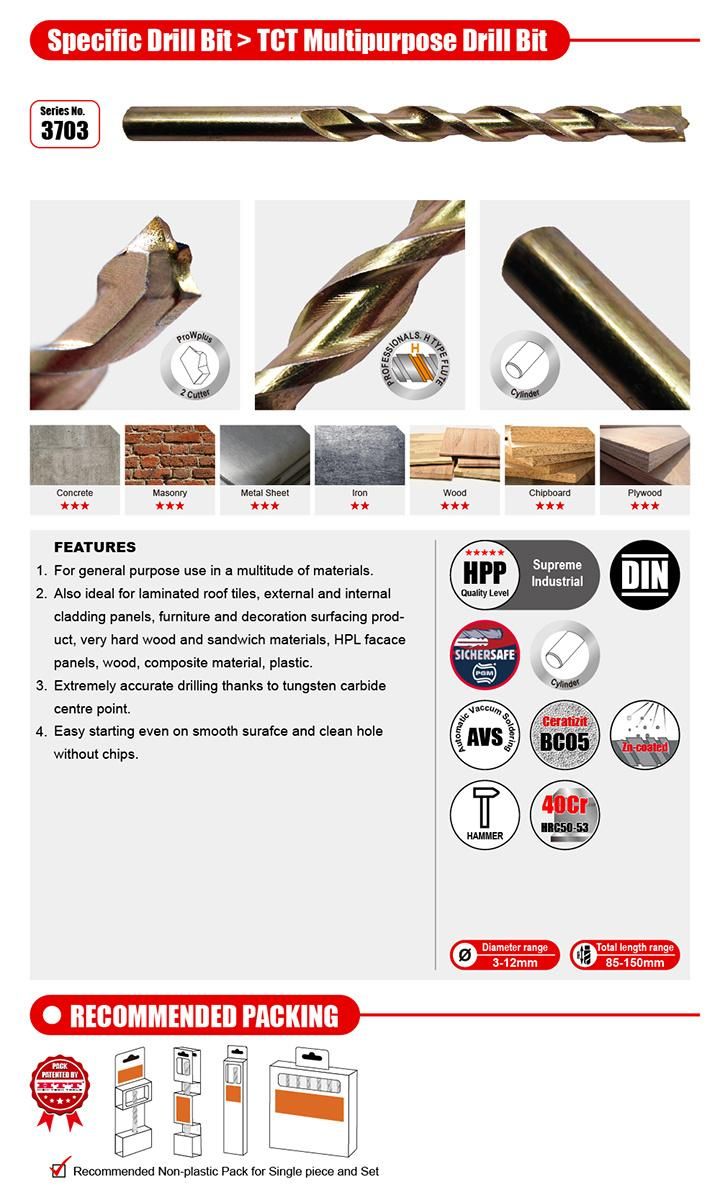

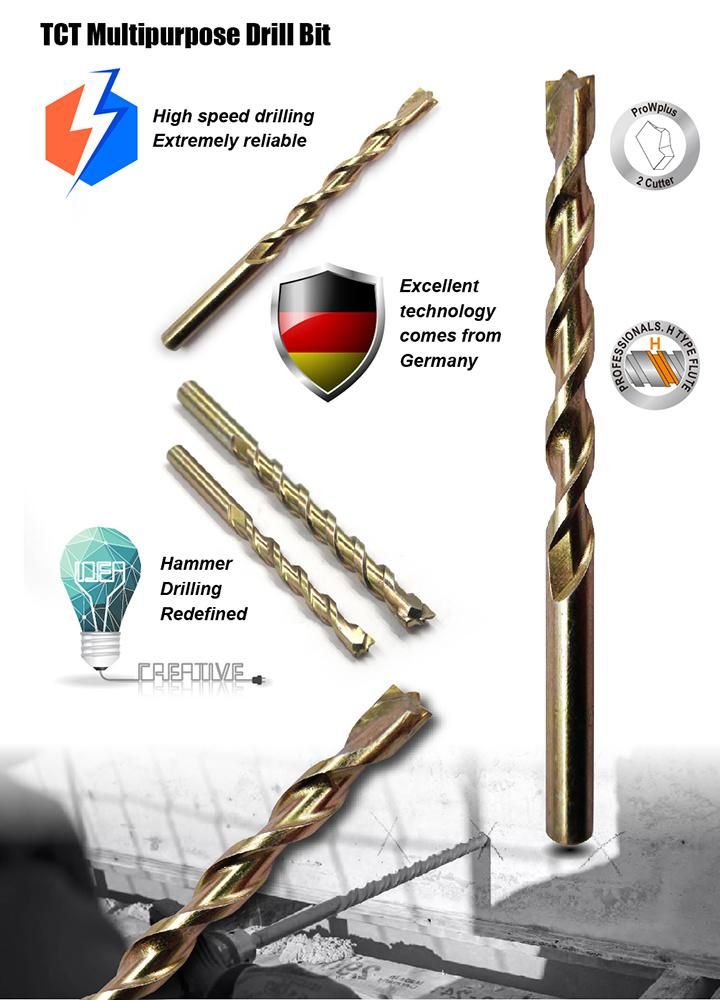

*TCT Universal Drill Bit with Cylindrical shank, Galvanized surface for multi-purpose drilling symbol, Ceratizit BC05 carbide tipped with AVS. technology on Supreme HPP quality performance.*Diamond ground special angle and sharp edges guarantee the cutting performance in the different materials on higher speed and constant stability.
*W shape Carbide tips with point tip are supplied by Ceratizit made in Luxemburg to guarantee higher durability and wear resistance.
*H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special requests.
| tem Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 3703.030085 | 3 | 45 | 85 |
| 3703.040085 | 4 | 45 | 85 |
| 3703.050095 | 5 | 50 | 95 |
| 3703.060100 | 6 | 60 | 100 |
| 3703.065100 | 6.5 | 60 | 100 |
| 3703.080120 | 8 | 80 | 120 |
| 3703.100120 | 10 | 80 | 120 |
| 3703.120150 | 12 | 90 | 150 |
