Pgm German Quality Tct Multipurpose Universal Hammer Drill Compatible SDS Plus Shank for Metal Wood Masonry Stone Tile Granite Marble Plywood Chipboard Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized:Customized
- Standard:DIN
- Length:110mm to 800mm
- Type:Twist Drill Bit
- Material:Tungsten Carbide
- Usage:Wood Drilling, Metal Drilling, Masonry Drilling
Base Info
- Model NO.:2386
- Carbide Tip Type:Ceratizit Bc05
- Steel Shaft Type:35CrMo and 40cr
- Surface Treatment:Color Painted Flute and Polished Shank
- Shank Type:Compatible SDS Plus (D Plus)
- Flute Type:W5
- Tip Grounding:Diamond Ground Tip 4 Face Edges
- Welding Type:AVS. (Automatic Vacuum Soldering)
- Certificate:Pgm
- Transport Package:Clip Hanger, Paper Hanger, PVC Bag, Blister, Tube
- Specification:3mm to 16mm diameter
- Trademark:OEM, HTT
- Origin:China
- HS Code:8207509000
- Production Capacity:2400000
Description
Basic Info.
Model NO. 2386 Carbide Tip Type Ceratizit Bc05 Steel Shaft Type 35CrMo and 40cr Surface Treatment Color Painted Flute and Polished Shank Shank Type Compatible SDS Plus (D Plus) Flute Type W5 Tip Grounding Diamond Ground Tip 4 Face Edges Welding Type AVS. (Automatic Vacuum Soldering) Certificate Pgm Transport Package Clip Hanger, Paper Hanger, PVC Bag, Blister, Tube Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000Product Description

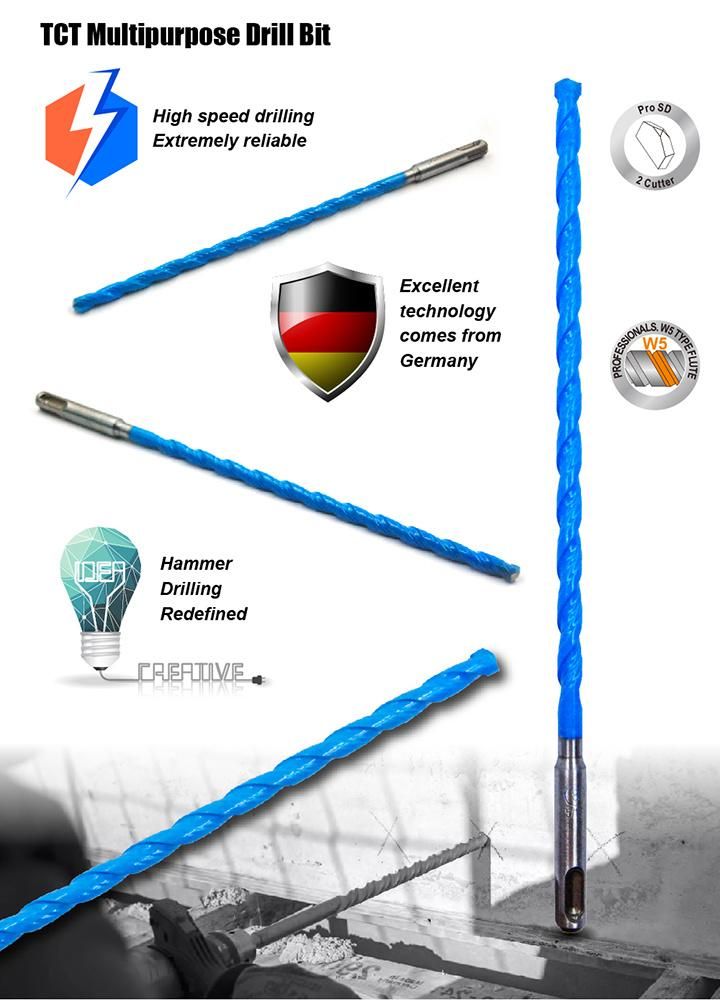

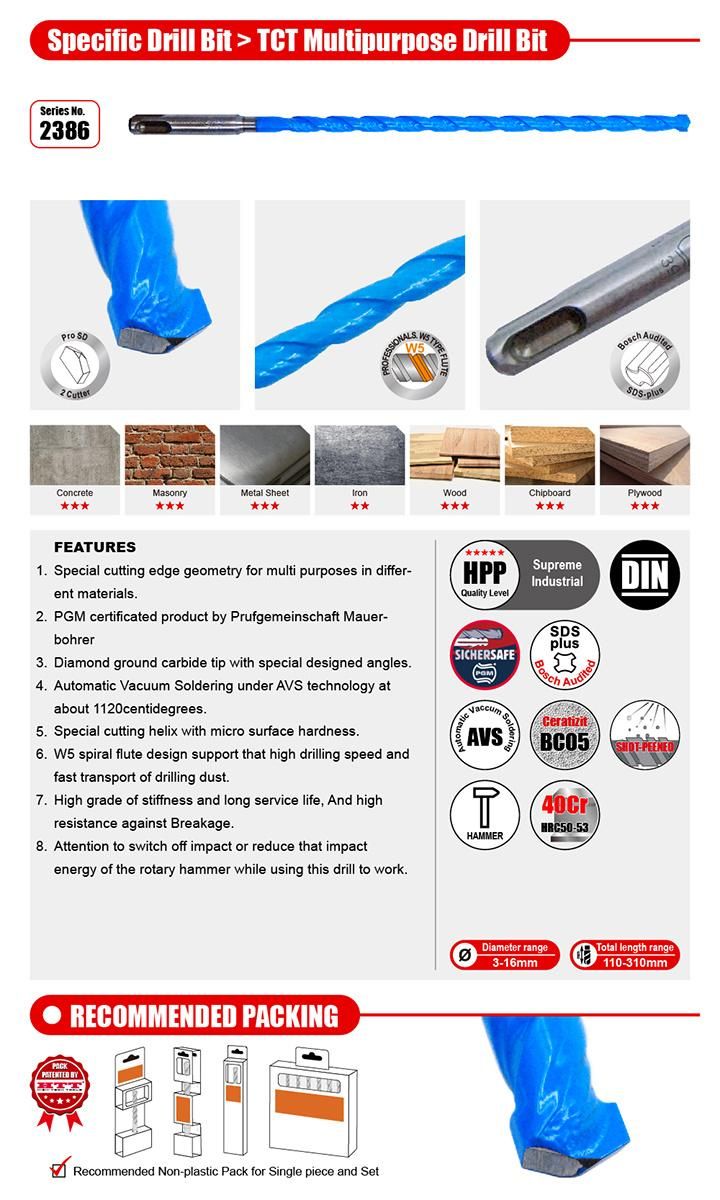

*TCT Universal Drill Bit with Compatible SDS plus shank, color painted(pointed by the customers)for multi-purpose drilling symbol, Ceratizit BC05 carbide tipped with AVS. technology on Supreme HPP quality performance.*Diamond ground special angle and sharp edges guarantee the cutting performance in the different materials on higher speed and constant stability.
*Carbide tips are supplied by Ceratizit made in Luxemburg to guarantee higher durability and wear resistance.
*W5 flute 3D Max. design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job. Compatible SDS plus shank can fit those SDS-plus chucks of the rotary hammer. While drilling, please cancel impact funciton or reduce the impact energy power.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special requests.
Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
2386.040110 | 4 | 60 | 110 |
2386.050110 | 5 | 60 | 110 |
2386.055110 | 5.5 | 60 | 110 |
2386.060110 | 6 | 60 | 110 |
2386.065110 | 6.5 | 60 | 110 |
2386.070110 | 7 | 60 | 110 |
2386.080110 | 8 | 60 | 110 |
2386.090110 | 9 | 60 | 110 |
2386.100110 | 10 | 60 | 110 |
2386.110110 | 11 | 60 | 110 |
2386.040160 | 4 | 110 | 160 |
2386.050160 | 5 | 110 | 160 |
2386.055160 | 5.5 | 110 | 160 |
2386.060160 | 6 | 110 | 160 |
2386.065160 | 6.5 | 110 | 160 |
2386.070160 | 7 | 110 | 160 |
2386.080160 | 8 | 110 | 160 |
2386.090160 | 9 | 110 | 160 |
2386.100160 | 10 | 110 | 160 |
2386.110160 | 11 | 110 | 160 |
2386.120160 | 12 | 110 | 160 |
2386.130160 | 13 | 110 | 160 |
2386.140160 | 14 | 110 | 160 |
2386.160160 | 16 | 110 | 160 |
2386.040180 | 4 | 130 | 180 |
2386.050180 | 5 | 130 | 180 |
2386.055180 | 5.5 | 130 | 180 |
2386.060180 | 6 | 130 | 180 |
2386.065180 | 6.5 | 130 | 180 |
2386.080180 | 8 | 130 | 180 |
2386.100180 | 10 | 130 | 180 |
2386.050210 | 5 | 160 | 210 |
2386.055210 | 5.5 | 160 | 210 |
2386.060210 | 6 | 160 | 210 |
2386.065210 | 6.5 | 160 | 210 |
2386.070210 | 7 | 160 | 210 |
2386.080210 | 8 | 160 | 210 |
2386.090210 | 9 | 160 | 210 |
2386.100210 | 10 | 160 | 210 |
2386.110210 | 11 | 160 | 210 |
2386.120210 | 12 | 160 | 210 |
2386.130210 | 13 | 160 | 210 |
2386.140210 | 14 | 160 | 210 |
2386.160210 | 16 | 160 | 210 |
2386.050260 | 5 | 210 | 260 |
2386.055260 | 5.5 | 210 | 260 |
2386.060260 | 6 | 210 | 260 |
2386.065260 | 6.5 | 210 | 260 |
2386.070260 | 7 | 210 | 260 |
2386.080260 | 8 | 210 | 260 |
2386.090260 | 9 | 210 | 260 |
2386.100260 | 10 | 210 | 260 |
2386.110260 | 11 | 210 | 260 |
2386.120260 | 12 | 210 | 260 |
2386.130260 | 13 | 210 | 260 |
2386.140260 | 14 | 210 | 260 |
2386.160260 | 16 | 210 | 260 |
2386.050310 | 5 | 260 | 310 |
2386.055310 | 5.5 | 260 | 310 |
2386.060310 | 6 | 260 | 310 |
2386.065310 | 6.5 | 260 | 310 |
2386.070310 | 7 | 260 | 310 |
2386.080310 | 8 | 260 | 310 |
2386.090310 | 9 | 260 | 310 |
2386.100310 | 10 | 260 | 310 |
2386.110310 | 11 | 260 | 310 |
2386.120310 | 12 | 260 | 310 |
2386.130310 | 13 | 260 | 310 |
2386.140310 | 14 | 260 | 310 |
2386.160310 | 16 | 260 | 310 |
2386.050350 | 5 | 300 | 350 |
2386.055350 | 5.5 | 300 | 350 |
2386.060350 | 6 | 300 | 350 |
2386.065350 | 6.5 | 300 | 350 |
2386.070350 | 7 | 300 | 350 |
2386.080350 | 8 | 300 | 350 |
2386.090350 | 9 | 300 | 350 |
2386.100350 | 10 | 300 | 350 |
2386.110350 | 11 | 300 | 350 |
2386.120350 | 12 | 300 | 350 |
2386.130350 | 13 | 300 | 350 |
2386.140350 | 14 | 300 | 350 |
2386.160350 | 16 | 300 | 350 |
2386.050410 | 5 | 360 | 410 |
2386.055410 | 5.5 | 360 | 410 |
2386.060410 | 6 | 360 | 410 |
2386.065410 | 6.5 | 360 | 410 |
2386.070410 | 7 | 360 | 410 |
2386.080410 | 8 | 360 | 410 |
2386.090410 | 9 | 360 | 410 |
2386.100410 | 10 | 360 | 410 |
2386.110410 | 11 | 360 | 410 |
2386.120410 | 12 | 360 | 410 |
2386.130410 | 13 | 360 | 410 |
2386.140410 | 14 | 360 | 410 |
2386.160410 | 16 | 360 | 410 |
2386.050460 | 5 | 410 | 460 |
2386.055460 | 5.5 | 410 | 460 |
2386.060460 | 6 | 410 | 460 |
2386.065460 | 6.5 | 410 | 460 |
2386.070460 | 7 | 410 | 460 |
2386.080460 | 8 | 410 | 460 |
2386.090460 | 9 | 410 | 460 |
2386.100460 | 10 | 410 | 460 |
2386.110460 | 11 | 410 | 460 |
2386.120460 | 12 | 400 | 460 |
2386.130460 | 13 | 400 | 460 |
2386.140460 | 14 | 400 | 460 |
2386.160460 | 16 | 400 | 460 |
2386.060550 | 6 | 500 | 550 |
2386.065550 | 6.5 | 500 | 550 |
2386.070550 | 7 | 500 | 550 |
2386.080550 | 8 | 500 | 550 |
2386.090550 | 9 | 500 | 550 |
2386.100550 | 10 | 500 | 550 |
2386.110550 | 11 | 500 | 550 |
2386.120550 | 12 | 500 | 550 |
2386.130550 | 13 | 500 | 550 |
2386.140550 | 14 | 500 | 550 |
2386.160550 | 16 | 500 | 550 |
2386.060600 | 6 | 550 | 600 |
2386.065600 | 6.5 | 550 | 600 |
2386.070600 | 7 | 550 | 600 |
2386.080600 | 8 | 550 | 600 |
2386.090600 | 9 | 550 | 600 |
2386.100600 | 10 | 550 | 600 |
2386.110600 | 11 | 550 | 600 |
2386.120600 | 12 | 550 | 600 |
2386.130600 | 13 | 550 | 600 |
2386.140600 | 14 | 550 | 600 |
2386.160600 | 16 | 550 | 600 |
2386.080800 | 8 | 750 | 800 |
2386.090800 | 9 | 750 | 800 |
2386.100800 | 10 | 750 | 800 |
2386.110800 | 11 | 750 | 800 |
2386.120800 | 12 | 750 | 800 |
2386.130800 | 13 | 750 | 800 |
2386.140800 | 14 | 750 | 800 |
2386.160800 | 16 | 750 | 800 |
