HRC 60 Long Life Carbide Drill End Mills for Metal
Changzhou Hongjian Tools Co., Ltd.- Customized：Customized
- Length：Jobber-length
- Type：Drill End Mill
- Material：Tungsten Carbide
- Usage：Metal Drilling
- Processing Precision：0.003
Base Info
- Model NO.：Carbide Drill End Mills
- Condition：New
- Control Method：Closed-Loop Control
- Numerical Control：CNC,Mnc
- Diameter：4-20mm
- Application：Metal
- Movement Method：Contour Control
- Process Usage：Metal-Cutting CNC Machine Tools
- Performance Classification：High-End CNC Machine Tools
- Transport Package：1PC in a Plastic Tube, 10PCS a Group
- Specification：SGS
- Trademark：Hiboo
- Origin：Changzhou Jiangsu China
- HS Code：8207709000
- Production Capacity：50000PCS,Month
Description
Basic Info.
Model NO. Carbide Drill End Mills Condition New Control Method Closed-Loop Control Numerical Control CNC/Mnc Diameter 4-20mm Application Metal Movement Method Contour Control Process Usage Metal-Cutting CNC Machine Tools Performance Classification High-End CNC Machine Tools Transport Package 1PC in a Plastic Tube, 10PCS a Group Specification SGS Trademark Hiboo Origin Changzhou Jiangsu China HS Code 8207709000 Production Capacity 50000PCS/MonthProduct Description

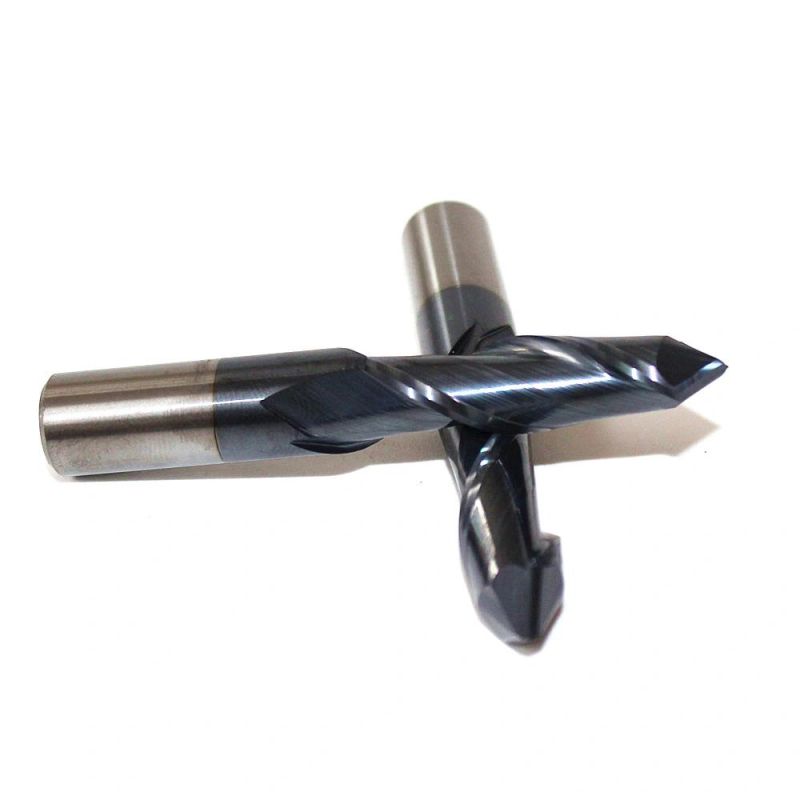

High speed carbide drill end mills
1. Raw Material
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 | Sandvik H10F |
| Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 | Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 | Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 | Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2 |
2.Super Coating
| AlTiN | TiAIN | TiSiN | Nano | |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
3. Super ANCA,Walter Grinding Machine
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. The following Specification for your refer, We also provide the OEM or ODM servic
| (Order No) | Cutting | Flute | Shank | A.0.L |
| HJ3*16*4D*50L | 3 | 16 | 4 | 50 |
| HJ3.5*20*5D*50L | 3.5 | 20 | 5 | 50 |
| HJ4*22*6D*50L | 4 | 22 | 6 | 50 |
| HJ4.5*24*7D*70L | 4.5 | 24 | 7 | 70 |
| HJ5*26*8D*70L | 5 | 26 | 8 | 70 |
| HJ5.5*28*9D*70L | 5.5 | 28 | 9 | 70 |
| HJ6*28*10D*70L | 6 | 28 | 10 | 70 |
| HJ6.5*30*11D*75L | 6.5 | 30 | 11 | 75 |
| HJ7*30*12D*75L | 7 | 30 | 12 | 75 |
| HJ7.5*30*14D*75L | 7.5 | 30 | 13 | 75 |
| HJ8*30*14D*75L | 8 | 30 | 14 | 75 |
| HJ8.5*35*15D*90L | 8.5 | 35 | 15 | 90 |
| HJ9*40*16D*90L | 9 | 40 | 16 | 90 |
| HJ9.5*40*17D*90L | 9.5 | 40 | 17 | 90 |
| HJ10*40*18D*90L | 10 | 40 | 18 | 90 |
| HJ11*40*19D*100L | 11 | 40 | 19 | 100 |
| HJ13*45*20D*100L | 13 | 45 | 20 | 100 |
6. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
7. Payment Term
T/T ,Western Union , MoneyGram,L/C
8.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest
