• Model NO.：64mm, 76mm, 89mm, 102mm, 127mm
• Certificate：ISO2000
• Processing Type：Forging
• Mining Object：Coal Machinery

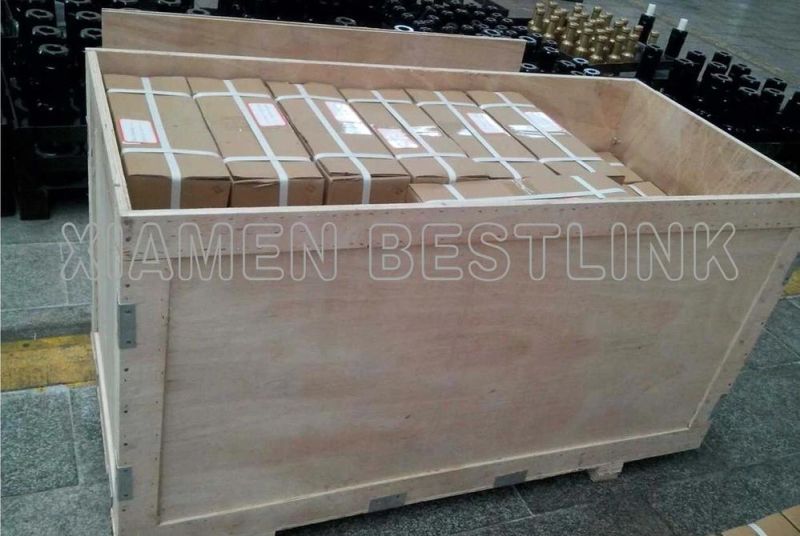

• Transport Package：Plywood Box or Carton
• Specification：as per order quantity
• Trademark：none
• Origin：China
• HS Code：82071990
• Production Capacity：20000PCS Per Month

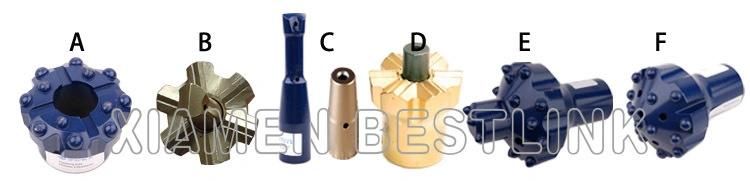

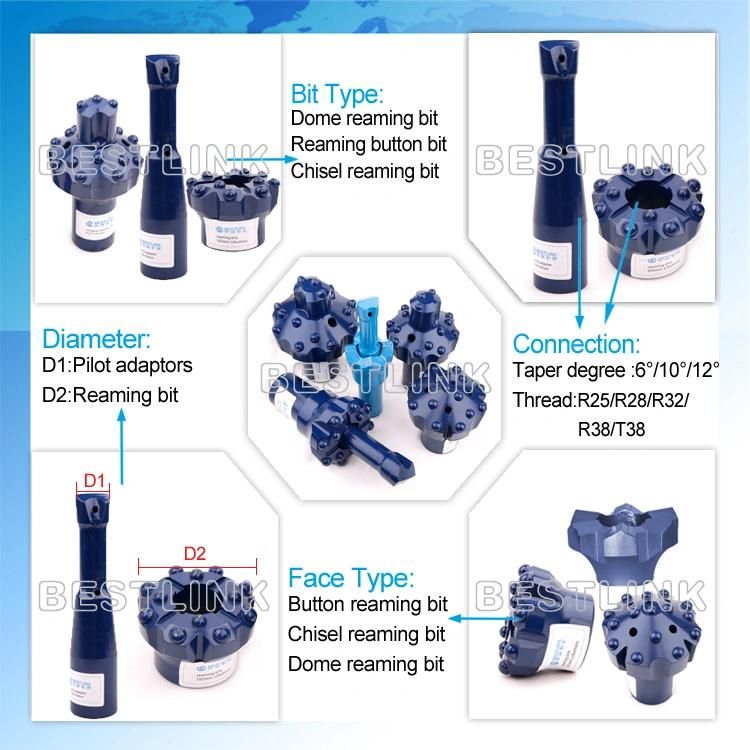

Specification: Bit type:Dome bit / Reaming bitsConnection Angle:6 / 10 / 12  degreeDiameter of Pilot adaptors:26 / 28 / 35 / 40 mm etcDiameter of reaming button bits:60 / 64 / 70 / 76 / 80 / 89 / 102 / 127 / 150Thread type:R25 / R28 / R32 / R38 PIC.ModelDia.Gauge buttonfront buttonTaper degreeproducts no.A6° Taper reaming button bits (shperic or parabolic buttons)648*Φ9mm2*Φ10mm6°KTQ1264-6-1648*Φ9mm4*Φ8mm6°KTQ1264-6-2658*Φ9mm4*Φ8mm6°KTQ1265-6768*Φ10mm4*Φ10mm6°KTQ1276-6-1768*Φ10mm4*Φ9mm6°KTQ1276-6-2768*Φ11mm2*Φ11mm6°KTQ1276-6-3'767*Φ11mm4*Φ11mm6°KTQ1176-6-3''768*Φ14mm4*Φ13mm6°KTQ1276-6-4898*Φ12mm4*Φ12mm6°KTQ1289-6-1898*Φ12mm4*Φ11mm6°KTQ1289-6-2898*Φ12mm4*Φ10mm6°KTQ1289-6-3898*Φ13mm4*Φ10mm6°KTQ1289-6-4898*Φ12mm4*Φ11mm6°KTQ1289-6-51028*Φ14mm4*Φ12mm6°KTQ12102-612° Taper reaming button bits (shperic or parabolic buttons)898*Φ12mm4*Φ10mm12°KZQ1289-121028*Φ12mm4*Φ12mm12°KZQ12102-12-11028*Φ14mm4*Φ12mm12°KZQ12102-12-212710*Φ13mm8*Φ13mm12°KZQ18127-12-112710*Φ13mm10*Φ13mm12°KZQ18127-12-2B6° Taper chisel reaming bits60carbide:12*8mm (4pcs)6°KTS460-664KTS464-665KTS465-670KTS470-676carbide:12*10mm (4pcs)KTS476-680KTS480-689KTS489-610° Taper chisel reaming bits70carbide:12*8mm (6pcs)10°KTS670-1075KTS675-1080KTS680-1090KTS690-10100carbide:12*10mm (6pcs)KTS6100-10120KTS6120-10CPilot adaptors 6°chisel:Φ26/28*12*8mmL=240/300mm,thread:R25/28/32*12.7mm,6°Pilot adaptors 12°chisel:Φ35/40*15*10mmL=250mm,thread:R25/28/32*12.7mm,12°DThread chisel reaming bits60carbide:12*8mm (4pcs)RF25KTS460-25RF70KTS470-25RF80carbide:12*10mm (6pcs)RF32KTS680-32RF90KTS690-32RF100KTS6100-32RF120KTS6120-32RF130RF38KTS6130-38RF150KTS6150-38RFEIntegral reaming button bits8912*Φ11mm2*Φ11mm+1*Φ10mmR32/R38*12.7KZQ8910212*Φ12mm2*Φ12mm+1*Φ10mmR32/R38*12.7KZQ102-110212*Φ14mm2*Φ10mm+1*Φ10mmR32/R38*12.7KZQ102-21278*Φ14mm8*Φ12mm+2*Φ12mmR38*12.7KZQ127FDome reaming bit (shperic or parabolic buttons)769*Φ13mm1*Φ13mmR32/T38/T45DFR768914*Φ13mm1*Φ13mmR32/T38/T45DFR8910216*Φ13mm1*Φ13mmR32/T38/T45DFR10212718*Φ13mm1*Φ13mmR32/T38/T45DFR12715218*Φ14mm2*Φ14mmT45/T51/ST58/ST68DFR152-11529*Φ16mm6*Φ16mmST58/ST68DFR152-2
The information you may like to know before order:

1. Methods of Payment:
  T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
  Based on order quantity, normally it takes 25 days for production.
  Only 2 or 3 days if we have stock on your request size.
3. Shipping way
  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
  Bulk order: we suggest by air or by sea.
4. Quality Control
  We have our own experienced QC.
  There will be strict inspection and testing for every order before shipping out.
5. After Services:
  1. Our sales team will response for your question within 24 hours (Holidays Excluded)
  2. Technical Support will be available in any time
  3. Free replacement will provide once the failure confirmed caused by our product quality
