• Model NO.：MX4044 MX4550 MX5053 MX5456
• Power Type：Drill
• Color：Blue
• Function：New
• Gross Weight：3-8kgs
• Shape：Flat or Concave or Convex
• Mining Object：Coal Machinery
• Transport Package：Carton
• Specification：CE
• Trademark：Bestlink
• Origin：China
• HS Code：82071990
• Production Capacity：5000000PCS Per Year

Basic Info.

Model NO. MX4044 MX4550 MX5053 MX5456 Power Type Drill Color Blue Function New Gross Weight 3-8kgs Shape Flat or Concave or Convex Mining Object Coal Machinery Transport Package Carton Specification CE Trademark Bestlink Origin China HS Code 82071990 Production Capacity 5000000PCS Per Year

Product Description

MX4044 MX4550 MX5053 MX5456 RC Hammer Bits
RC hammer specifications:

Hammer Model	Hole Range (mm)	External Diameter (mm)	Length  (without bit) mm	Connection Thread	Working Pressure
RE531	84-100	81	1069	3" Remet	1.0-3.0Mpa
RE004	111-127	107	1252	3.5-4" Remet  4" Metzke	1.0-3.0Mpa
RE542	113-130	109.5	1191	3.5-4" Remet  4" Metzke	1.0-3.0Mpa
RE543	120-135	116	1191	3.5-4 Remet  4" Metzke	1.0-3.0Mpa
RE545	122-135	117.5	1261	4-4.5" Remet  4-4.5" Metzke	1.5-3.5Mpa
RE547	130-146	124.5	1270	4.5" Remet  4.5" Metzke	1.5-3.5Mpa
PR40	124-142	120.5	1362	3.5-4.5" Remet  3.5-4.5" Metzke	1.5-3.5Mpa
PR52	126-142	121	1227	4-4.5" Remet  4-4.5" Metzke	1.5-3.5Mpa
PR52R	130-146	124	1225	4-4.5" Remet  4-4.5" Metzke	1.5-3.5Mpa
PR54	135-150	130	1294	4.5" Remet  4.5" Metzke	1.5-3.5Mpa
MX5456	136-150	132	1362	4.5" Remet  4.5" Metzke	1.5-3.5Mpa
RC62/RC62R	152-190	146	1320	As Request	1.5-3.5Mpa
RC82/RC82R	190-250	180	1395	As Request	1.5-3.5Mpa
RC100/RC100R	250-370	240	1528	As Request	1.5-3.5Mpa

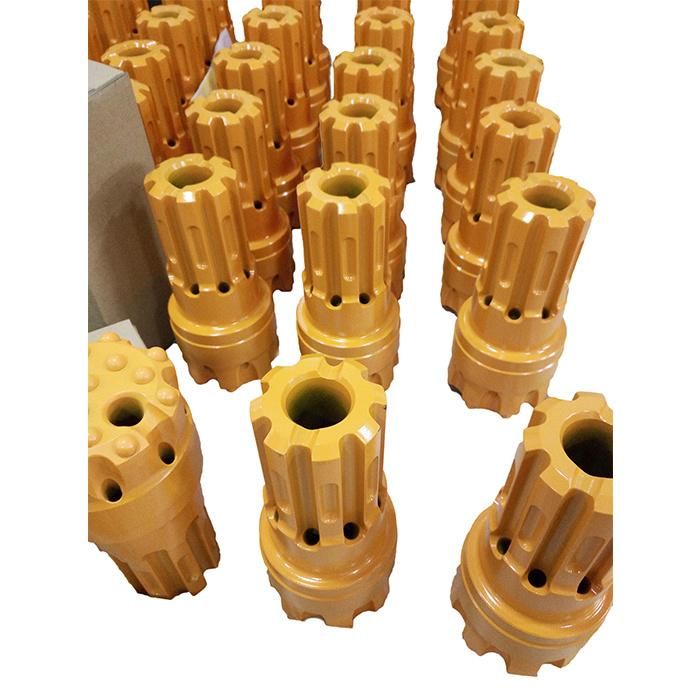

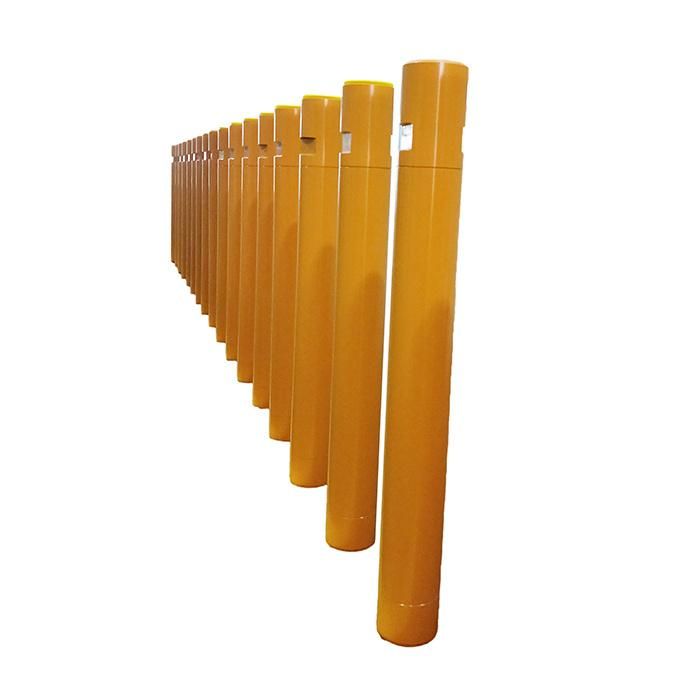

RC hammer and bits:

1). 4'' RC hammers and bits: RE004/RE004R;

2) 4.5" RC hammers and bits:RE542, RE543

3). 5'' RC hammers and bits:RE545,PR40,

4) 5.5'' RC hammers and bits:PR52,PR54,RE547

Connection thread specifaction:

1). Remet series: 3 1/2'',4'' ,4 1/2'' ;

2). Metzke series: 3 1/2", 4'', 4 1/2'' ;




Pictures:
