China High Quality Tungsten Solid Carbide Drill Milling Cutter
Changzhou Hongjian Tools Co., Ltd.- Customized：Customized
- Standard：SGS
- Length：Customer
- Type：Center Drill Bit
- Material：Tungsten Carbide
- Usage：Wood Drilling, Well Drilling, PCB Drilling, Metal Drilling
Base Info
- Model NO.：Tungsten Solid Carbide Drill
- Top Angle：118-140 Degree
- Work Piece：HRC 45, 50, 60, 65
- Suitable for：Carbon Steel
- Application：CNC Process
- Controlling Mode：CNC Tooling System
- Precision：High Precision
- End Mill Flute Diameter：D0.5-D30mm
- Transport Package：1PC in a Plastic Tube, 10PCS a Group
- Specification：Customers Requirements
- Trademark：Hiboo
- Origin：Changzhou Jiangsu China
- HS Code：8207709000
- Production Capacity：50000PCS,Mouth
Description
Basic Info.
Model NO. Tungsten Solid Carbide Drill Top Angle 118-140 Degree Work Piece HRC 45, 50, 60, 65 Suitable for Carbon Steel Application CNC Process Controlling Mode CNC Tooling System Precision High Precision End Mill Flute Diameter D0.5-D30mm Transport Package 1PC in a Plastic Tube, 10PCS a Group Specification Customers Requirements Trademark Hiboo Origin Changzhou Jiangsu China HS Code 8207709000 Production Capacity 50000PCS/MouthProduct Description

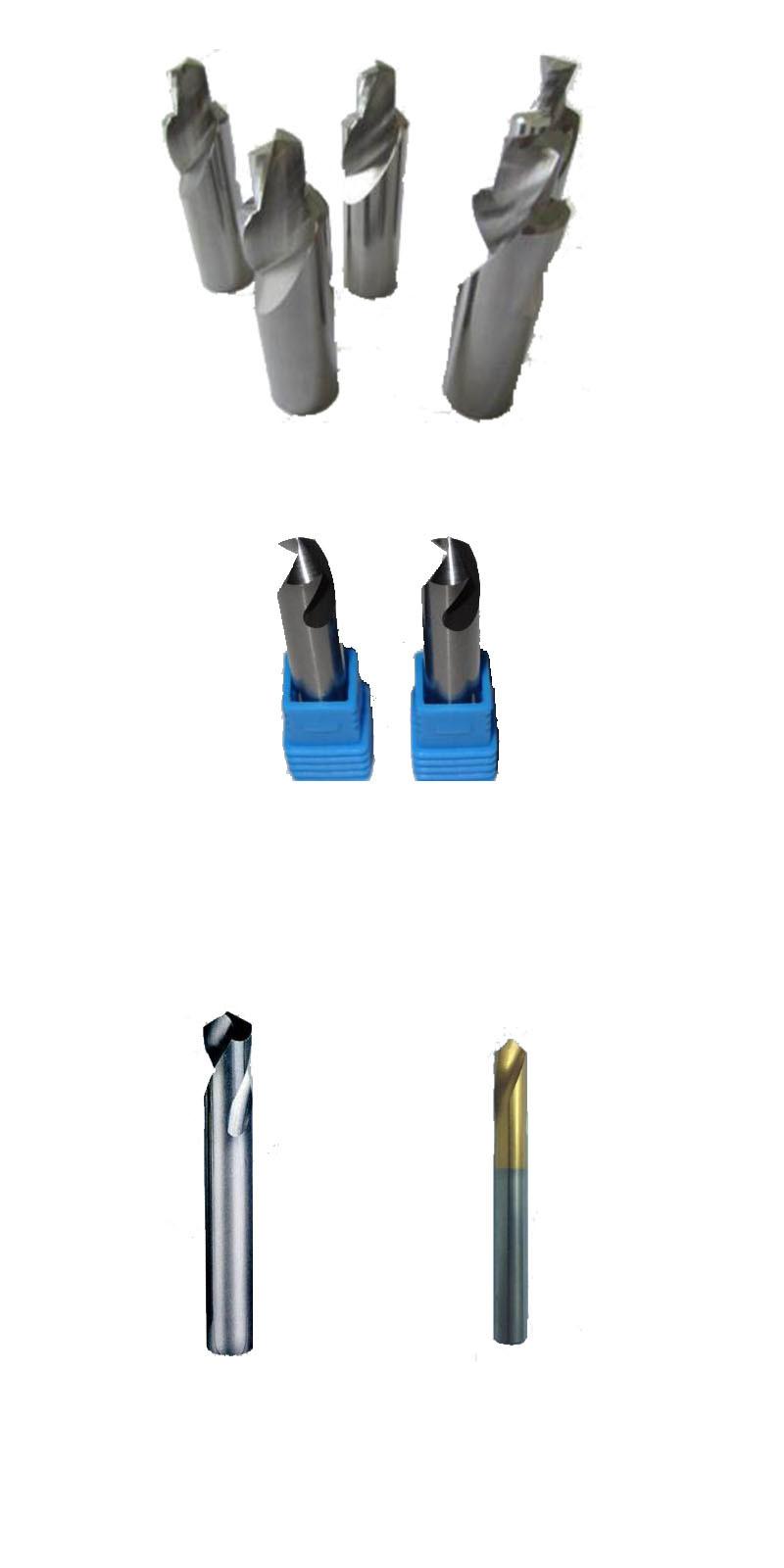

Product DescriptionHigh Performance Carbide Drill bits.
·more stabilized
·excisive sharpness
·good quality of tungsten carbide
·all kinds of drilling tools, straight groove drill, reamer drill, center drill, fixed point drill and so on.
Application Field
40°Suggest Cutting:Wood,Fiber board,Aluminum,Copper,Iron,Ordinary steel.
45°Suggest Cutting:Aluminum,Copper,Iron,Ordinary Steel,Hard Steel,Stainless Steel.
50°Suggest Cutting:Aluminum,Copper,Iron,Ordinary Steel,Heat Resistant Steel,Stainless Steel,Ti Alloy.
55°Suggest Cutting:Ordinary Steel,Hard Steel, Heat Resistant Steel,Stainless Steel,Ti Alloy.
60°Suggest Cutting:Stainless Steel,Ti Alloy,Hardened Steel,Heat Resistant Steel,Quenched and tempered steel.
The following Specification for your refer, We also provide the OEM or ODM servic.
| (Order No) | Cutting | Flute | Shank | A.0.L |
| HJ3*16*4D*50L | 3 | 16 | 4 | 50 |
| HJ3.5*20*5D*50L | 3.5 | 20 | 5 | 50 |
| HJ4*22*6D*50L | 4 | 22 | 6 | 50 |
| HJ4.5*24*7D*70L | 4.5 | 24 | 7 | 70 |
| HJ5*26*8D*70L | 5 | 26 | 8 | 70 |
| HJ5.5*28*9D*70L | 5.5 | 28 | 9 | 70 |
| HJ6*28*10D*70L | 6 | 28 | 10 | 70 |
| HJ6.5*30*11D*75L | 6.5 | 30 | 11 | 75 |
| HJ7*30*12D*75L | 7 | 30 | 12 | 75 |
| HJ7.5*30*14D*75L | 7.5 | 30 | 13 | 75 |
| HJ8*30*14D*75L | 8 | 30 | 14 | 75 |
| HJ8.5*35*15D*90L | 8.5 | 35 | 15 | 90 |
| HJ9*40*16D*90L | 9 | 40 | 16 | 90 |
| HJ9.5*40*17D*90L | 9.5 | 40 | 17 | 90 |
| HJ10*40*18D*90L | 10 | 40 | 18 | 90 |
| HJ11*40*19D*100L | 11 | 40 | 19 | 100 |
| HJ13*45*20D*100L | 13 | 45 | 20 | 100 |
