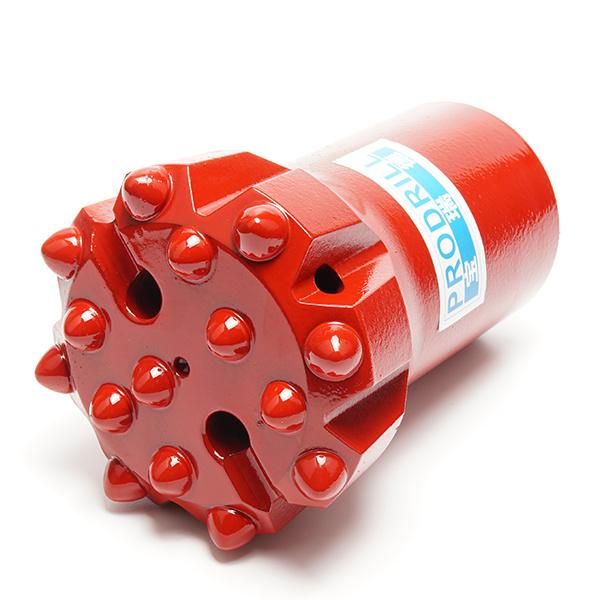

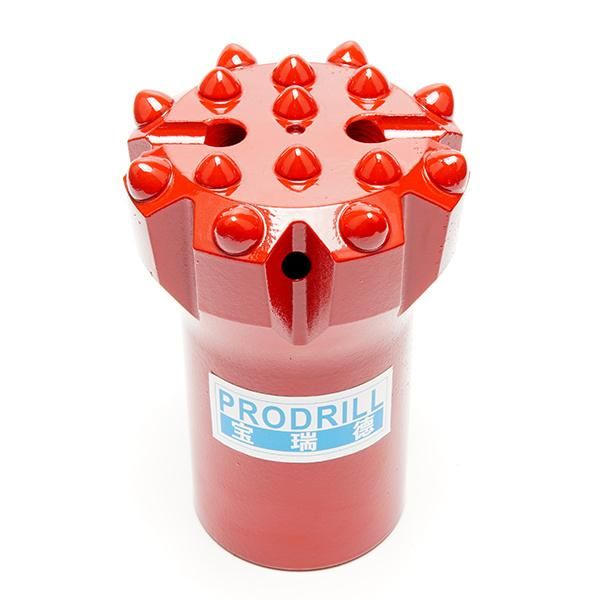

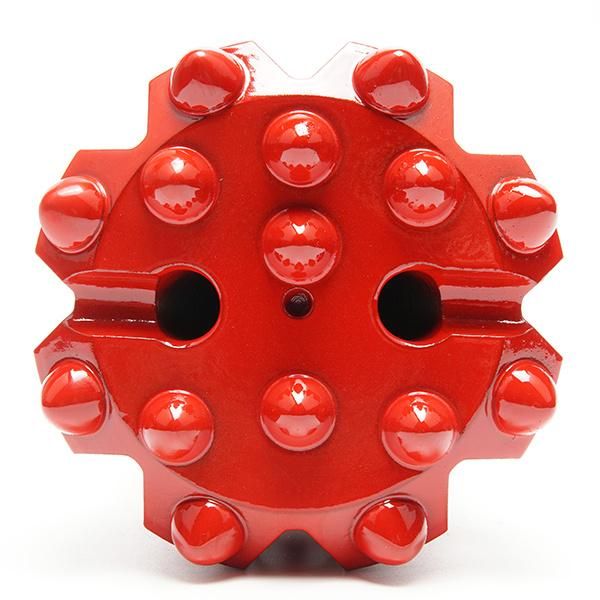

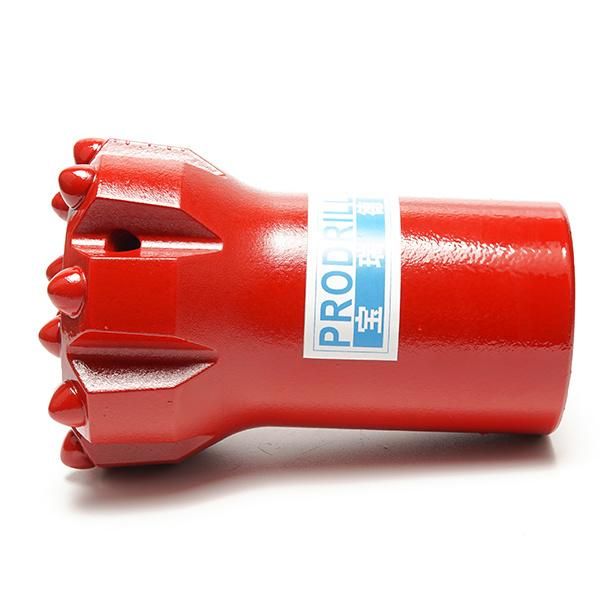

130mm Lower Drilling Costs Reverse Circulation Bit

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Type：Drilling Tools
  • Material：Tungsten Carbide
  • Usage：Well Drilling
  • Model：Re546 Ad117, Re547 Ad114
  • Size：124, 127, 130, 133, 137, 140, 143mm
  • Gauge Carbides：8*9,16′′, 8*5,8′′

Base Info

  • Model NO.：Reverse Circulation Bit 130
  • Face Carbides：8*1,2", 8*9,16′′, 4*5,8′′&4*9,16′′
  • Weight(Kg)：11.8, 12, 12.2, 12.4, 14.8, 15, 15.3, 15.5
  • Shank Type：HRC Range
  • RC Drilling Hammer Size：4", 5", 6"
  • RC Drilling Hole Diameter：114-190 Mm
  • Transport Package：Wooden Box.
  • Specification：SGS, CE
  • Trademark：Prodrill
  • Origin：China
  • HS Code：82071990
  • Production Capacity：1000 Sets,Month

Description

ModelSizeGauge CarbideFace CarbidesWeight mminches  kgLbsRE545 AD1171244-7/8"8*9/16"8*1/2"11.826.11275"8*9/16"8*9/16"1226.51305-1/8"8*9/16"8*9/16"12.226.91335-1/4"8*5/8"8*9/16"12.226.91375-3/8"8*5/8"4*5/8"&4*9/16"12.427.41405-1/2"8*5/18"4*5/8"&4*9/16"12.527.6RE547 AD1241335-1/4"8*5/8"4*5/8"&4*9/16"14.8331375-3/8"8*5/8"4*5/8"&4*9/16"1533.21405-1/2"8*5/8"4*5/8"&5*9/16"15.333.81435-5/8"8*5/8"4*5/8"&5*9/16"15.534.11465-3/4"8*5/8"4*5/8"&6*9/16"15.734.7
