Yg8 14*16*6.0mm Mine Drill Bits Tungsten Carbide Tortoise Back Tips

Zhuzhou Up Cemented Carbide Co., Ltd.
  • Customized:Non-Customized
  • Standard:JIS
  • Length:Taper-length
  • Type:Core Drill Bit
  • Material:Tungsten Carbide
  • Usage:Well Drilling, Masonry Drilling

Base Info

  • Model NO.:YG8 14*16*6.0mm
  • Thickness:6.0mm
  • Width:14mm
  • Grade:Yg8
  • Grain Sizes:1.0~1.2um
  • Density:14.8g,cm3
  • Hardness:89.5hra
  • T.R.S:2560MPa
  • Co:8%
  • Wc:92%
  • Transport Package:25kg. Carton
  • Specification:YG8 14*16*6.0mm
  • Trademark:ZZUP
  • Origin:Zhuzhou, Hunan, China
  • HS Code:820900100
  • Production Capacity:10000kg,Month

Description

Grade



Density

(g/cm3)

T.R.S

( MPa)

Hardness

(HRA)

        Application recommended

                          YG6

             14.95

       ≥1900

                            ≥90.5

For coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits,used in geological prospecting,coal mining and oil well boring.

YG8

14.80

≥2200

≥89.5

Used as a core drill, electric coal drill, coal cutter tooth, oil roller bit and scraper button bit.

YG8C

14.80

≥2400

≥88.5

Mainly used for small and medium-sized drill bit tooth, and as a rotating exploration drill bush.

YG11C

14.40

≥2700

≥86.5

Most used in the drill bit and rock bit used for cutting high hardness materials ball tooth.

YG13C

14.2

≥2850

≥86.5

mainly used for rotary drill bit used for cutting high hardness materials in ball mill.

YG15C

14.0

≥3000

≥85.5

Used in oil cone bit and soft in the hard rock digging cutting tools.

YK05

14.8

≥2500

≥90.5

Mostly used as the buttons of small and mediumsized bits to cut soft and medium hard formations

YK15

14.6

≥2450

≥87.6

Suitable to strips,conical buttons for rotary percussion-resistant geological prospecting buttons,cut soft and medium hard formations.

YK20

14.4

≥2500

≥86.8

Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations,

YK25

14.4

≥2550

≥87.2

Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard,hard,and very hard formations.

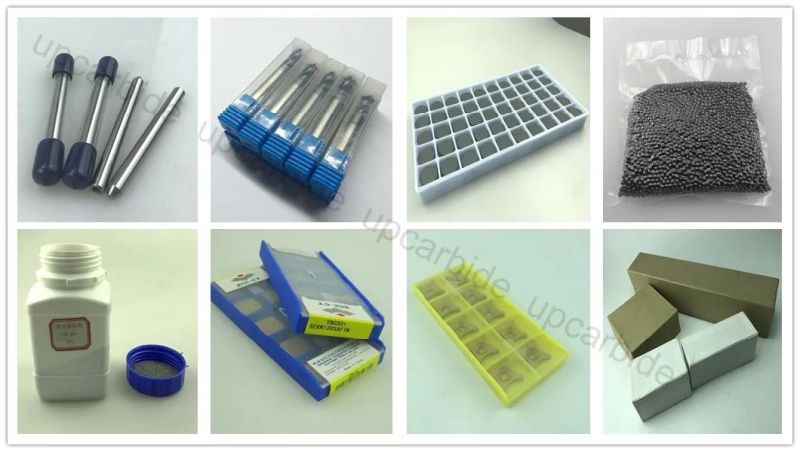

Packing details
Yg8 14*16*6.0mm Mine Drill Bits Tungsten Carbide Tortoise Back Tips





Shipping ways

Yg8 14*16*6.0mm Mine Drill Bits Tungsten Carbide Tortoise Back Tips

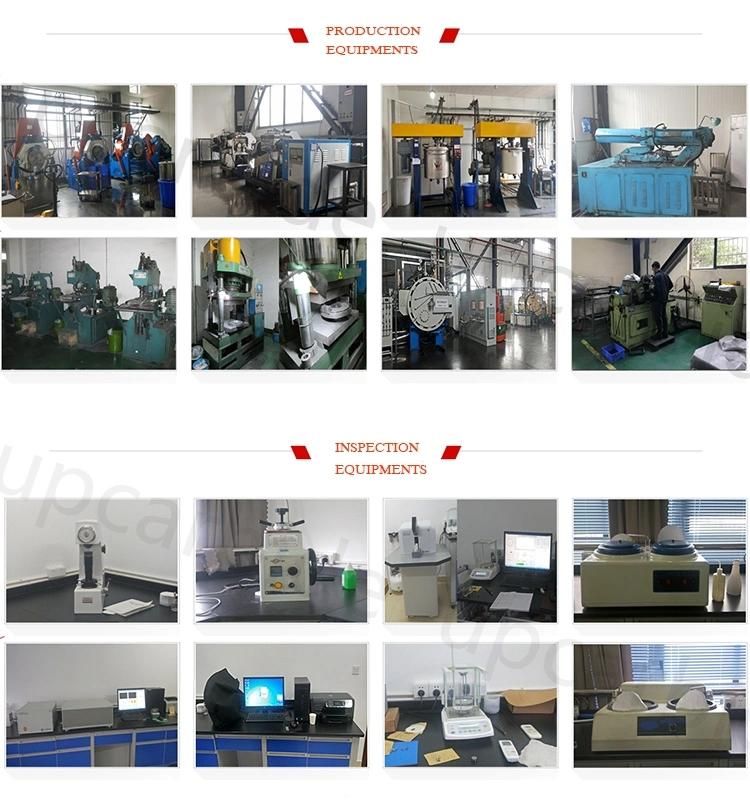

Production process

Yg8 14*16*6.0mm Mine Drill Bits Tungsten Carbide Tortoise Back Tips




Contact details

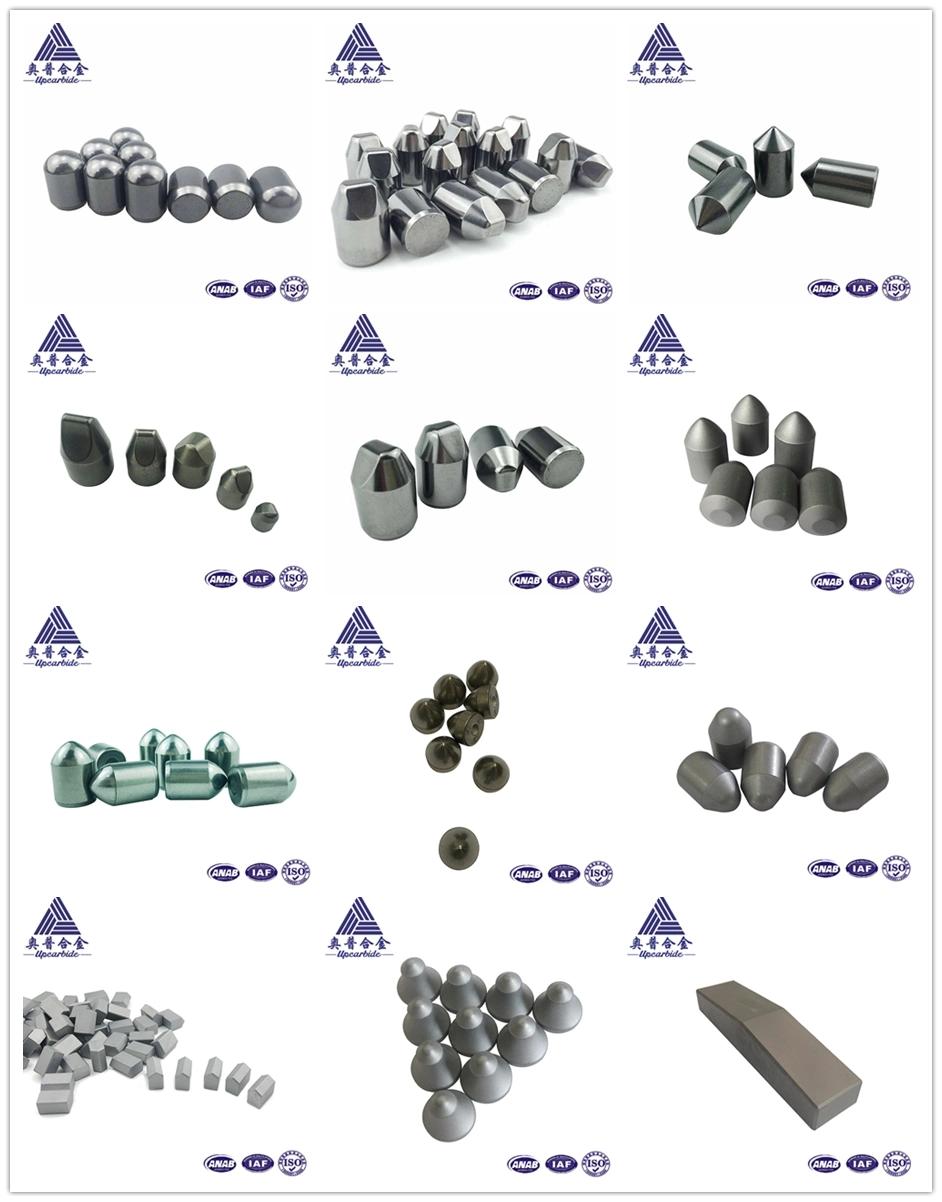

Series of buttons
Yg8 14*16*6.0mm Mine Drill Bits Tungsten Carbide Tortoise Back Tips
