Pneumatic Drilling Machine Zk19 Air Rail Track Drill Equipment
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Customized:Customized
- Standard:Ce
- Length:Standard
- Type:Air Rail Drill
- Material:Standard
- Usage:Well Drilling, Mining Drill
Base Info
- Model NO.:ZK19
- Working Pressure:0.4-0.63MPa
- Rated Speed:165r,Min
- Rated Torque:35,N,M
- The Maximum Torque:>60n,M
- The Idle Speed:>330,R,Min
- Rated Power:0.66kw
- Turn The Gas Consumption:1.98m3,Min
- Noise:<118dB(a)
- Transport Package:Standard Export Package
- Specification:SGS, ISO, CE
- Trademark:china coal
- Origin:Shandong Provice, China
- HS Code:73021000
- Production Capacity:5000 Sets Per Month
Description
Basic Info.
Model NO. ZK19 Working Pressure 0.4-0.63MPa Rated Speed 165r/Min Rated Torque 35,N/M The Maximum Torque >60n/M The Idle Speed >330,R/Min Rated Power 0.66kw Turn The Gas Consumption 1.98m3/Min Noise <118dB(a) Transport Package Standard Export Package Specification SGS, ISO, CE Trademark china coal Origin Shandong Provice, China HS Code 73021000 Production Capacity 5000 Sets Per MonthProduct Description
Introduction of Pneumatic Drilling Machine Zk19 Air Rail Track Drill EquipmentPneumatic Drilling Machine Zk19 Air Rail Track Drill Equipment suitable for drilling in coal mine track laying track or splint, and compared human hand pulling drill can greatly improve the efficacy and reduce the labor intensity of workers, and is safe and reliable, the operation is convenient and the positioning is accurate. Can also be used for metal, nonmetallic materials on drilling, reaming, tapping, etc.
Operation Method of Pneumatic Drilling Machine Zk19 Air Rail Track Drill Equipment
gas source is connected, such as gas source is activated when a stable job. ZK19 rail drill adopts pneumatic way of working, to avoid the spark generation, can be used to downhole safety.
Track drill using places: suitable for coal mine underground rail inoue drilling work.
Features of Pneumatic Drilling Machine Zk19 Air Rail Track Drill Equipment
high efficiency, accurate positioning,
reduce labor intensity of labor,
high safety coefficient,
simple operation of pneumatic drill the tracks:
vane type main engine, gearbox, feed mechanism, reversing valve, etc.
Parameter of Pneumatic Drilling Machine Zk19 Air Rail Track Drill Equipment
Working pressure | 0.4-0.63MPa |
Rated speed | 165r/min |
Rated torque | 35,N/m |
The maximum torque | >60N/m |
The idle speed | >330,r/min |
Rated power | 0.66Kw |
Turn the gas consumption | 1.98m3/min |
Noise | <118dB(A) |
Weight | 5.8,Kg |
Tube diameter | 16mm |
Brand | China Coal |
Packing Details | carton box, plastic bags, wooden cases or as your requirement |
Delivery Time | 5-10 days after your payment |
Payment Terms | TT, Western Union and Paypal |
Supply Ability | 1000 sets per month |
Minimum Order Quantity | 1 set |
Price Terms | FOB |
Port | Qingdao,Ningbo,Shanghai,Shenzhen |

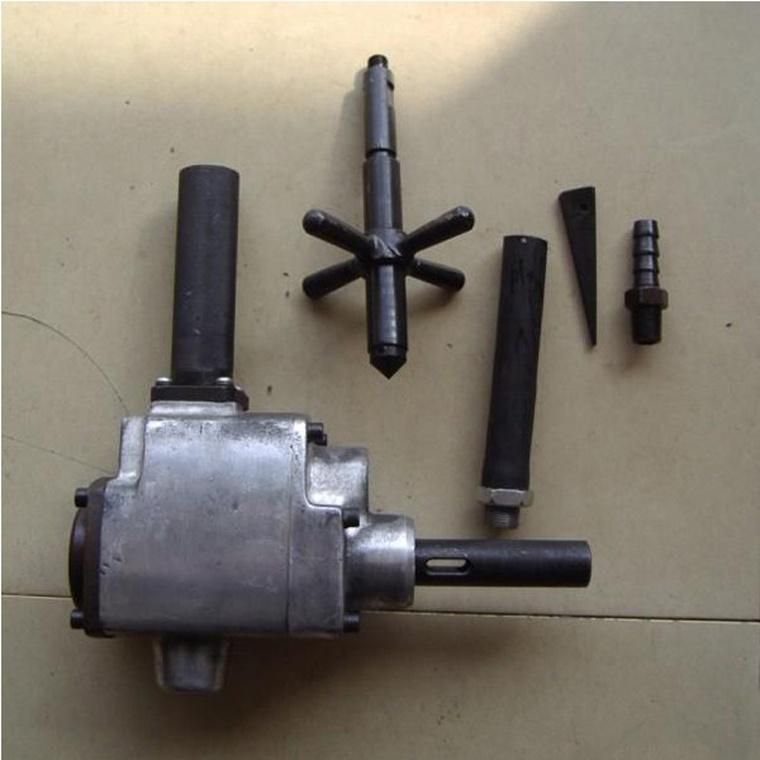

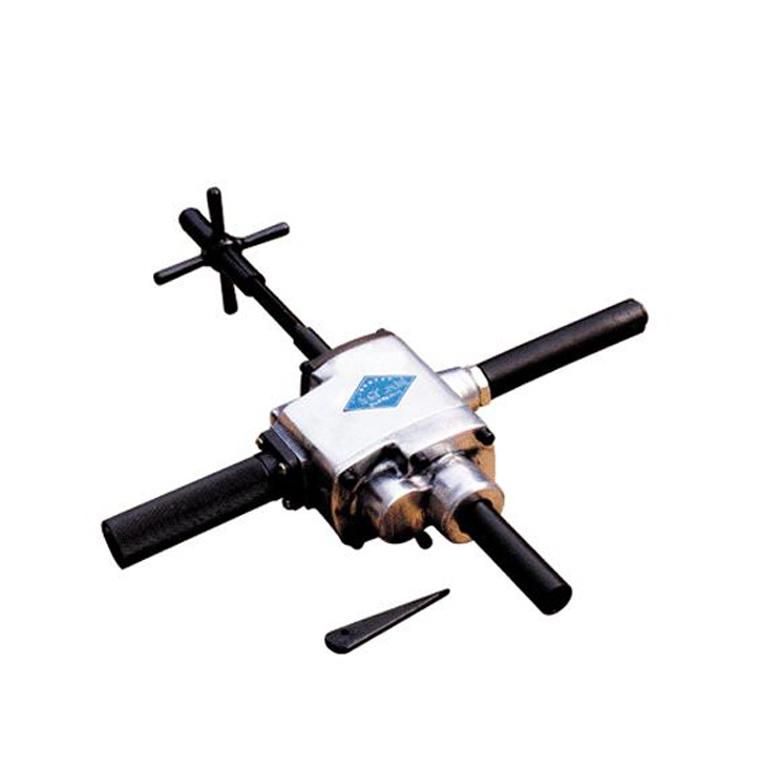

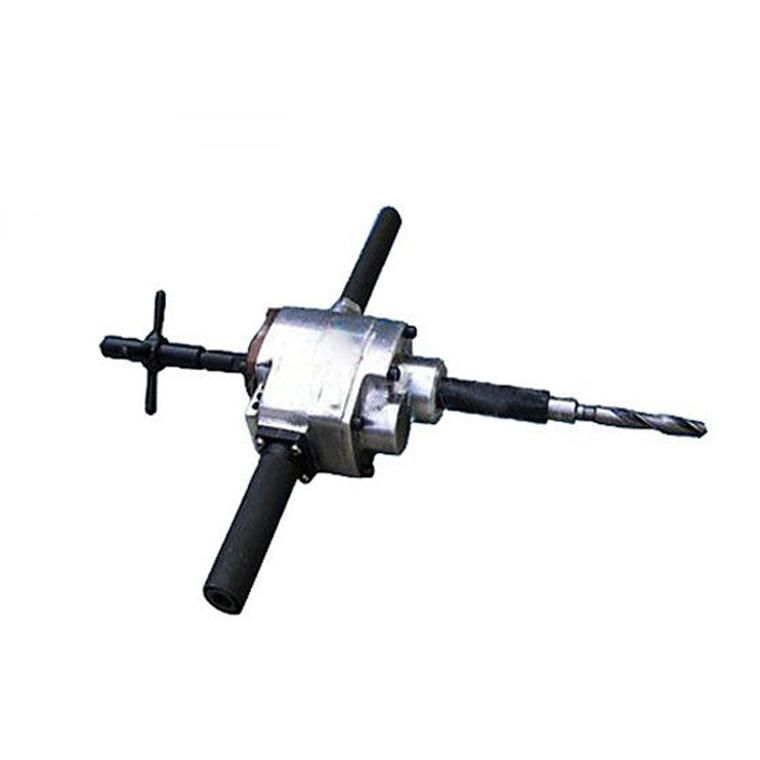

Photos of Pneumatic Drilling Machine Zk19 Air Rail Track Drill Equipment
