Nq/Hq/Pq/Hqtt/Nmlc/Hmlc Welded Steel Pipe/Exploration Drill Rod
JINSHI DRILLTECH CO., LTD.- Standard：RoHS, BS, DIN, JIS, AISI, API
- Length：0.5m,1m,1.5m,3m,4m,4.5m,6m
- Usage：Oil Mining, Coal Mining, Well Drilling, Ore Mining
- Material：Carbon Steel
- Drill Pipe：for Mining
- Transport Package：Iron Bundle
Base Info
- Model NO.：BQ NQ HQ PQ NRQ HRQ PHD NTW HTW
- Specification：3100*520*520mm
- Trademark：JS
- Origin：China
- HS Code：7304512000
- Production Capacity：5000piece,Pieces Per Day
Description
C series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cuttersSpec. Unit BCB NCB HCB PCB OD/ID mm 55.6/46 71/60 89/77.8 114.3/101.6 Thickness mm 4.8 5.5 5.6 6.35 Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3 Weight kg/m 6.01 8.8 11.51 17.3 thread length mm 44.45 44.45 44.45 63.5 thread pitch thread/inch 3 3 3 2.5 box thread tooth height mm 0.76 0.76 0.76 1.17 pin thread tooth height mm 0.88 0.88 0.88 1.27 thread tooth angle . 29 29 29 29 tensile resistance(A series) kn 400 530 510 565 tensile resistance(B series) kn 450 615 625 660 bore depth m 1200 1000 900 800 RC series Rod parameter-geological steel pipe-entire length thermal treatment, NC lathe with former cutters Spec. Unit BRC NRC HRC PRC OD/ID mm 55.6/46 69.9/60.3 88.9/77.8 114.3/101.6 Length m 1.5 or 3 1.5 or 3 1.5 or 3 1.5 or 3 Weight kg/m 6.01 8.8 11.51 17.3 thread length mm 42 42 41.91 63.5 thread pitch thread/inch 3 3 3 2.5 box thread tooth height mm 0.76 0.76 0.76 1.17 pin thread tooth height mm 0.88 0.88 0.88 1.27 thread tooth negative angle . 5 5 5 5 tensile resistance(A) kn 450 525 545 565 tensile resistance(B) kn 530 625.5 602 660 bore depth m

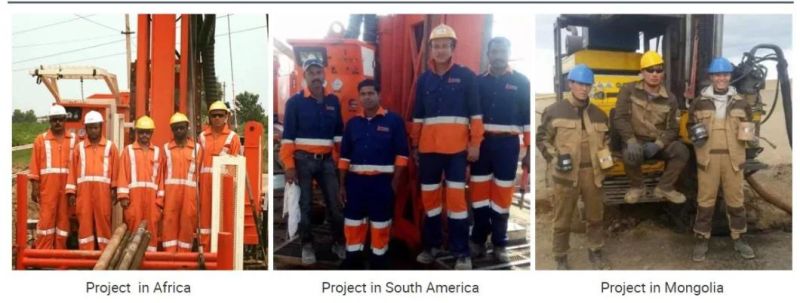

SIMILAR PRODUCTSSuccessful Project
SALES AND SERVICE NETWORK
Exhibition & Conference
FAQ1. Are you a manufacturer, trading company or a third party?
We are a manufacturer and our factory produces full line of diamond drilling tools & equipment. 2. Where is your factory located? How can I get to your factory?We are in Tangshan City, China, where is near Beijing & Tianjin, we can pick you up at the airports or railway stations.
3. If I will need to stay at your place for few days, is it possible to book the hotel for me?
It's always our pleasure to book a nice hotel for you.
4. What is your minimum order quantity? Our MOQ is 1 pc. 5. Can you send me free samples? We're happy to provide small value free samples at your delivery cost. 6. Can you do customized products? Yes, we are happy to do customized products if you can provide drawing or samples. 7. Can you do private label, such as put on our logo?
Yes, put on your logo is available.
8. Is your price competitive?
Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
9. May I know which payment will be accepted by your company?
We do 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
10.How can I get the after-service & quality guarantee? We will replace the products by free if the problems were caused by us. If it is the men-made problems,we may also send the products,however it will be charged. Any problems, you may call us directly.
