Mineral Exploration Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)

Changsha Miracleland Import & Export Co., Ltd.
  • Standard：International Standard
  • Type：Core Drill Bit

Base Info

  • Model NO.：AQ BQ NQ HQ PQ B T TT T2 T6 T6S LTK WG WF MLC.
  • Material：Diamond
  • Usage：Geotechnical,Mining Exploration
  • Condition：New
  • Matrix Height：6mm,8mm,10mm,12mm,14mm
  • Manufacturing Process：Sinter
  • Quality：High Quality
  • Transport Package：Plywood Case & Carton
  • Specification：DCDMA, CDDA, ISO
  • Trademark：Csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8207191000
  • Production Capacity：10, 000PCS,Year
  • Package size per unit product：10.00cm * 10.00cm * 15.00cm
  • Gross weight per unit product：3.000kg

Description

Overview Product Description

Size

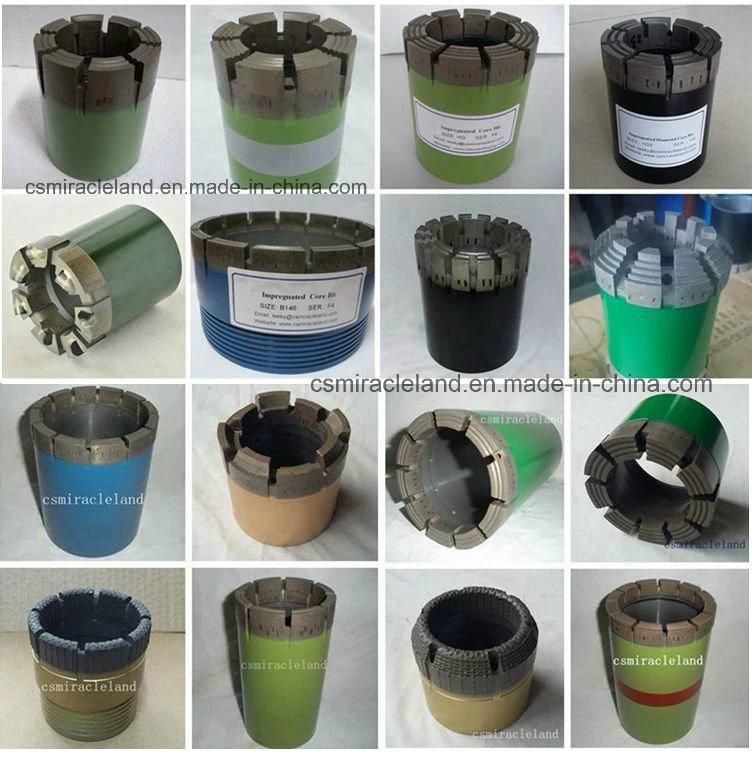

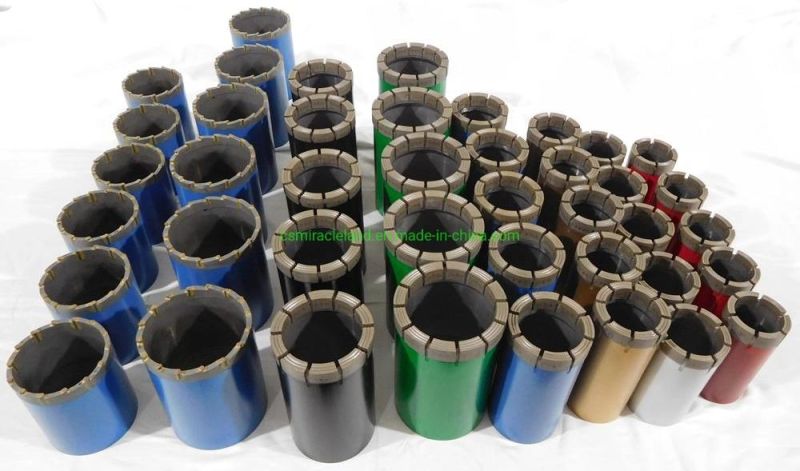

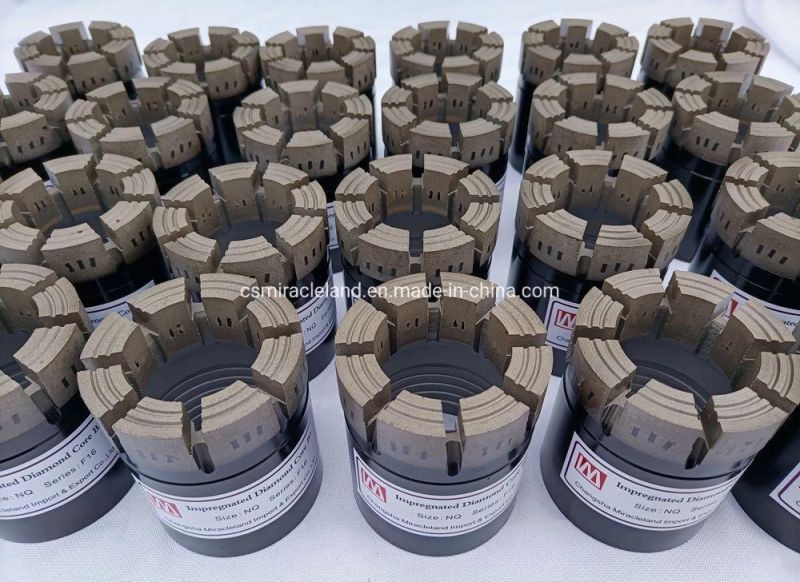

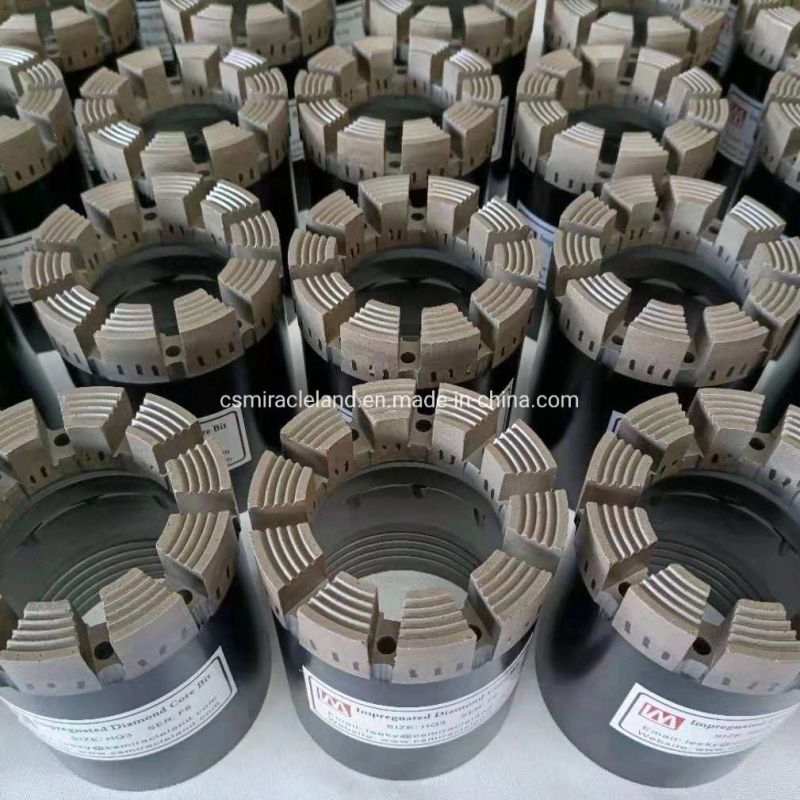

Related Photos


Mineral Exploration Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)Mineral Exploration Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)
Mineral Exploration Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)
Mineral Exploration Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)
Production Workshop

Packaging & Shipping

Mineral Exploration Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)

Certifications

Mineral Exploration Diamond Core Drill Bits (BQ NQ HQ PQ T2 T6)

Product Parameters


SizeOutside diameterInside diameterinchmminchmmAQ1.880/1.87047.75/47.501.607/1.05727.10/26.85AQ-RSG1.895/1.88548.13/47.881.067/1.05727.10/26.85AWG,AX1.880/1.87047.75/47.501.190/1.18030.23/29.97AWM1.880/1.87047.75/47.501.190/1.18030.23/29.97AWT1.880/1.87047.75/47.501.286/1.27632.66/32.41LTK481.880/1.87047.75/47.501.394/1.38435.40/35.15B-Gauge Core BitsBQ2.350/2.34059.69/59.441.438/1.42836.52/36.27BQ-RSG2.365/2.35560.77/59.821.438/1.42836.52/36.27BQ-2.4002.045/2.39561.09/60.831.438/1.42836.52/36.27BQ32.350/2.34059.69/59.441.325/1.31533.65/33.40BWG,BX2.350/2.34059.69/59.441.660/1.65042.16/41.91BWM2.350/2.34059.69/59.441.660/1.65042.16/41.91BWT2.350/2.34059.69/59.441.755/1.74544.58/44.32LTK602.350/2.34059.69/59.441.742/1.73244.25/44.00TBW2.350/2.34059.69/59.441.785/1.77545.34/45.09N-Gauge Core BitsNQ2.970/2.96075.44/75.191.880/1.87047.75/47.50NQ-RSG2.985/2.97575.82/75.571.880/1.87047.75/47.50NQ-3.0323.037/3.02777.14/76.891.880/1.87047.75/47.50NQ22.970/2.96075.44/75.192.000/1.99050.80/50.55NQ2-RSG2.985/2.97575.82/75.572.000/1.99050.80/50.55NQ3,NQTT2.970/2.96075.44/75.191.780/1.77045.21/44.96NQ3-RSG2.985/2.97575.82/75.571.780/1.77045.21/44.96NQ3-3.0323.037/3.02777.14/76.891.780/1.77045.21/44.96LMLC2.970/2.96075.44/75.192.052/2.04252.12/51.87NWG, NX2.970/2.96075.44/75.192.160/2.15054.86/54.61NWM2.970/2.96075.44/75.192.160/2.15054.86/54.61NWT2.970/2.96075.44/75.192.318/2.30858.87/58.62TNW2.970/2.96075.44/75.192.394/2.38460.80/60.55H-Gauge Core BitsHQ3.770/3.75595.76/95.382.505/2.49563.63/63.38HQ-RSG3.790/3.75596.27/95.892.505/2.49563.63/63.38HQ-3.8303.840/3.82597.54/97.162.505/2.49563.63/63.38HQ-3.8953.897/3.88298.98/98.602.505/2.49563.63/63.38HQ3, HQTT3.770/3.75595.76/95.382.411/2.40161.24/60.99HQ3-RSG3.790/3.75596.27/95.892.411/2.40161.24/60.99HQ3-3.8303.840/3.82597.54/97.162.411/2.40161.24/60.99HQ3-3.8953.897/3.88298.98/98.602.411/2.40161.24/60.99HMLC3.897/3.88298.98/98.602.505/2.49563.63/63.38HWF-Long3.912/3.89799.36/98.983.005/2.99576.33/76.08HWF-Short3.897/3.88298.98/98.603.005/2.99576.33/76.08HWG, HX3.897/3.88298.98/98.603.005/2.99576.33/76.08HWM3.897/3.88298.98/98.603.005/2.99576.33/76.08HWT3.897/3.88298.98/98.603.192/3.18281.08/8082P-Gauge Core BitsPQ4.815/4.795122.30/121.803.350/3.34085.09/84.84PQ34.815/4.795122.30/121.803.275/3.26583.18/82.93PWF-Long4.755/4.740120.78/120.403.635/3.62092.33/91.95PWF-Short4.735/4.715120.27/119.763.635/3.62092.33/91.95S-Gauge Core BitsSWF-Long5.755/5.740146.18/145.804.447/4.432112.95/112.57SWF-Short5.735/5.715145.67/145.164.447/4.432112.95/112.57U-Gauge Core BitsUWF-Long6.880/6.860174.75/174.245.515/5.495140.08/139.57UWF-Short6.855/6.825174.12/173.365.515/5.495140.08/139.57Z-Gauge Core BitsZWF-Long7.880/7.860200.15/199.646.515/6.495165.48/164.97ZWF-Short7.855/7.825199.52/198.766.515/6.495165.48/164.97T, TT, T2 & TB Series Metric Core BitsT361.422/1.41236.12/35.870.859/0.84921.82/21.57TT461.818/1.80846.18/45.921.394/1.38435.40/35.15T2-461.818/1.80846.18/45.921.253/1.24331.82/31.57TB562.22056.301.64041.70TT562.210/2.20056.13/55.881.788/1.77845.41/45.16T2-562.210/2.20056.13/55.881.647/1.63741.83/41.58T2-662.603/2.59366.12/65.872.040/2.03051.81/51.56T2-762.997/2.98776.12/75.872.434/2.42461.82/61.57T2-76 Coreline2.997/2.98776.12/75.872.288/2.27858.12/57.87T2-863.391/3.38186.13/85.882.828/2.81871.83/71.58T2-86 Coreline3.391/3.38186.13/85.882.682/2.67268.13/67.88T2-1013.981/3.971101.12/100.873.300/3.29083.82/83.57T2-101 Coreline3.971/3.971101.12/100.873.155/3.14580.13/79.88T6 Series Metric Core BitsT6-762.997/2.98776.12/75.872.249/2.23957.12/56.87T6-863.391/3.38186.13/85.882.643/2.63367.13/66.88T6-1013.981/3.971101.12/100.873.115/3.10579.12/78.87T6-1164.575/4.560116.20/115.823.667/3.65793.14/92.89T6-1315.165/5.150131.19/130.814.257/4.247108.13/107.88T6-1465.755/5.740146.18/145.84.847/4.837123.11/122.86T6S Series Metric Core BitsT6S-763.009/2.99976.43/76.181.883/1.87347.83/47.58T6S-863.403/3.39386.43/86.182.277/2.26757.83/57.58T6S-1013.993/3.983101.43/101.182.828/2.81871.83/71.58T6S-1164.586/4.571116.48/116.103.379/3.36985.83/85.58T6S-1315.177/5.162131.48/131.103.970/3.960100.83/100.58T6S-1465.767/5.752146.48/146.104.560/4.550115.83/115.58B Series (ISO3552-1) Metric Core BitsB361.422/1.41236.12/35.870.859/0.84921.82/21.57B461.818/1.80846.18/45.921.253/1.24331.82/31.57B562.210/2.20056.13/55.881.647/1.63741.83/41.58B662.603/2.59366.12/65.872.040/2.03051.81/51.56B762.997/2.98776.12/75.872.434/2.42461.82/61.57B863.391/3.38186.13/85.882.828/2.81871.83/71.58B1013.981/3.971101.12/100.873.418/3.40886.82/86.57B1164.575/4.560116.20/115.824.009/3.999101.83/101.58B1315.165/5.150131.19/130.814.599/4.589116.82/116.57B1465.755/5.740146.18/145.805.190/5.180131.82/131.57
