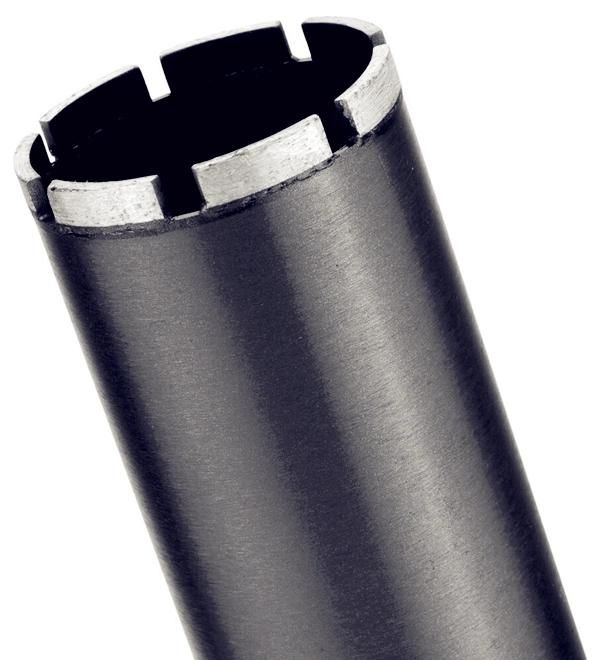

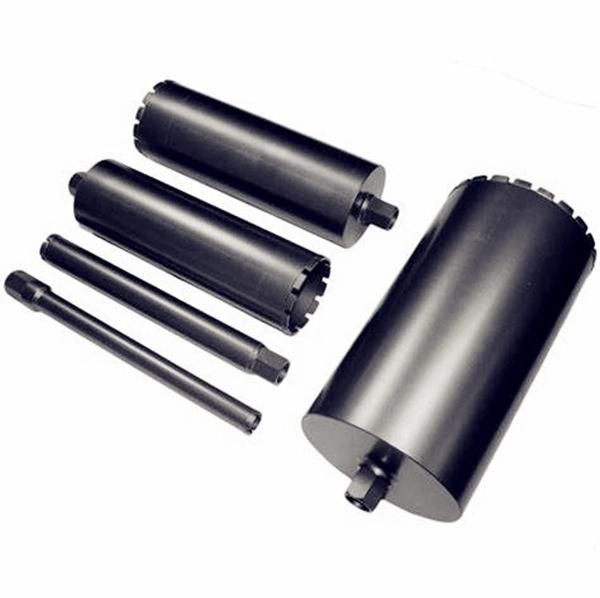

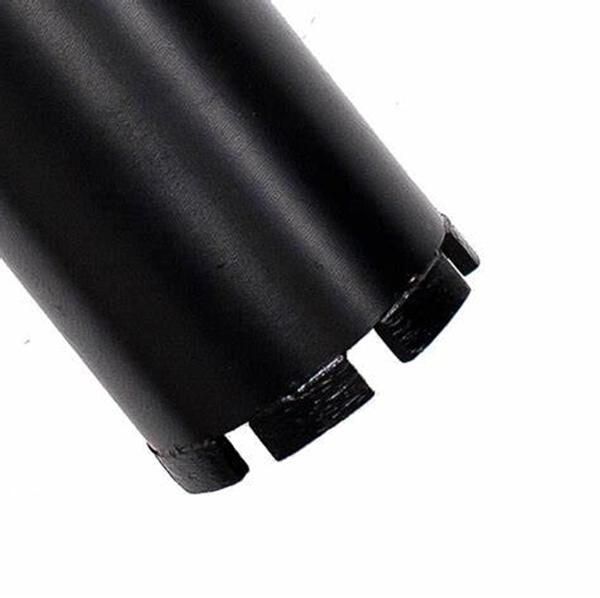

Core Drill Bits for Stone/Concrete/Reinforced Concrete/Masonry
Quanzhou Keen Diamond Tool Co., Ltd.- Customized:Customized
- Standard:SGS
- Length:400-450mm
- Type:Core Drill Bit
- Material:Diamond
- Usage:Well Drilling, Masonry Drilling
Base Info
- Model NO.:DCDB-KT-C
- Thickness:5mm
- Shape:Round
- Manufacturing Arts:Brazed, Laser Welding, Jet, Impregnated
- Kind:Diamond Drill
- Brand:Keentool
- Saw Blade External Diameter:16-500mm
- Transport Package:Carton Box
- Specification:Diameter 1"-14"
- Trademark:KEENTOOL
- Origin:Quanzhou, China
- HS Code:8202
- Production Capacity:2000PCS,MONTH
Description
DiameterSegment Dimensions Segment nos. Length Thread Remarks Inch mm 1 25 16×3.3×10 3 350mm 1-1/4"-7 UNC Laser welding 1 1/4 32 16×3.3×10 4 350mm 1-1/4"-7 UNC 1 1/2 38 20x3.3x10 4 350mm 1-1/4"-7 UNC 1 3/4 44 20x3.5x10 5 350mm 1-1/4"-7 UNC 2 51 20x3.5x10 6 350mm 1-1/4"-7 UNC 2 1/2 64 20x3.5x10 8 350mm 1-1/4"-7 UNC 3 76 20x3.5x10 9 350mm 1-1/4"-7 UNC 3 1/2 89 20x3.5x10 10 350mm 1-1/4"-7 UNC 4 102 20x3.8x10 12 350mm 1-1/4"-7 UNC 4 1/2 114 20x4.2x10 13 350mm 1-1/4"-7 UNC 5 127 20x4.2x10 15 350mm 1-1/4"-7 UNC 5 1/2 140 24x4.2x10 14 350mm 1-1/4"-7 UNC 6 152 24x4.5x10 15 350mm 1-1/4"-7 UNC 7 178 24x4.5x10 17 350mm 1-1/4"-7 UNC 8 203 24x4.5x10 18 350mm 1-1/4"-7 UNC 9 229 24x5x10 19 350mm 1-1/4"-7 UNC 10 254 24x5x10 20 350mm 1-1/4"-7 UNC 12 305 24x5.5x10 20 350mm 1-1/4"-7 UNC Silver welding 14 356 24x5.5x10 When order core drill bits, please kindly inform the followings:
1). Diameter of the core drill
2). Specification of segments for core drill bits
3). The length of the core drill

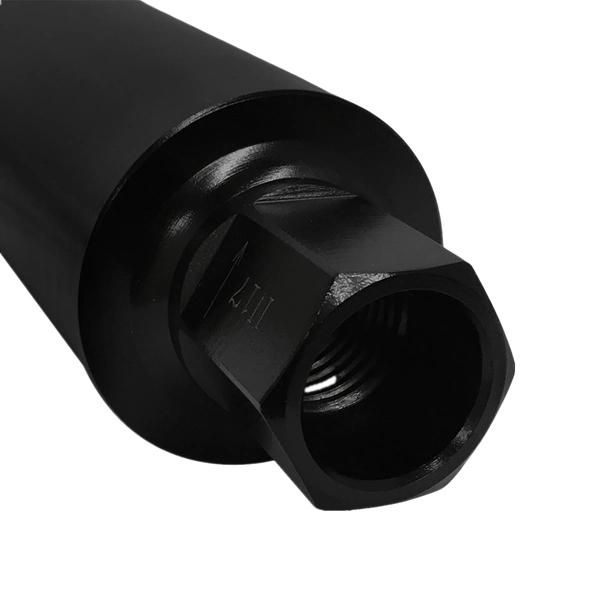

4). The size and types of screw of joint
5). For what drilling use(granite, marble, concrete etc)
6). Other special requirements ( if any)
Packaging: Carton with water proof plastic.
Delivery time: In 15 days after receipt of payment
Our Services
1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
ALWAYS AT YOUR SERVICE --KEENTOOL
