Premium Quality SSD Turbo Cross Cutter Hammer Drill Bit SDS Max 4h Flute for Concrete Brick Cement Stone Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Length：300mm to 1500mm
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Masonry Drilling
Base Info
- Model NO.：5119
- Carbide Type：Vigin Yg9 SSD Turbo Carbide Patented
- Steel Type：40cr
- Surface Treatment：Shot-Peened
- Cutter Type：Turbo Wave
- Flute Type：4h-Plus
- Marking：Stamped
- Welding Type：AVS. (Automatic Vacuum Soldering)
- Transport Package：Clip Hanger, Color Paper Box, Paper Box, Tubes
- Specification：Diameter 10mm to 42mm
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：360000,Year
Description
Basic Info.
Model NO. 5119 Carbide Type Vigin Yg9 SSD Turbo Carbide Patented Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Turbo Wave Flute Type 4h-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Box, Paper Box, Tubes Specification Diameter 10mm to 42mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 360000/YearProduct Description

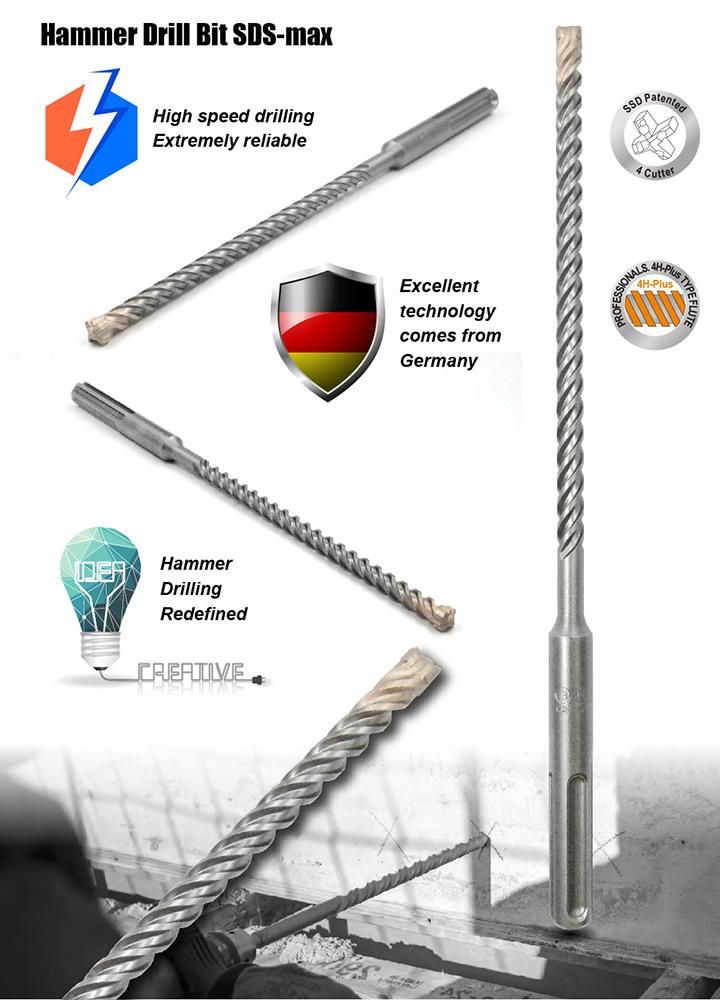

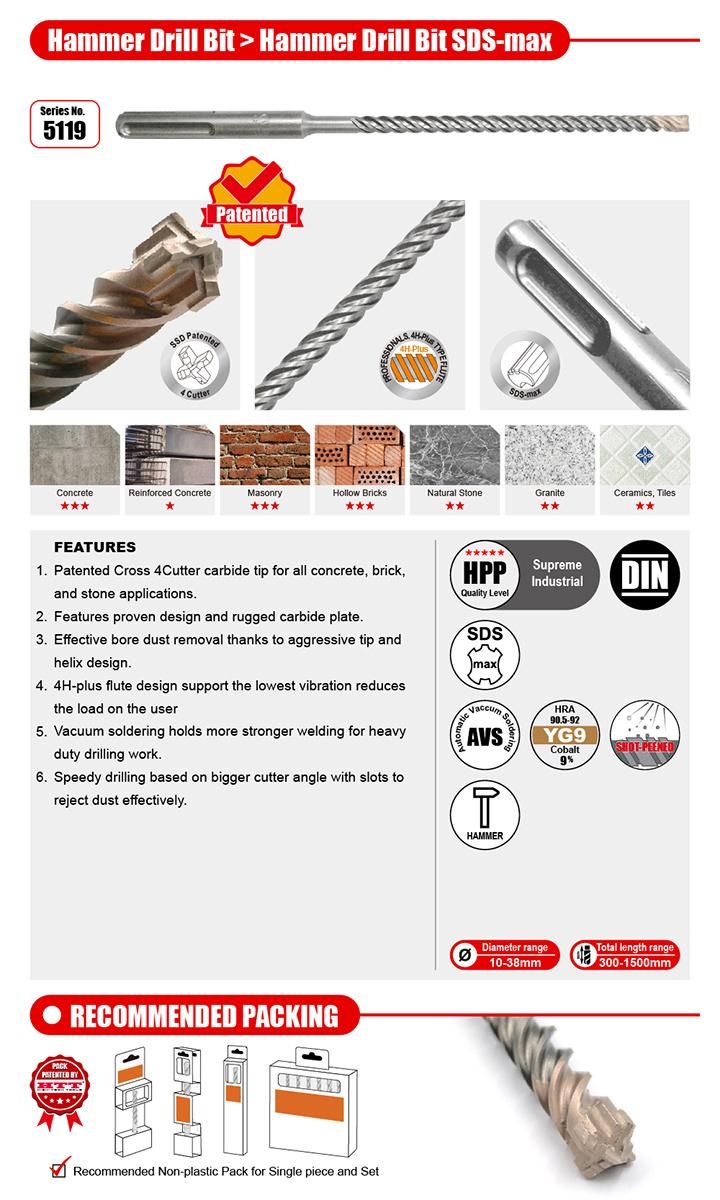

*Patented SSD Turbo Waved Cross 4 Cutter Hammer Drill SDS max, with 4H-plus flutes* Patented SSD Cross 4 cutter carbide-tipped for durable heavy-duty drilling.
* SDS-max shank under Bosch audited to fit branded rotary hammers.
* 4H-plus type of flute maximizes the dust-rejection rate in faster drilling.
* Specially hardened steel blank guarantees the best durability to unify the carbide drilling life.
* Fast spiral flute angle design to increase drilling efficiency in building material.
* Design for all concrete drilling.
* The self-centering tip supports more precision.
*Available sizes for Choices( The special sizes are also available on the customers' special request. )
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 5119.100300 | 10 | 160 | 300 |
| 5119.100340 | 10 | 200 | 340 |
| 5119.100540 | 10 | 400 | 540 |
| 5119.100690 | 10 | 550 | 690 |
| 5119.100920 | 10 | 800 | 920 |
| 5119.120300 | 12 | 160 | 300 |
| 5119.120340 | 12 | 200 | 340 |
| 5119.120540 | 12 | 400 | 540 |
| 5119.120690 | 12 | 550 | 690 |
| 5119.120920 | 12 | 800 | 920 |
| 5119.130340 | 13 | 200 | 340 |
| 5119.130540 | 13 | 400 | 540 |
| 5119.130690 | 13 | 550 | 690 |
| 5119.130920 | 13 | 800 | 920 |
| 5119.140340 | 14 | 200 | 340 |
| 5119.140540 | 14 | 400 | 540 |
| 5119.140690 | 14 | 550 | 690 |
| 5119.140920 | 14 | 800 | 920 |
| 5119.141320 | 14 | 1200 | 1320 |
| 5119.150340 | 15 | 200 | 340 |
| 5119.150540 | 15 | 400 | 540 |
| 5119.150690 | 15 | 550 | 690 |
| 5119.150920 | 15 | 800 | 920 |
| 5119.151320 | 15 | 1200 | 1320 |
| 5119.160340 | 16 | 200 | 340 |
| 5119.160540 | 16 | 400 | 540 |
| 5119.160690 | 16 | 550 | 690 |
| 5119.160920 | 16 | 800 | 920 |
| 5119.161320 | 16 | 1200 | 1320 |
| 5119.180340 | 18 | 200 | 340 |
| 5119.180540 | 18 | 400 | 540 |
| 5119.180690 | 18 | 550 | 690 |
| 5119.180920 | 18 | 800 | 920 |
| 5119.181320 | 18 | 1200 | 1320 |
| 5119.190340 | 19 | 200 | 340 |
| 5119.190540 | 19 | 400 | 540 |
| 5119.190690 | 19 | 550 | 690 |
| 5119.190920 | 19 | 800 | 920 |
| 5119.200340 | 20 | 200 | 340 |
| 5119.200540 | 20 | 400 | 540 |
| 5119.200690 | 20 | 550 | 690 |
| 5119.200920 | 20 | 800 | 920 |
| 5119.201320 | 20 | 1200 | 1320 |
| 5119.220340 | 22 | 200 | 340 |
| 5119.220540 | 22 | 400 | 540 |
| 5119.220690 | 22 | 550 | 690 |
| 5119.220920 | 22 | 800 | 920 |
| 5119.221320 | 22 | 1200 | 1320 |
| 5119.240340 | 24 | 200 | 340 |
| 5119.240540 | 24 | 400 | 540 |
| 5119.240690 | 24 | 550 | 690 |
| 5119.240920 | 24 | 800 | 920 |
| 5119.241320 | 24 | 1200 | 1320 |
| 5119.250340 | 25 | 200 | 340 |
| 5119.250540 | 25 | 400 | 540 |
| 5119.250690 | 25 | 550 | 690 |
| 5119.250920 | 25 | 800 | 920 |
| 5119.251320 | 25 | 1200 | 1320 |
| 5119.260340 | 26 | 200 | 340 |
| 5119.260540 | 26 | 400 | 540 |
| 5119.260670 | 26 | 550 | 670 |
| 5119.260920 | 26 | 800 | 920 |
| 5119.261320 | 26 | 1200 | 1320 |
| 5119.280370 | 28 | 250 | 370 |
| 5119.280570 | 28 | 450 | 570 |
| 5119.280670 | 28 | 550 | 670 |
| 5119.280920 | 28 | 800 | 920 |
| 5119.281302 | 28 | 1200 | 1320 |
| 5119.300370 | 30 | 250 | 370 |
| 5119.300570 | 30 | 450 | 570 |
| 5119.300670 | 30 | 550 | 670 |
| 5119.300920 | 30 | 800 | 920 |
| 5119.301320 | 30 | 1200 | 1320 |
| 5119.320370 | 32 | 250 | 370 |
| 5119.320570 | 32 | 450 | 570 |
| 5119.320670 | 32 | 550 | 670 |
| 5119.320920 | 32 | 800 | 920 |
| 5119.321320 | 32 | 1200 | 1320 |
| 5119.350370 | 35 | 250 | 370 |
| 5119.350570 | 35 | 450 | 570 |
| 5119.350670 | 35 | 550 | 670 |
| 5119.350920 | 35 | 800 | 920 |
| 5119.351320 | 35 | 1200 | 1320 |
| 5119.360370 | 36 | 250 | 370 |
| 5119.360570 | 36 | 450 | 570 |
| 5119.360670 | 36 | 550 | 670 |
| 5119.360920 | 36 | 800 | 920 |
| 5119.361320 | 36 | 1200 | 1320 |
| 5119.380370 | 38 | 250 | 370 |
| 5119.380570 | 38 | 450 | 570 |
| 5119.380670 | 38 | 550 | 670 |
| 5119.380920 | 38 | 800 | 920 |
| 5119.381320 | 38 | 1200 | 1320 |
| 5119.400370 | 40 | 250 | 370 |
| 5119.400570 | 40 | 450 | 570 |
| 5119.400670 | 40 | 550 | 670 |
| 5119.400920 | 40 | 800 | 920 |
| 5119.401320 | 40 | 1200 | 1320 |
| 5119.121500 | 12 | 1450 | 1500 |
| 5119.131500 | 13 | 1450 | 1500 |
| 5119.141500 | 14 | 1450 | 1500 |
| 5119.151500 | 15 | 1450 | 1500 |
| 5119.161500 | 16 | 1450 | 1500 |
| 5119.181500 | 18 | 1450 | 1500 |
| 5119.191500 | 19 | 1450 | 1500 |
| 5119.201500 | 20 | 1450 | 1500 |
| 5119.221500 | 22 | 1450 | 1500 |
| 5119.241500 | 24 | 1450 | 1500 |
| 5119.251500 | 25 | 1450 | 1500 |
| 5119.261500 | 26 | 1450 | 1500 |
| 5119.281500 | 28 | 1450 | 1500 |
| 5119.301500 | 30 | 1450 | 1500 |
| 5119.351500 | 35 | 1450 | 1500 |
