Ltk60 Impregnated Diamond Core Bit

Changsha Miracleland Import & Export Co., Ltd.
  • Customized：Customized
  • Standard：ISO CQC SGS Saso
  • Type：Core Drilling Rig
  • Material：Diamond
  • Usage：Mining,Core
  • Matrix Height：6mm-14mm

Base Info

  • Model NO.：LTK60 LTK48
  • Condition：New
  • Crown Profiles：W Profile
  • Quality：High Quality
  • Transport Package：Each Bit Is Independently Packed in a Small Carton
  • Specification：DCDMA, CDDA, ISO
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430691900
  • Production Capacity：8000PCS,Year

Description

Overview Product Description

Size



Related Photos

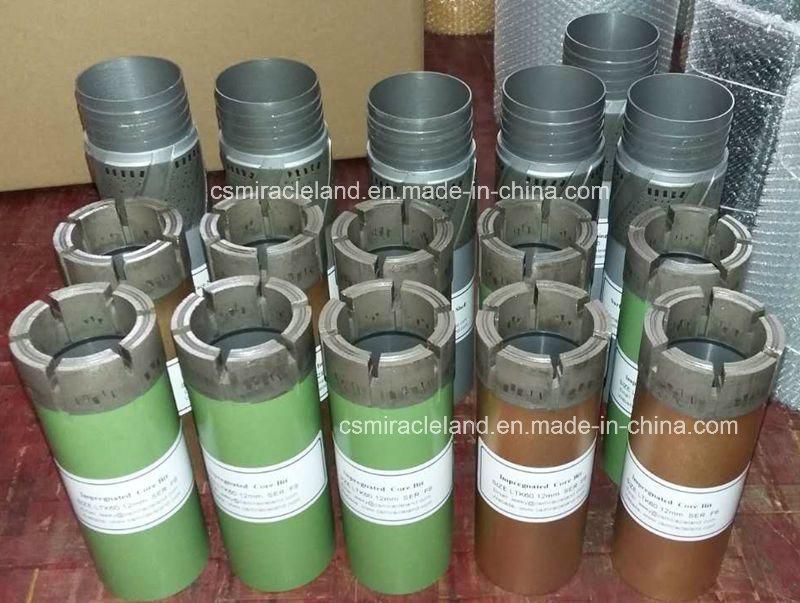

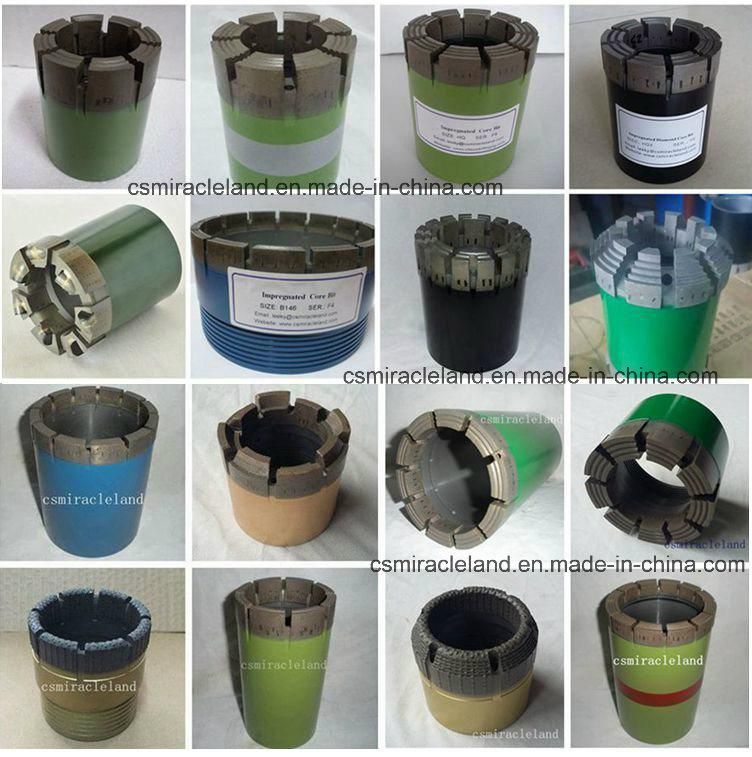

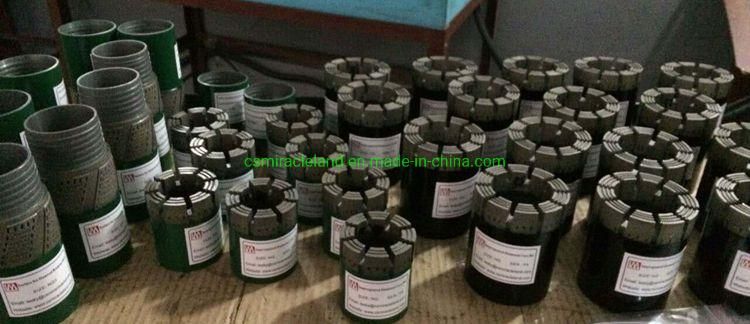

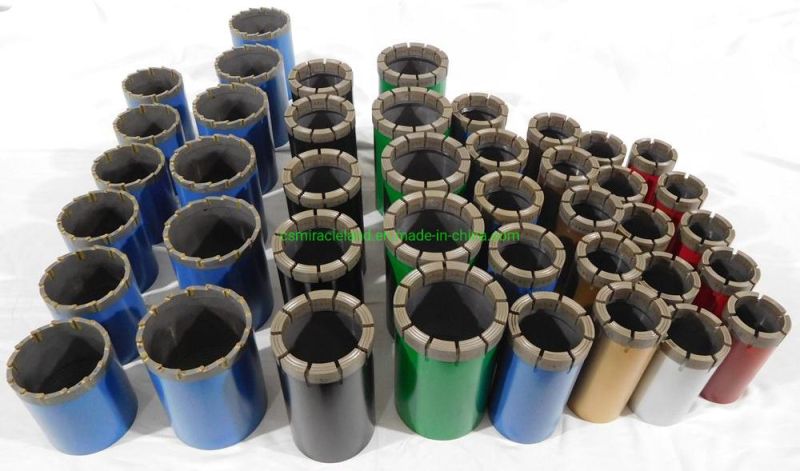

Ltk60 Impregnated Diamond Core BitLtk60 Impregnated Diamond Core BitLtk60 Impregnated Diamond Core Bit

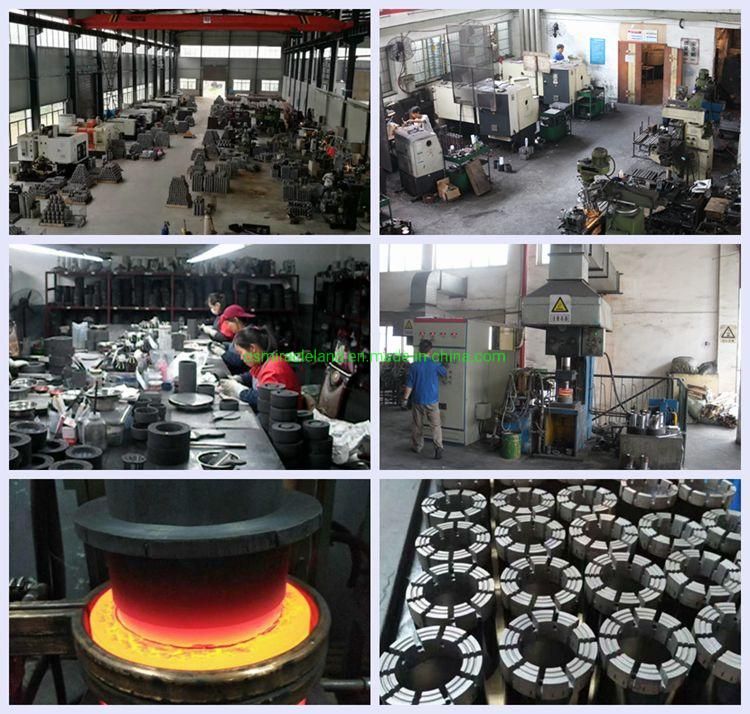

Ltk60 Impregnated Diamond Core BitProduction Workshop
Ltk60 Impregnated Diamond Core Bit



Product Parameters

SizeOutside diameterInside diameterinchmminchmmAQ1.880/1.87047.75/47.501.607/1.05727.10/26.85AQ-RSG1.895/1.88548.13/47.881.067/1.05727.10/26.85AWG,AX1.880/1.87047.75/47.501.190/1.18030.23/29.97AWM1.880/1.87047.75/47.501.190/1.18030.23/29.97AWT1.880/1.87047.75/47.501.286/1.27632.66/32.41LTK481.880/1.87047.75/47.501.394/1.38435.40/35.15B-Gauge Core BitsBQ2.350/2.34059.69/59.441.438/1.42836.52/36.27BQ-RSG2.365/2.35560.77/59.821.438/1.42836.52/36.27BQ-2.4002.045/2.39561.09/60.831.438/1.42836.52/36.27BQ32.350/2.34059.69/59.441.325/1.31533.65/33.40BWG,BX2.350/2.34059.69/59.441.660/1.65042.16/41.91BWM2.350/2.34059.69/59.441.660/1.65042.16/41.91BWT2.350/2.34059.69/59.441.755/1.74544.58/44.32LTK602.350/2.34059.69/59.441.742/1.73244.25/44.00TBW2.350/2.34059.69/59.441.785/1.77545.34/45.09N-Gauge Core BitsNQ2.970/2.96075.44/75.191.880/1.87047.75/47.50NQ-RSG2.985/2.97575.82/75.571.880/1.87047.75/47.50NQ-3.0323.037/3.02777.14/76.891.880/1.87047.75/47.50NQ22.970/2.96075.44/75.192.000/1.99050.80/50.55NQ2-RSG2.985/2.97575.82/75.572.000/1.99050.80/50.55NQ3,NWLTT2.970/2.96075.44/75.191.780/1.77045.21/44.96NQ3-RSG2.985/2.97575.82/75.571.780/1.77045.21/44.96NQ3-3.0323.037/3.02777.14/76.891.780/1.77045.21/44.96LMLC2.970/2.96075.44/75.192.052/2.04252.12/51.87NWG, NX2.970/2.96075.44/75.192.160/2.15054.86/54.61NWM2.970/2.96075.44/75.192.160/2.15054.86/54.61NWT2.970/2.96075.44/75.192.318/2.30858.87/58.62TNW2.970/2.96075.44/75.192.394/2.38460.80/60.55H-Gauge Core BitsHQ3.770/3.75595.76/95.382.505/2.49563.63/63.38HQ-RSG3.790/3.75596.27/95.892.505/2.49563.63/63.38HQ-3.8303.840/3.82597.54/97.162.505/2.49563.63/63.38HQ-3.8953.897/3.88298.98/98.602.505/2.49563.63/63.38HQ3, WLHTT3.770/3.75595.76/95.382.411/2.40161.24/60.99HQ3-RSG3.790/3.75596.27/95.892.411/2.40161.24/60.99HQ3-3.8303.840/3.82597.54/97.162.411/2.40161.24/60.99HQ3-3.8953.897/3.88298.98/98.602.411/2.40161.24/60.99HMLC3.897/3.88298.98/98.602.505/2.49563.63/63.38HWF-Long3.912/3.89799.36/98.983.005/2.99576.33/76.08HWF-Short3.897/3.88298.98/98.603.005/2.99576.33/76.08HWG, HX3.897/3.88298.98/98.603.005/2.99576.33/76.08HWM3.897/3.88298.98/98.603.005/2.99576.33/76.08HWT3.897/3.88298.98/98.603.192/3.18281.08/8082P-Gauge Core BitsPQ4.815/4.795122.30/121.803.350/3.34085.09/84.84PQ34.815/4.795122.30/121.803.275/3.26583.18/82.93PWF-Long4.755/4.740120.78/120.403.635/3.62092.33/91.95PWF-Short4.735/4.715120.27/119.763.635/3.62092.33/91.95S-Gauge Core BitsSWF-Long5.755/5.740146.18/145.804.447/4.432112.95/112.57SWF-Short5.735/5.715145.67/145.164.447/4.432112.95/112.57U-Gauge Core BitsUWF-Long6.880/6.860174.75/174.245.515/5.495140.08/139.57UWF-Short6.855/6.825174.12/173.365.515/5.495140.08/139.57Z-Gauge Core BitsZWF-Long7.880/7.860200.15/199.646.515/6.495165.48/164.97ZWF-Short7.855/7.825199.52/198.766.515/6.495165.48/164.97T, TT, T2 & TB Series Metric Core BitsT361.422/1.41236.12/35.870.859/0.84921.82/21.57TT461.818/1.80846.18/45.921.394/1.38435.40/35.15T2-461.818/1.80846.18/45.921.253/1.24331.82/31.57TB562.22056.301.64041.70TT562.210/2.20056.13/55.881.788/1.77845.41/45.16T2-562.210/2.20056.13/55.881.647/1.63741.83/41.58T2-662.603/2.59366.12/65.872.040/2.03051.81/51.56T2-762.997/2.98776.12/75.872.434/2.42461.82/61.57T2-76 Coreline2.997/2.98776.12/75.872.288/2.27858.12/57.87T2-863.391/3.38186.13/85.882.828/2.81871.83/71.58T2-86 Coreline3.391/3.38186.13/85.882.682/2.67268.13/67.88T2-1013.981/3.971101.12/100.873.300/3.29083.82/83.57T2-101 Coreline3.971/3.971101.12/100.873.155/3.14580.13/79.88T6 Series Metric Core BitsT6-762.997/2.98776.12/75.872.249/2.23957.12/56.87T6-863.391/3.38186.13/85.882.643/2.63367.13/66.88T6-1013.981/3.971101.12/100.873.115/3.10579.12/78.87T6-1164.575/4.560116.20/115.823.667/3.65793.14/92.89T6-1315.165/5.150131.19/130.814.257/4.247108.13/107.88T6-1465.755/5.740146.18/145.84.847/4.837123.11/122.86T6S Series Metric Core BitsT6S-763.009/2.99976.43/76.181.883/1.87347.83/47.58T6S-863.403/3.39386.43/86.182.277/2.26757.83/57.58T6S-1013.993/3.983101.43/101.182.828/2.81871.83/71.58T6S-1164.586/4.571116.48/116.103.379/3.36985.83/85.58T6S-1315.177/5.162131.48/131.103.970/3.960100.83/100.58T6S-1465.767/5.752146.48/146.104.560/4.550115.83/115.58B Series (ISO3552-1) Metric Core BitsB361.422/1.41236.12/35.870.859/0.84921.82/21.57B461.818/1.80846.18/45.921.253/1.24331.82/31.57B562.210/2.20056.13/55.881.647/1.63741.83/41.58B662.603/2.59366.12/65.872.040/2.03051.81/51.56B762.997/2.98776.12/75.872.434/2.42461.82/61.57B863.391/3.38186.13/85.882.828/2.81871.83/71.58B1013.981/3.971101.12/100.873.418/3.40886.82/86.57B1164.575/4.560116.20/115.824.009/3.999101.83/101.58B1315.165/5.150131.19/130.814.599/4.589116.82/116.57B1465.755/5.740146.18/145.805.190/5.180131.82/131.57 Packaging & Shipping

Ltk60 Impregnated Diamond Core Bit

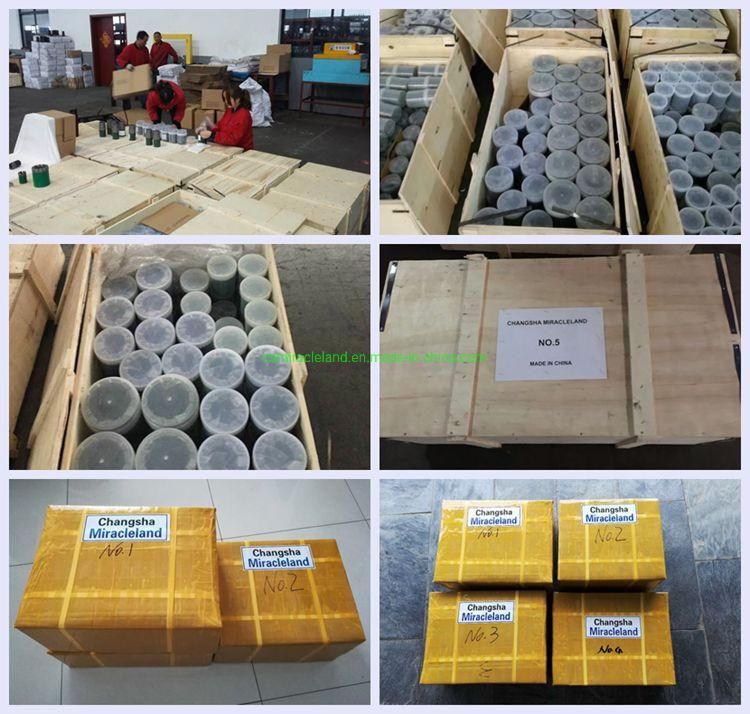

Using plywood case package for sea shipment, and using carton packages for air delivery.
