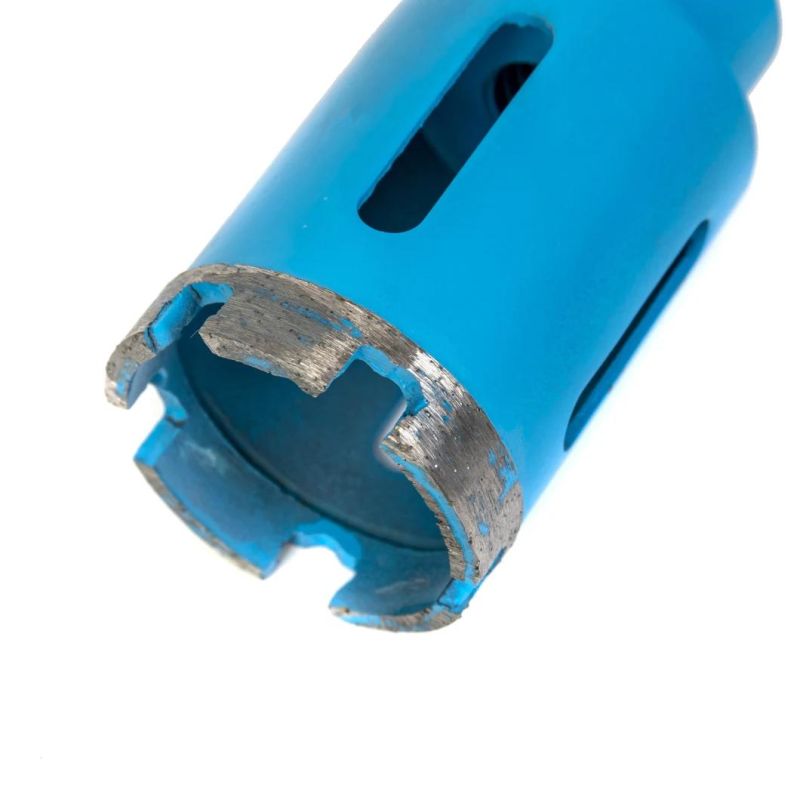

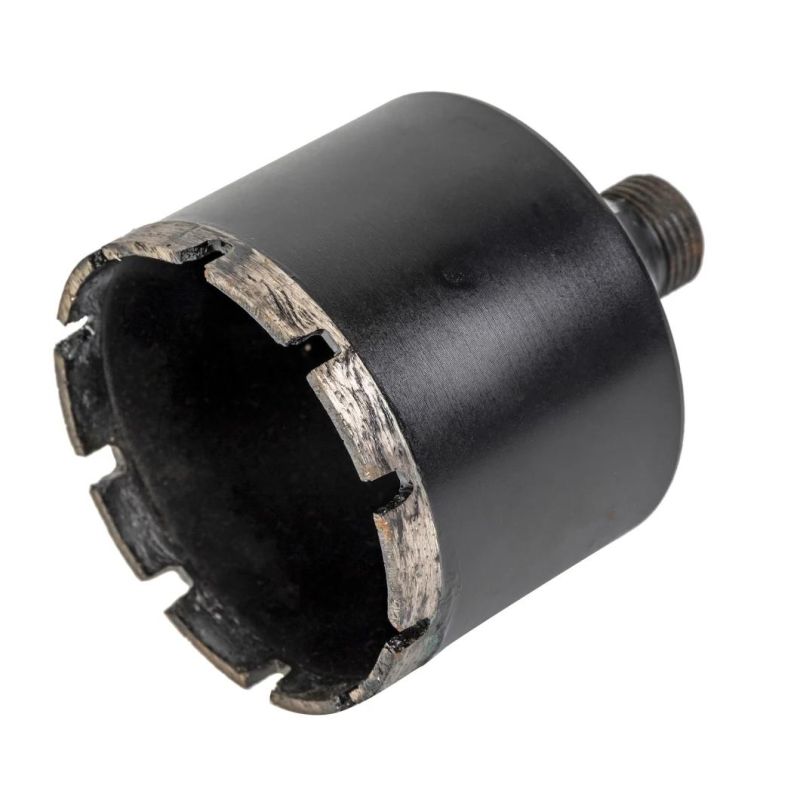

Air Conditioners Holes Drilling Concrete Drill Bit
Quanzhou Keen Diamond Tool Co., Ltd.- Customized：Customized
- Material：Diamond Segment
- Usage：Drilling
- Graininess：1000#
- Shape：Round
- Manufacturing Arts：Sinter
Base Info
- Model NO.：LQ-DCD
- Kind：Diamond Drill
- Brand：Keen
- Saw Blade External Diameter：16-500mm
- Item：Concrete Drill Bit
- Transport Package：Carton
- Specification：SGS
- Trademark：KEEN
- Origin：Quanzhou, Fujian
- Production Capacity：50000 Per Week
Description
Segment DimensionsSegment Nos. Length Thread Remarks Inch mm 1 25 16×3.3×10 3 300-500mm 1-1/4"-7 UNC Brazed/Laser welded 1 1/4 32 16×3.3×10 4 300-500mm 1-1/4"-7 UNC 1 1/2 38 20x3.3x10 4 300-500mm 1-1/4"-7 UNC 1 3/4 44 20x3.5x10 5 300-500mm 1-1/4"-7 UNC 2 51 20x3.5x10 6 300-500mm 1-1/4"-7 UNC 2 1/2 64 20x3.5x10 8 300-500mm 1-1/4"-7 UNC 3 76 20x3.5x10 9 300-500mm 1-1/4"-7 UNC 3 1/2 89 20x3.5x10 10 300-500mm 1-1/4"-7 UNC 4 102 20x3.8x10 12 300-500mm 1-1/4"-7 UNC 4 1/2 114 20x4.2x10 13 300-500mm 1-1/4"-7 UNC 5 127 20x4.2x10 15 300-500mm 1-1/4"-7 UNC 5 1/2 140 24x4.2x10 14 300-500mm 1-1/4"-7 UNC 6 152 24x4.5x10 15 300-500mm 1-1/4"-7 UNC 7 178 24x4.5x10 17 300-500mm 1-1/4"-7 UNC 8 203 24x4.5x10 18 300-500mm 1-1/4"-7 UNC 9 229 24x5x10 19 300-500mm 1-1/4"-7 UNC 10 254 24x5x10 20 300-500mm 1-1/4"-7 UNC 12 305 24x5.5x10 20 300-500mm 1-1/4"-7 UNC
