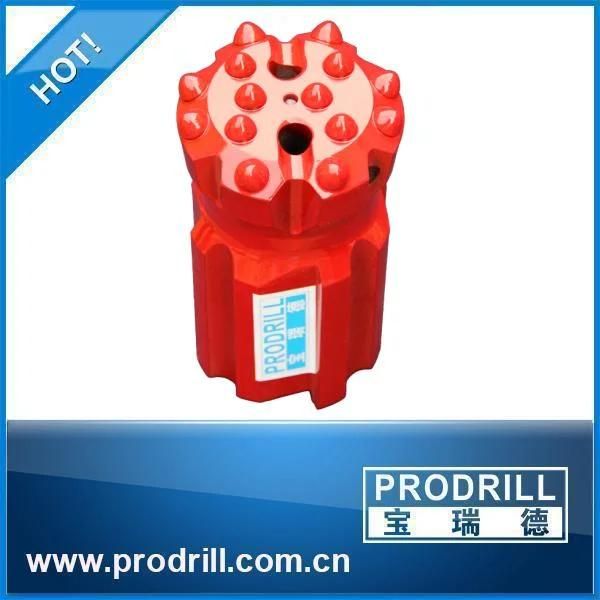

T51 Dia 89mm Retrac Dimensional Stone Quarrying Thread Button Bit

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Material：Tungsten Carbide
  • Usage：Well Drilling

Base Info

  • Model NO.：T51-89-RC
  • Thread：T51 for Blasting Hole Drilling
  • Bit Diameter：89mm, 102mm, 127mm
  • Cemented Carbide：Yk05
  • Carbide Insert Shape：Dome, Ballistic, Semi-Ballistic
  • Face Design：Drop Centre, Flat, Uniface
  • Skirt Design：Normal, Retrac, Straight Retrac
  • New Design：Rockbit
  • Qty of Inserts：12, 14
  • Diameter of Inserts：11mm, 12mm, 13mm
  • Flushing Hole Qty：4
  • Transport Package：Wood Box
  • Specification：CE, SGS
  • Trademark：Prodrill
  • Origin：China
  • HS Code：82071990
  • Production Capacity：5000 PCS , Month
  • Package size per unit product：15.00cm * 15.00cm * 30.00cm
  • Gross weight per unit product：6.000kg

Description

 Top hammer bits with T51 thread    Part numberDiameter Buttons Buttons Flushing gaugeFlushing  frontBodyFrontgaugefront51T89ND89mm8x12mm6x11mm14NormalDropcenter51T89RD89mm 6x11mm1 4RetrackDropcenter8x12mm
T51 Dia 89mm Retrac Dimensional Stone Quarrying Thread Button Bit
