Titanium Plated HSS Spiral Flute Metal Step Drill Bit Set

DANYANG DAMING TOOLS CO., LTD.
  • Customized：Customized
  • Standard：DIN, JIS, AISI
  • Type：Step Drill Bit
  • Material：High Speed Steel
  • Usage：Metal Drilling
  • Shank：Hex , Round , Triangle

Base Info

  • Model NO.：SDA001
  • Hardness：60-66HRC
  • Surface Treatment：Bright, Amber, Tin-Coated
  • Flute：Straight or Spiral
  • Point Angle：118 Pointed Angle, 90 Stepped Angle
  • Application：Metal Stainless Steel Drilling
  • Diameter：4mm-39mm
  • Transport Package：Plastic Box, Blister Card, Wooden Box, Metal Box
  • Specification：4mm-39mm
  • Trademark：DM
  • Origin：Danyang City, Jiangsu Province, China
  • HS Code：8207509000
  • Production Capacity：300000 Piece,Pieces Per Week

Description

Metric Size available:Item No.Size RangeStep No.Shank SizeSDA0014 - 12mm x 2mm56mmSDA0024 - 12 mm x 1mm96mmSDA0034 - 20mm x 2mm98mmSDA0044 - 22mm x 2mm108/10mmSDA0054 - 30mm x 2mm1410mmSDA0064 - 32mm x 2mm1510mmSDA0074 - 39mm x 2-3mm1410mmSDA0085 - 28mm710mmSDA0095 - 28.3mm1010mmSDA0105 - 35mm x 2-3mm1313mmSDA0116 - 18mm x 2mm710mmSDA0126 - 20mm x 2mm810mmSDA0136 - 24mm x 2mm1010mmSDA0146 - 25mm710mmSDA0156 - 26.75mm810mmSDA0166 - 30mm x 2mm1310mmSDA0176 - 30.5mm1010mmSDA0186 - 32mm810mmSDA0196 - 32mm910mmSDA0206 - 37mm1210mmSDA0216 - 38mm1210mmSDA0226 - 40mm1613mmSDA0239 - 36mm x 3mm1012mmSDA02410 - 20mm x 1mm1110mmSDA02512 - 20mm x 1mm910mmSDA02612.5 - 30.5mm712mmSDA02713 - 38mm1012mmSDA02814 - 24mm x 2mm613mmSDA02914 - 25mm713mmSDA03020 - 30mm x 1mm1113mmSDA03120 - 34mm x 2mm813mmSDA03230 - 40mm x 1mm1113mmSDA03340 - 50mm x 1mm1113mmSDA03450 - 60mm x 1mm1113mmSDA0355 - 30.5mm1312mmSDA0365 - 38mm1412mm
REAL SHOT

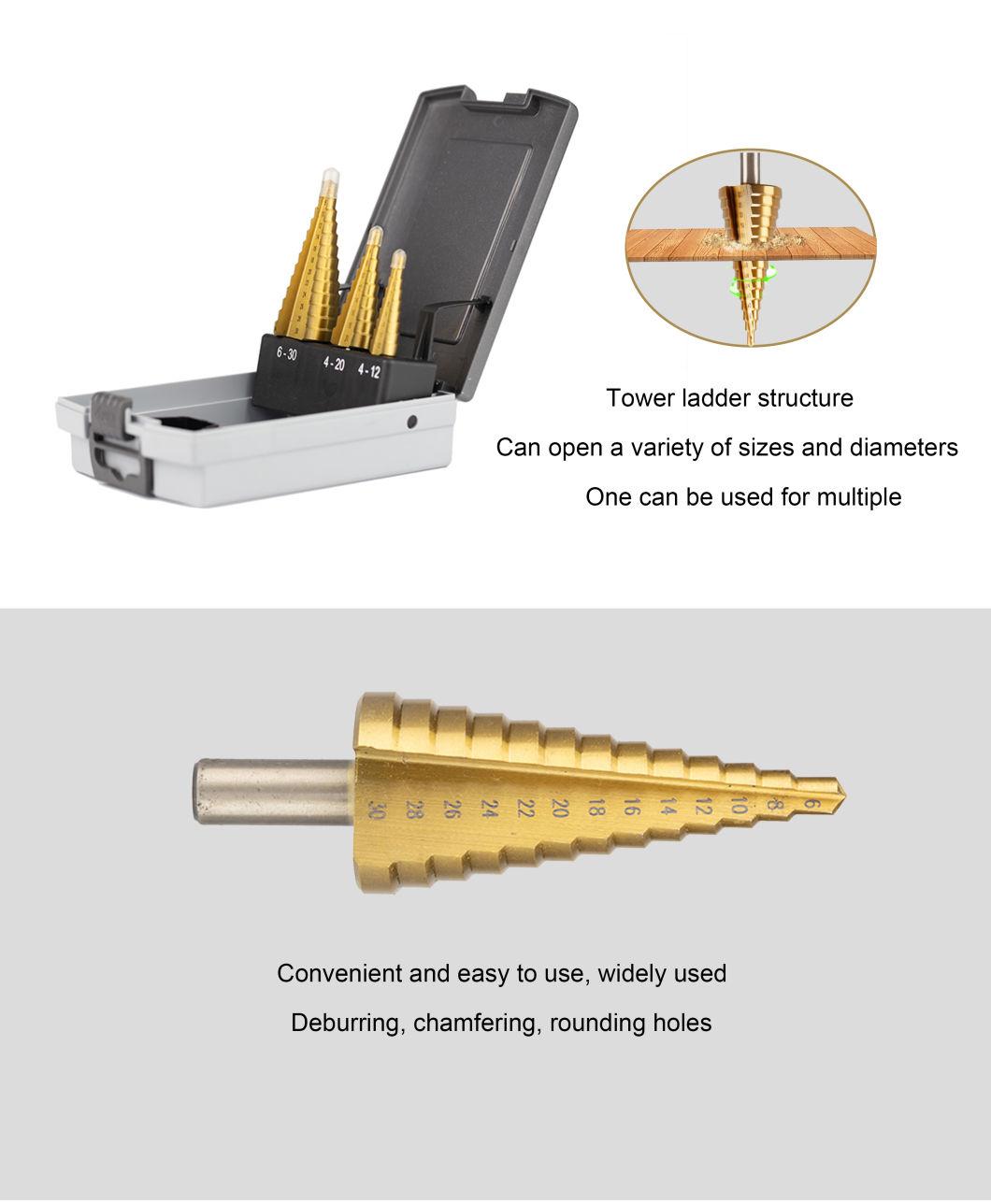

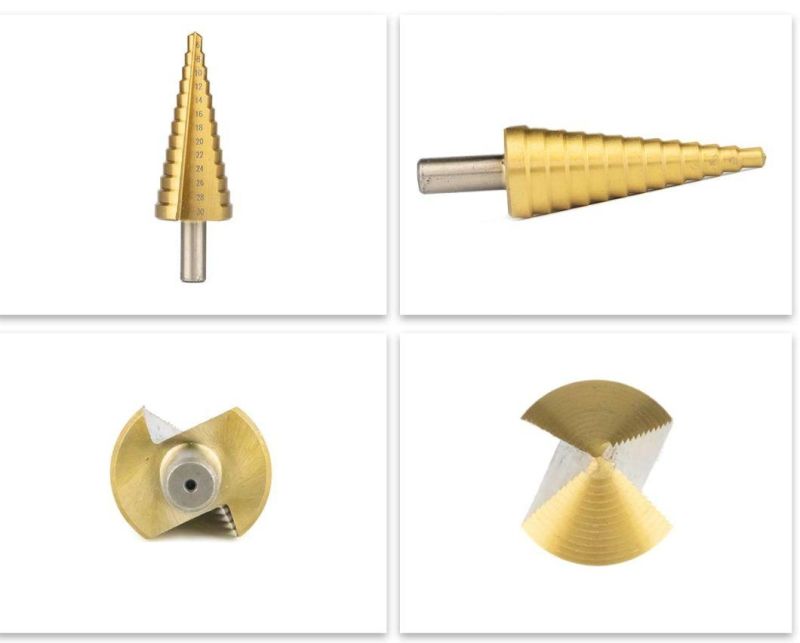

Titanium Plated HSS Spiral Flute Metal Step Drill Bit SetTitanium Plated HSS Spiral Flute Metal Step Drill Bit Set
PACKING & SHIPPING

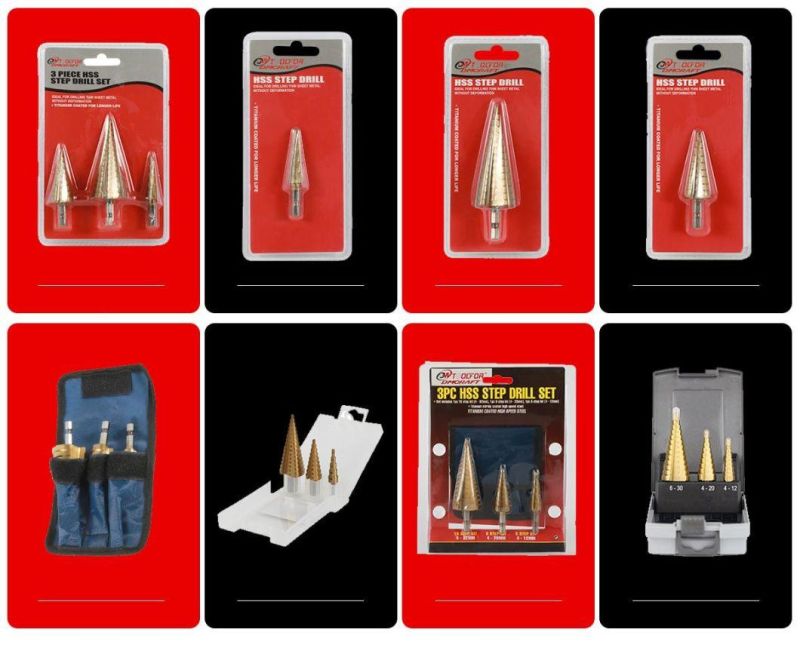

Titanium Plated HSS Spiral Flute Metal Step Drill Bit SetPackaging Details: Plastic Box, Blister Card, Wooden Box, Metal Box for Step Drill Bit

Shipping
1. TNT/FedEx/DHL/UPS for samples or under 45KG weight goods, Door to Door.
2. By Air or by Sea for batch goods, from airport (seaport) to airport(seaport).
3. Customers specifying freight forwarders or not.
4. Production Time: 3- 7 days for samples; 2-3.5 weeks for batch goods
 CERTIFICATE
In order to overcome the challenges that support solidarity and cooperation to create a better future
Titanium Plated HSS Spiral Flute Metal Step Drill Bit Set
 WIDELY USED

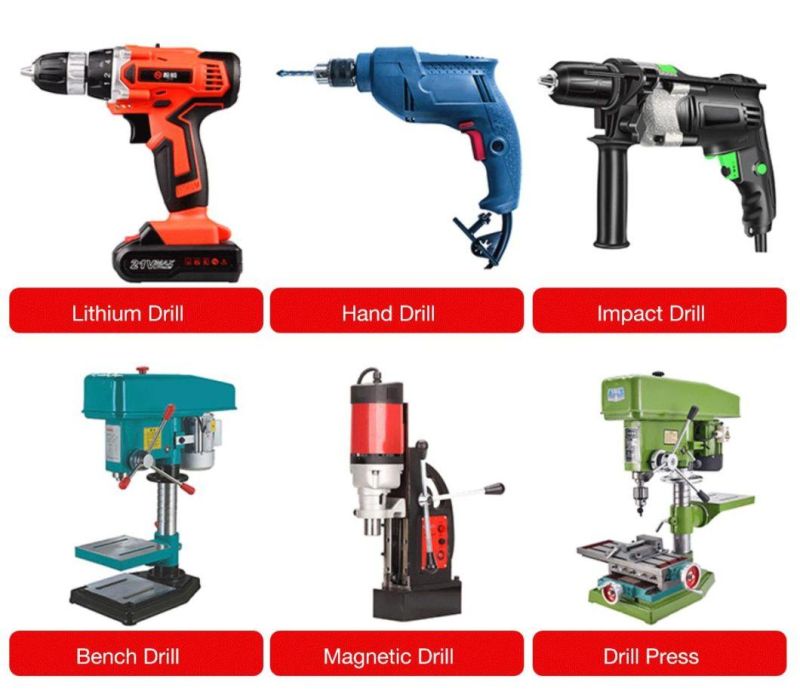

Household, Industrial Use

Titanium Plated HSS Spiral Flute Metal Step Drill Bit SetFEEDBACK
Titanium Plated HSS Spiral Flute Metal Step Drill Bit Set

More information about our products, welcome to visit :http://damingtools.en.made-in-china.com/
