• Model NO.：5216
• Carbide Type：Virgin Yg9
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Y Cutter Carbide Tip
• Flute Type：3h-Plus
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 10mm to 40mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：3600000,Year

Basic Info.

Model NO. 5216 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Y Cutter Carbide Tip Flute Type 3h-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 10mm to 40mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

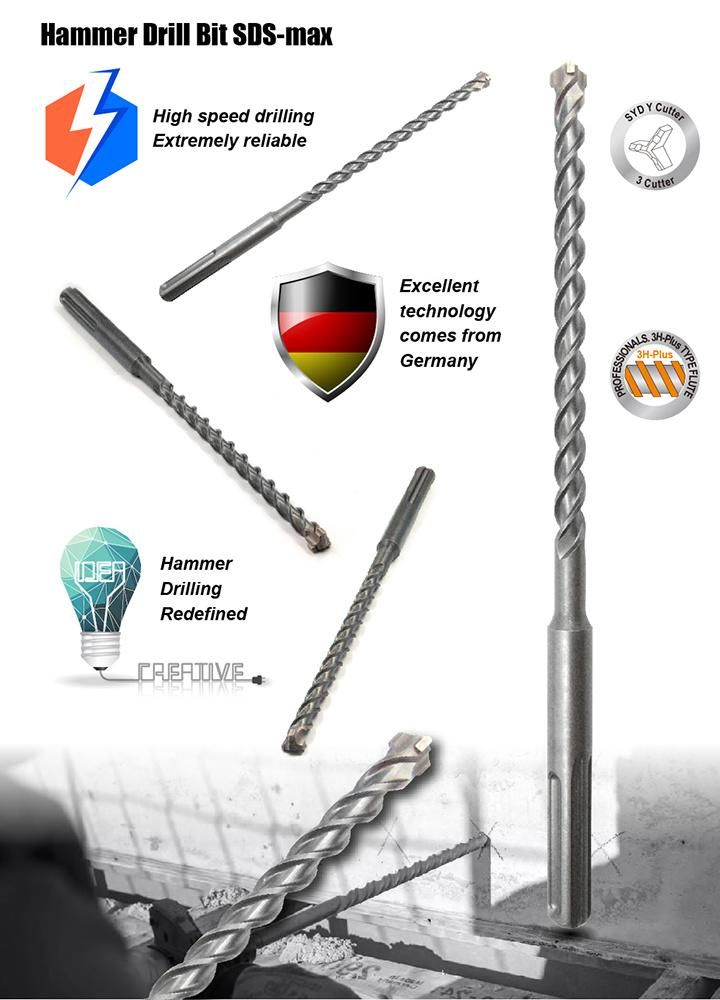

*Hammer Drill SDS max for Concrete Stone Drilling, Manufactured by HTT,  Y Cutter carbide tip made of virgin YG9.

* Carbide tips are patented Y cutter design for maxmize the drilling dust rejection atet for the higher speed.

* 3H-plus flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-max shank all 100% pass SDS-max gouge inspection.

* SGS approved anti-rusty oil treatment to protect the final users under Reach standard.



*Available sizes for Choices( The special sizes are also available on the customers' special request)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
5216.100300	10	160	300
5216.100340	10	200	340
5216.100540	10	400	540
5216.100690	10	550	690
5216.100920	10	800	920
5216.120300	12	160	300
5216.120320	12	170	320
5216.120340	12	200	340
5216.120370	12	230	370
5216.120520	12	380	520
5216.120540	12	400	540
5216.120570	12	430	570
5216.120670	12	530	670
5216.120690	12	550	690
5216.120920	12	800	920
5216.121500	12	1380	1500
5216.130320	13	180	320
5216.130340	13	200	340
5216.130540	13	400	540
5216.130670	13	530	670
5216.130690	13	550	690
5216.130920	13	800	920
5216.131500	13	1380	1500
5216.140320	14	170	320
5216.140340	14	200	340
5216.140370	14	230	370
5216.140520	14	380	520
5216.140540	14	400	540
5216.140570	14	430	570
5216.140670	14	530	670
5216.140690	14	550	690
5216.140920	14	800	920
5216.141320	14	1200	1320
5216.141500	14	1380	1500
5216.150340	15	200	340
5216.150540	15	400	540
5216.150670	15	530	670
5216.150690	15	550	690
5216.150920	15	800	920
5216.151320	15	1200	1320
5216.151500	15	1380	1500
5216.160320	16	180	320
5216.160340	16	200	340
5216.160370	16	230	370
5216.160520	16	380	520
5216.160540	16	400	540
5216.160570	16	430	570
5216.160670	16	530	670
5216.160690	16	550	690
5216.160920	16	800	920
5216.161320	16	1200	1320
5216.161500	16	1380	1500
5216.180320	18	180	320
5216.180340	18	200	340
5216.180370	18	230	370
5216.180520	18	380	520
5216.180540	18	400	540
5216.180570	18	430	570
5216.180670	18	530	670
5216.180690	18	550	690
5216.180920	18	800	920
5216.181320	18	1200	1320
5216.181500	18	1380	1500
5216.190340	19	200	340
5216.190540	19	400	540
5216.190670	19	530	670
5216.190690	19	550	690
5216.190920	19	800	920
5216.191500	19	1380	1500
5216.200320	20	180	320
5216.200340	20	200	340
5216.200370	20	230	370
5216.200520	20	380	520
5216.200540	20	400	540
5216.200570	20	430	570
5216.200670	20	530	670
5216.200690	20	550	690
5216.200920	20	800	920
5216.201320	20	1200	1320
5216.201500	20	1380	1500
5216.220320	22	180	320
5216.220340	22	200	340
5216.220370	22	230	370
5216.220520	22	380	520
5216.220540	22	400	540
5216.220570	22	430	570
5216.220670	22	530	670
5216.220690	22	550	690
5216.220920	22	800	920
5216.221320	22	1200	1320
5216.221500	22	1380	1500
5216.240340	24	200	340
5216.240540	24	400	540
5216.240570	24	430	570
5216.240670	24	530	670
5216.240690	24	550	690
5216.240920	24	800	920
5216.241320	24	1200	1320
5216.241500	24	1380	1500
5216.250320	25	180	320
5216.250340	25	200	340
5216.250370	25	230	370
5216.250520	25	380	520
5216.250540	25	400	540
5216.250570	25	430	570
5216.250670	25	530	670
5216.250690	25	550	690
5216.250920	25	800	920
5216.251320	25	1200	1320
5216.251500	25	1380	1500
5216.260340	26	200	340
5216.260540	26	400	540
5216.260670	26	550	670
5216.260920	26	800	920
5216.261320	26	1200	1320
5216.261500	26	1380	1500
5216.280320	28	180	320
5216.280340	28	200	340
5216.280370	28	250	370
5216.280520	28	380	520
5216.280540	28	420	540
5216.280570	28	450	570
5216.280670	28	550	670
5216.280690	28	570	690
5216.280920	28	800	920
5216.281320	28	1200	1320
5216.281500	28	1380	1500
5216.300320	30	180	320
5216.300340	30	200	340
5216.300370	30	250	370
5216.300520	30	400	520
5216.300540	30	420	540
5216.300570	30	450	570
5216.300670	30	550	670
5216.300920	30	800	920
5216.301320	30	1200	1320
5216.301500	30	1380	1500
5216.320320	32	180	320
5216.320340	32	200	340
5216.320370	32	250	370
5216.320520	32	400	520
5216.320540	32	420	540
5216.320570	32	450	570
5216.320670	32	550	670
5216.320920	32	800	920
5216.321320	32	1200	1320
5216.321500	32	1380	1500
5216.350320	35	180	320
5216.350340	35	200	340
5216.350370	35	250	370
5216.350520	35	400	520
5216.350540	35	420	540
5216.350570	35	450	570
5216.350670	35	550	670
5216.350920	35	800	920
5216.351320	35	1200	1320
5216.351500	35	1380	1500
5216.360370	36	250	370
5216.360570	36	450	570
5216.360670	36	550	670
5216.360920	36	800	920
5216.361320	36	1200	1320
5216.380320	38	180	320
5216.380340	38	200	340
5216.380370	38	250	370
5216.380520	38	400	520
5216.380540	38	420	540
5216.380570	38	450	570
5216.380670	38	550	670
5216.380920	38	800	920
5216.381320	38	1200	1320
5216.400320	40	180	320
5216.400340	40	200	340
5216.400370	40	250	370
5216.400540	40	420	540
5216.400570	40	450	570
5216.400670	40	550	670
5216.400920	40	800	920
5216.401320	40	1200	1320
