Pgm German Quality Tct Multipurpose Universal Drill Cylindrical Shank for Masonry, Metal, Wood, Fiber, Tile, Concrete, Brick, Cement Drilling
ZHENJIANG HTT TOOL CO., LTD.- Customized：Customized
- Standard：DIN
- Type：Twist Drill Bit
- Material：Tungsten Carbide
- Usage：Wood Drilling, Metal Drilling, Masonry Drilling
- Carbide Tip Type：Ceratizit Bc05
Base Info
- Model NO.：3753
- Steel Shaft Type：40cr
- Surface Treatment：Colorful Flute & Polished Roundness
- Shank Type：Cylindrical
- Flute Type：H
- Tip Grinding：Diamond Ground Tip 4 Face Edges
- Welding Type：AVS.(Automatic Vacuum Soldering)
- Certificate：Pgm
- Transport Package：Paper Hanger, PVC Bag, Skin Pack, Blister Pack
- Specification：3mm to 16mm diameter
- Trademark：OEM, HTT
- Origin：China
- HS Code：8207509000
- Production Capacity：2400000
Description
Basic Info.
Model NO. 3753 Steel Shaft Type 40cr Surface Treatment Colorful Flute & Polished Roundness Shank Type Cylindrical Flute Type H Tip Grinding Diamond Ground Tip 4 Face Edges Welding Type AVS.(Automatic Vacuum Soldering) Certificate Pgm Transport Package Paper Hanger, PVC Bag, Skin Pack, Blister Pack Specification 3mm to 16mm diameter Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 2400000Product Description

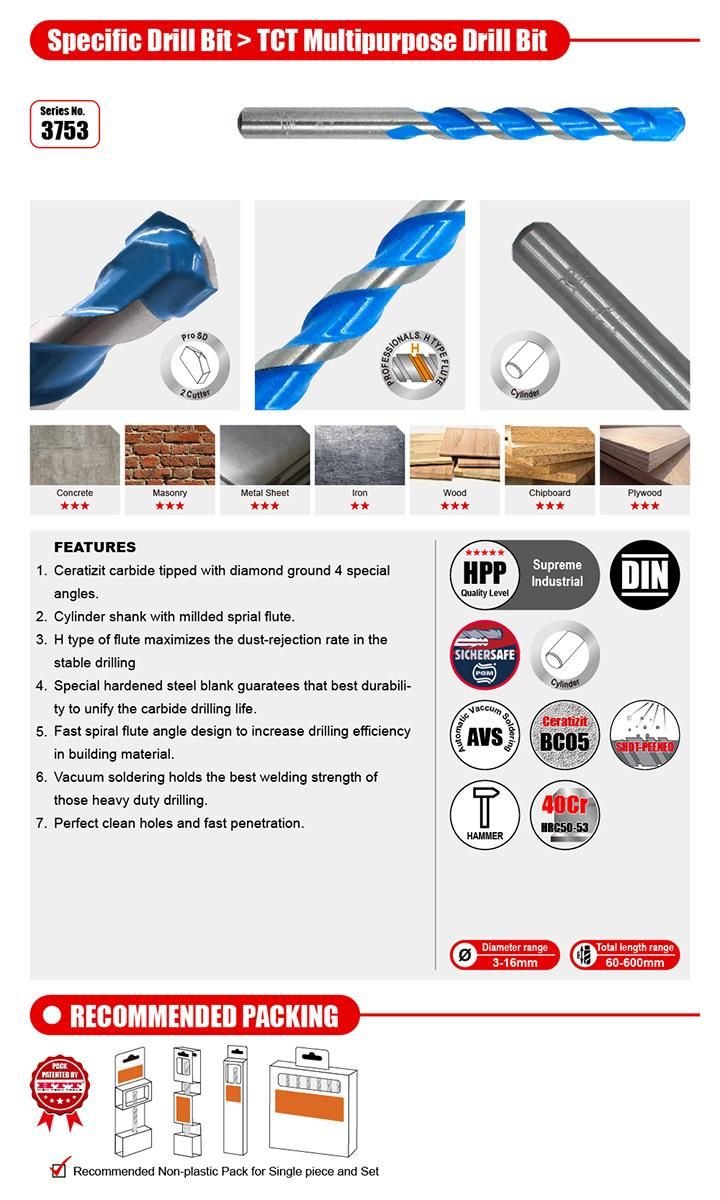

*TCT Universal Drill Bit with Cylindrical shank, color fluted(pointed by the customers), and polished roundness for multi-purpose drilling symbol, Ceratizit BC05 carbide tipped with AVS. technology on Supreme HPP quality performance.*Diamond ground special angle and sharp edges guarantee the cutting performance in the different materials on higher speed and constant stability.
*Carbide tips are supplied by Ceratizit made in Luxemburg to guarantee higher durability and wear resistance.
*H flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.
*Lower vibration for an easy longer-time drilling job.
* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.
* PGM certificated carbide size, carbide welded symmetry, and rotary run-out straightness for industrial professional applications.
*Other special sizes are also available on the customers' special requests.
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 3753.030060 | 3 | 30 | 60 |
| 3753.030070 | 3 | 35 | 70 |
| 3753.030085 | 3 | 45 | 85 |
| 3753.030100 | 3 | 60 | 100 |
| 3753.035060 | 3.5 | 30 | 60 |
| 3753.035070 | 3.5 | 35 | 70 |
| 3753.035085 | 3.5 | 45 | 85 |
| 3753.040075 | 4 | 35 | 75 |
| 3753.040085 | 4 | 45 | 85 |
| 3753.040090 | 4 | 50 | 90 |
| 3753.040150 | 4 | 110 | 150 |
| 3753.045085 | 4.5 | 45 | 85 |
| 3753.045090 | 4.5 | 50 | 90 |
| 3753.045150 | 4.5 | 110 | 150 |
| 3753.050085 | 5 | 45 | 85 |
| 3753.050090 | 5 | 45 | 90 |
| 3753.050095 | 5 | 50 | 95 |
| 3753.050100 | 5 | 60 | 100 |
| 3753.050150 | 5 | 110 | 150 |
| 3753.050250 | 5 | 200 | 250 |
| 3753.050300 | 5 | 250 | 300 |
| 3753.050400 | 5 | 260 | 400 |
| 3753.050500 | 5 | 360 | 500 |
| 3753.055085 | 5.5 | 45 | 85 |
| 3753.055095 | 5.5 | 50 | 95 |
| 3753.055100 | 5.5 | 60 | 100 |
| 3753.055150 | 5.5 | 110 | 150 |
| 3753.060100 | 6 | 60 | 100 |
| 3753.060115 | 6 | 70 | 115 |
| 3753.060150 | 6 | 110 | 150 |
| 3753.060200 | 6 | 130 | 200 |
| 3753.060250 | 6 | 180 | 250 |
| 3753.060260 | 6 | 190 | 260 |
| 3753.060300 | 6 | 230 | 300 |
| 3753.060400 | 6 | 340 | 400 |
| 3753.060600 | 6 | 460 | 600 |
| 3753.065100 | 6.5 | 60 | 100 |
| 3753.065115 | 6.5 | 70 | 115 |
| 3753.065150 | 6.5 | 110 | 150 |
| 3753.065200 | 6.5 | 130 | 200 |
| 3753.065260 | 6.5 | 190 | 260 |
| 3753.065300 | 6.5 | 230 | 300 |
| 3753.065400 | 6.5 | 340 | 400 |
| 3753.070100 | 7 | 60 | 100 |
| 3753.070115 | 7 | 70 | 115 |
| 3753.070120 | 7 | 80 | 120 |
| 3753.070150 | 7 | 110 | 150 |
| 3753.070300 | 7 | 230 | 300 |
| 3753.070400 | 7 | 340 | 400 |
| 3753.070500 | 7 | 360 | 500 |
| 3753.080120 | 8 | 80 | 120 |
| 3753.080150 | 8 | 110 | 150 |
| 3753.080200 | 8 | 130 | 200 |
| 3753.080250 | 8 | 180 | 250 |
| 3753.080260 | 8 | 190 | 260 |
| 3753.080300 | 8 | 230 | 300 |
| 3753.080400 | 8 | 340 | 400 |
| 3753.080600 | 8 | 460 | 600 |
| 3753.090120 | 9 | 80 | 120 |
| 3753.090150 | 9 | 110 | 150 |
| 3753.095120 | 9.5 | 80 | 120 |
| 3753.095150 | 9.5 | 110 | 150 |
| 3753.100120 | 10 | 80 | 120 |
| 3753.100150 | 10 | 110 | 150 |
| 3753.100200 | 10 | 135 | 200 |
| 3753.100250 | 10 | 180 | 250 |
| 3753.100260 | 10 | 190 | 260 |
| 3753.100300 | 10 | 230 | 300 |
| 3753.100400 | 10 | 340 | 400 |
| 3753.100600 | 10 | 460 | 600 |
| 3753.110120 | 11 | 80 | 120 |
| 3753.110150 | 11 | 110 | 150 |
| 3753.120130 | 12 | 80 | 130 |
| 3753.120150 | 12 | 90 | 150 |
| 3753.120200 | 12 | 150 | 200 |
| 3753.120250 | 12 | 180 | 250 |
| 3753.120260 | 12 | 190 | 260 |
| 3753.120300 | 12 | 230 | 300 |
| 3753.120400 | 12 | 340 | 400 |
| 3753.120600 | 12 | 460 | 600 |
| 3753.130130 | 13 | 80 | 130 |
| 3753.130160 | 13 | 90 | 150 |
| 3753.140150 | 14 | 90 | 150 |
| 3753.140200 | 14 | 135 | 200 |
| 3753.140250 | 14 | 190 | 250 |
| 3753.140260 | 14 | 200 | 260 |
| 3753.140300 | 14 | 230 | 300 |
| 3753.140400 | 14 | 340 | 400 |
| 3753.140600 | 14 | 460 | 600 |
| 3753.160150 | 16 | 90 | 150 |
| 3753.160200 | 16 | 135 | 200 |
| 3753.160250 | 16 | 200 | 260 |
| 3753.160300 | 16 | 230 | 300 |
| 3753.160400 | 16 | 340 | 400 |
| 3753.160600 | 16 | 460 | 600 |
