• Size：Various
• Trial Order：Acceptable
• Coating：Aitin,Tin
• Trade Terms：CIF, FOB, EXW
• Transport Package：in Cartons
• Specification：5.0*240-10LS
• Trademark：M&J
• Origin：China
• Production Capacity：10000000pieces,Year

Basic Info.

Size Various Trial Order Acceptable Coating Aitin/Tin Trade Terms CIF/ FOB/ EXW Transport Package in Cartons Specification 5.0*240-10LS Trademark M&J Origin China Production Capacity 10000000pieces/Year

Product Description

Deep Hole Drilling Tungsten Carbide Gun Drill Bits

Gun drill is considered to be used when the hole depth with diameter range of 2.0~50mm up to or exceeds ten times the diameter, as the gun drill provides high hole precision, accurate hole position, excellent hole surface finishes, good straightness and concentricity. It can be easily applied to process various kinds of deep holes, and also an ideal solution for the special deep holes, such as cross-holes, blind holes and flat-bottomed blind holes etc.

^{Drivers Specification of Cemented Carbide Gun Drill:}

Type	L1	L2	X	M	Drill Dia.
Φ10*40	40	46	24.3	-	1.900-7.099
Φ16*45	45	53	31	-	1.900-12.099
Φ16*50	50	58	47.5	-	1.900-12.099
Φ25*70	70	78	34	-	1.900-19.799
Φ10*40	42	55	24.3	-	7.100-9.999
Φ16*45	45	65	31	-	11.400-14.949
Φ16*50	52	75	47.5	-	11.400-14.949
Φ25*70	72	105	34	-	19.800-24.799
Φ16*50	50	58	47.5	-	1.900-8.699
Φ12.7*38.1	38.1	-	25.4	-	1.900-8.299
Φ19.05*69.8	69.8	-	44.4	-	1.900-14.949
Φ25.4*69.8	69.8	-	57.1	-	1.900-19.799
Φ31.57*69.8	69.8	-	57.1	-	1.900-25.999
Φ38.1*69.8	69.8	-	57.1	-	1.900-32.999
Φ12.7*38.1	38.1	58	25.4	-	8.300-12.499
Φ19.05*69.8	69.8	100	44.4	-	14.95-18.799
Φ25.4*69.8	69.8	105	57.1	-	19.8-24.799
Φ31.75*69.8	69.8	100	57.1	-	26.0-30.999
Φ38.1*69.8	69.8	100	57.1	-	33.0-40.0
Φ10*68	68	-	35	M6*0.5	1.9-6.799
Φ16*90	90	-	37	M10*1	1.9-12.099
Φ25*112	112	-	45	M16*1.5	1.9-19.799
Φ10*68	68	81	35	M6*0.5	6.8-9.999
Φ16*90	90	110	37	M10*1	11.4-14.949
Φ25*112	112	142	45	M16*1.5	19.8-24.799
...	...	...	...	...	...

If you want to know more about our products, please click http://mariejmetals.en.made-in-china.com/

<sup>Packaging & Shipping
Our Packaging


Our Shipping</sup>
We mainly choose the following delivery ways:
Shipment: by Express/ by Air /by Sea
We can arrange shipment according to our customers' requests.
If there is any problem related to the shipping, please feel free to contact us.


Our Services
1. We will try our best to reply our customers' requests within 24 hours.
2. We will maintain effective and efficient communications with our customers.
3. We provide first-class quality control and after-sale services.


Supplying Services

Products we supply and make are:

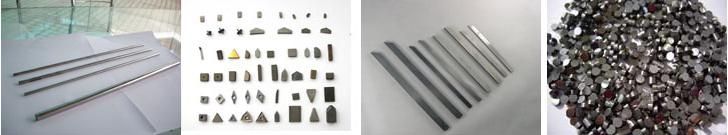

1. Tungsten carbide products:
Carbide Rods, Carbide Bars, Carbide Strips, Carbide Plates, STB Carbide Blanks, Drawing Dies, Cold Forginng Dies, Carbide Disc Cutters, Carbide Inserts, Carbide Shims, Carbide Burrs and Carbide Burr Blanks, Carbide Mining Bits, Carbide Drilling Bits, Carbide Cutting Tools for Wood and Bamboos, Tile Cutter Wheels, Scriber Tips, Customized Carbide Products etc.

2. Titanium and titanium alloy products:
Titanium Rods, Titanium Tubes, Titanium Pipe Fittings, Titanium Plates, Titanium Sheets, Titanium Foils, Titanium Wires, Titanium Nuts and Bolts, Titanium Brazing and Casting, Cutomized Titanium Products etc.


Quality Control
* We will inspect and test all products after finishing production and before delivery.
* We can provide dimension & inspection certificate as customers' requirements.
* We also can provide customers' samples dimensional verification.


Company Information
Marie Jay's Metal Products Co., Limited's main focus is in the metal-processing industry. We specializes in design, development, and production of metal products in the fields of tungsten carbide products, titanium & titanium alloy products, nitinol products, molybdenum products, and other casted or machined products, such as ductile iron casted & machined products, gray iron casted & machined products, aluminum casted & machined products, and copper casted or forged & machined products etc. We especially pay attention on tungsten carbide products, titanium & titanium alloy products, and nitinol products.

We are a professional Chinese manufacturer and supplier. And also we work with some factories by joint stock method. Our prices are competitive, and we can supply good quality products and comprehensive services as well.
We export our products and develop new products according to customers' requirements to USA, Mexico, South America, Germany and western countries etc. by working with an export company.

Work with us, you will benefit financially and conveniently  from our good quality and services, and competitive prices.

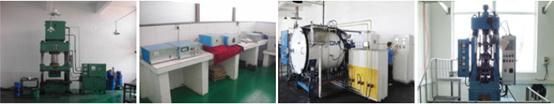

Photos of Tungsten Carbide Equipments

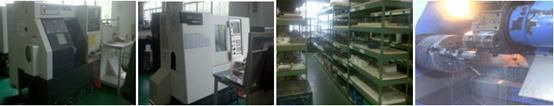

Photos of Machines


FAQ
C: Why should I choose your company for partner?
M: As you know, the raw material of low price makes your products more competitive in the market. That means it will make you sell much easier.
