• Model NO.：2616
• Carbide Type：Virgin Yg9
• Steel Type：40cr
• Surface Treatment：Shot-Peened
• Cutter Type：Y Cutter Carbide Tip
• Flute Type：3h-Plus
• Marking：Stamped
• Welding Type：AVS. (Automatic Vacuum Soldering)
• Certificated：Bosch Audited SDS-Plus Logo
• Transport Package：Clip Hanger, Color Paper Hanger, Paper Box, Tubes
• Specification：Diameter 5mm to 28mm
• Trademark：OEM, HTT
• Origin：China
• HS Code：8207509000
• Production Capacity：3600000,Year

Basic Info.

Model NO. 2616 Carbide Type Virgin Yg9 Steel Type 40cr Surface Treatment Shot-Peened Cutter Type Y Cutter Carbide Tip Flute Type 3h-Plus Marking Stamped Welding Type AVS. (Automatic Vacuum Soldering) Certificated Bosch Audited SDS-Plus Logo Transport Package Clip Hanger, Color Paper Hanger, Paper Box, Tubes Specification Diameter 5mm to 28mm Trademark OEM, HTT Origin China HS Code 8207509000 Production Capacity 3600000/Year

Product Description

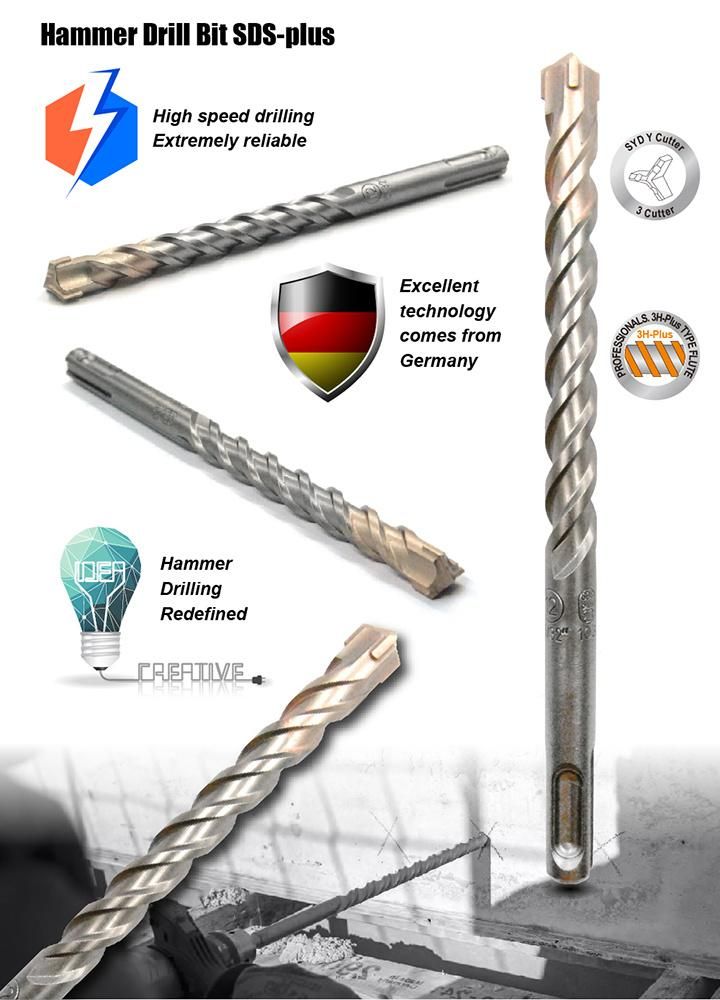

*Hammer Drill SDS plus for Concrete Stone Drilling, Manufactured by HTT, Y cutter carbide tip made of virgin YG9 formulation in the patent of HTT.

* Y Cutter Carbide tips are designed for higher dust drilling rejection efficiency to gain the stable fastest drilling speed.

* 3H-plus type of flute design maximizes the drilling dust rejection rate to fast the drilling speed with more comfortable operation feelings.

* Lower vibration for easy longer time drilling job.

* SDS-plus shank all 100% pass Bosch audited SDS-plus gouge inspection with the stamped logo of SDS-plus audited by Bosch.

* SGS-approved anti-rust oil treatment to protect the final users under Reach standard.




*Available sizes for Choices( The special sizes are also available upon the customers' special request)

Item Number	Diameter(mm)	Working Length(mm)	Overall Length(mm)
2616.050110	5	60	110
2616.055110	5.5	60	110
2616.060110	6	60	110
2616.065110	6.5	60	110
2616.070110	7	60	110
2616.080110	8	60	110
2616.090110	9	60	110
2616.100110	10	60	110
2616.110110	11	60	110
2616.050160	5	110	160
2616.055160	5.5	110	160
2616.060160	6	110	160
2616.065160	6.5	110	160
2616.070160	7	110	160
2616.080160	8	110	160
2616.090160	9	110	160
2616.100160	10	110	160
2616.110160	11	110	160
2616.120160	12	110	160
2616.130160	13	110	160
2616.140160	14	110	160
2616.150160	15	110	160
2616.160160	16	110	160
2616.180160	18	110	160
2616.190160	19	110	160
2616.200160	20	110	160
2616.220160	22	110	160
2616.240160	24	110	160
2616.250160	25	110	160
2616.260160	26	110	160
2616.280160	28	110	160
2616.050180	5	130	180
2616.055180	5.5	130	180
2616.060180	6	130	180
2616.065180	6.5	130	180
2616.080180	8	130	180
2616.100180	10	130	180
2616.050210	5	160	210
2616.055210	5.5	160	210
2616.060210	6	160	210
2616.065210	6.5	160	210
2616.070210	7	160	210
2616.080210	8	160	210
2616.090210	9	160	210
2616.100210	10	160	210
2616.110210	11	160	210
2616.120210	12	160	210
2616.130210	13	160	210
2616.140210	14	160	210
2616.150210	15	160	210
2616.160210	16	160	210
2616.180210	18	160	210
2616.190210	19	160	210
2616.200210	20	160	210
2616.220210	22	160	210
2616.240210	24	160	210
2616.250210	25	160	210
2616.260210	26	160	210
2616.280210	28	160	210
2616.050260	5	210	260
2616.055260	5.5	210	260
2616.060260	6	210	260
2616.065260	6.5	210	260
2616.070260	7	210	260
2616.080260	8	210	260
2616.090260	9	210	260
2616.100260	10	210	260
2616.110260	11	210	260
2616.120260	12	210	260
2616.130260	13	210	260
2616.140260	14	210	260
2616.150260	15	210	260
2616.160260	16	210	260
2616.180260	18	210	260
2616.190260	19	210	260
2616.200260	20	210	260
2616.220260	22	210	260
2616.240260	24	210	260
2616.250260	25	210	260
2616.260260	26	210	260
2616.280260	28	210	260
2616.300260	30	210	260
2616.050310	5	260	310
2616.055310	5.5	260	310
2616.060310	6	260	310
2616.065310	6.5	260	310
2616.070310	7	260	310
2616.080310	8	260	310
2616.090310	9	260	310
2616.100310	10	260	310
2616.110310	11	260	310
2616.120310	12	260	310
2616.130310	13	260	310
2616.140310	14	260	310
2616.150310	15	260	310
2616.160310	16	260	310
2616.180310	18	260	310
2616.190310	19	260	310
2616.200310	20	260	310
2616.220310	22	260	310
2616.240310	24	260	310
2616.250310	25	260	310
2616.260310	26	260	310
2616.280310	28	260	310
2616.050350	5	300	350
2616.055350	5.5	300	350
2616.060350	6	300	350
2616.065350	6.5	300	350
2616.070350	7	300	350
2616.080350	8	300	350
2616.090350	9	300	350
2616.100350	10	300	350
2616.110350	11	300	350
2616.120350	12	300	350
2616.130350	13	300	350
2616.140350	14	300	350
2616.150350	15	300	350
2616.160350	16	300	350
2616.180350	18	300	350
2616.190350	19	300	350
2616.200350	20	300	350
2616.220350	22	300	350
2616.240350	24	300	350
2616.250350	25	300	350
2616.260350	26	300	350
2616.280350	28	300	350
2616.050410	5	360	410
2616.055410	5.5	360	410
2616.060410	6	360	410
2616.065410	6.5	360	410
2616.070410	7	360	410
2616.080410	8	360	410
2616.090410	9	360	410
2616.100410	10	360	410
2616.110410	11	360	410
2616.120410	12	360	410
2616.130410	13	360	410
2616.140410	14	360	410
2616.150410	15	360	410
2616.160410	16	360	410
2616.180410	18	360	410
2616.190410	19	360	410
2616.200410	20	360	410
2616.220410	22	360	410
2616.240410	24	360	410
2616.250410	25	360	410
2616.260410	26	360	410
2616.280410	28	360	410
2616.050460	5	410	460
2616.055460	5.5	410	460
2616.060460	6	410	460
2616.065460	6.5	410	460
2616.070460	7	410	460
2616.080460	8	410	460
2616.090460	9	410	460
2616.100460	10	410	460
2616.110460	11	410	460
2616.120460	12	410	460
2616.130460	13	410	460
2616.140460	14	410	460
2616.150460	15	410	460
2616.160460	16	410	460
2616.180460	18	410	460
2616.190460	19	410	460
2616.200460	20	410	460
2616.220460	22	410	460
2616.240460	24	410	460
2616.250460	25	410	460
2616.260460	26	410	460
2616.280460	28	410	460
2616.300460	30	410	460
2616.060550	6	500	550
2616.065550	6.5	500	550
2616.070550	7	500	550
2616.080550	8	500	550
2616.090550	9	500	550
2616.100550	10	500	550
2616.110550	11	500	550
2616.120550	12	500	550
2616.130550	13	500	550
2616.140550	14	500	550
2616.150550	15	500	550
2616.160550	16	500	550
2616.180550	18	500	550
2616.190550	19	500	550
2616.200550	20	500	550
2616.220550	22	500	550
2616.240550	24	500	550
2616.250550	25	500	550
2616.260550	26	500	550
2616.280550	28	500	550
2616.060600	6	550	600
2616.065600	6.5	550	600
2616.070600	7	550	600
2616.080600	8	550	600
2616.090600	9	550	600
2616.100600	10	550	600
2616.110600	11	550	600
2616.120600	12	550	600
2616.130600	13	550	600
2616.140600	14	550	600
2616.150600	15	550	600
2616.160600	16	550	600
2616.180600	18	550	600
2616.190600	19	550	600
2616.200600	20	550	600
2616.220600	22	550	600
2616.240600	24	550	600
2616.250600	25	550	600
2616.260600	26	550	600
2616.280600	28	550	600
2616.080800	8	750	800
2616.090800	9	750	800
2616.100800	10	750	800
2616.110800	11	750	800
2616.120800	12	750	800
2616.130800	13	750	800
2616.140800	14	750	800
2616.150800	15	750	800
2616.160800	16	750	800
2616.180800	18	750	800
2616.190800	19	750	800
2616.200800	20	750	800
2616.220800	22	750	800
2616.240800	24	750	800
2616.250800	25	750	800
2616.260800	26	750	800
2616.280800	28	750	800
2616.101000	10	950	1000
2616.111000	11	950	1000
2616.121000	12	950	1000
2616.131000	13	950	1000
2616.141000	14	950	1000
2616.151000	15	950	1000
2616.161000	16	950	1000
2616.181000	18	950	1000
2616.191000	19	950	1000
2616.201000	20	950	1000
2616.221000	22	950	1000
2616.241000	24	950	1000
2616.251000	25	950	1000
2616.261000	26	950	1000
2616.281000	28	950	1000
