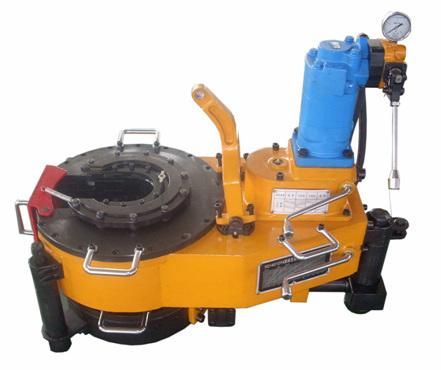

20Y hydraulic power tong force in the oil field workover operations on dumping 23/8" ,-3½"drill pipe, and 2 7/8"- 4½" tubing and 4½"-5½" casing of a dynamic open-clamp . It has the following features:
1, the clamp from the torque hydraulic motor driven back by clamp rack plunger drive, drive concise, compact structure.
2, Lord, forceps are used in the dorsal surface of clamping rollers climbing, cards tight, reliable and timely release.
3, the first with the upper and lower clamp Fuzheng outside agencies, rotating stable, long service life.
4, Lord, matching clamp back, reversing valve can be manually manipulated simultaneous release clamping or string.
5, friction braking institutions in the clamp heads of the adjustment, maintenance more convenient.
6, and reset manually reversing valve knob with, for the flexible and convenient.
7, equipped with a retractable security doors installed, the protective effect from security Technical parameters1, the scope of application Ø73 -140mm Low maximum torque 20kN.m (14872ft-lbs)
2,the lowest maximum torque 11.4 kN.m (8477 ft-lbs)
Maximum torque of the high-grade 5.5 kN.m (4090 ft-lbs)
3,the largest high-grade torque 2.3 kN.m (1710ft-lbs)
The largest high-grade speed 76 r/min
4,the largest high-grade speed 51r/min
5,the largest of the low speed 20r/min Low maximum speed 8.7r/min
6,the largest oil pressure 12MPa (1740psi) Of the largest oil supp 120r/min
7,Dimension (L * W *H) 1118*660*840mm
8,shipments quality 550kg (1210lbs) |
 |
