• Model NO.：T2-76, T2-86, T2-101, B101, B116, B131, T6-101
• Advantage：High Performance High Abrasion
• Colors：Optional
• Delivery Time：in Stock or 7 Days
• Shipment：by Express or by Sea
• Transport Package：Cartons or Ply-Wooden Case
• Specification：T2-76, T2-86, T2-101, B101, B116, B131, T6-101
• Trademark：Hanlinsky
• Origin：China
• HS Code：820719
• Production Capacity：1800 Pieces,Month

Basic Info.

Model NO. T2-76, T2-86, T2-101, B101, B116, B131, T6-101 Advantage High Performance High Abrasion Colors Optional Delivery Time in Stock or 7 Days Shipment by Express or by Sea Transport Package Cartons or Ply-Wooden Case Specification T2-76, T2-86, T2-101, B101, B116, B131, T6-101 Trademark Hanlinsky Origin China HS Code 820719 Production Capacity 1800 Pieces/Month

Product Description

Our Company

Hunan Hanlinsky International Corporation is a leading chinese supplier and supporter of high quality mining machineries, crusher wear parts, Bi-metal & MMC new materials, rock drilling systems and relative services for mining & metallurgical industry. The corporation delivers the full, economical and sustainable solutions for global partners.

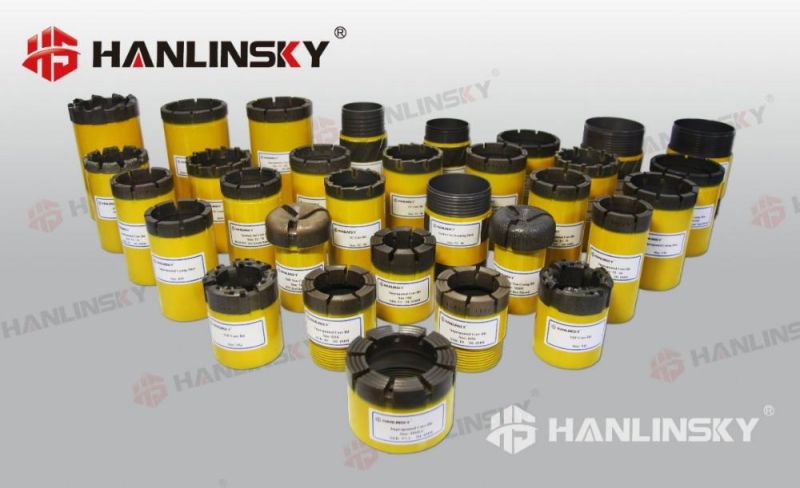

Description

Impregnated Diamond Core Bit

Impregnated Diamond Core Bit is made from high-quality synthetic diamond and metal powder which could be used in various types of strata. The best effect is achieved through the flexible design according to the different strata and parameters of drilling equipment.

Surface Set Diamond Core Bit

Surface Set Diamond Bit is produced from a single layer of natural diamond setting on the surface of bit crown with hard matrix, and primarily recommended for drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bit. It is also recommended for drilling harder formations, which the available rotary speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.

In most cases, Surface Set Diamond Bits will provide higher rates of penetration than in softer formations due to the greater degree of exposure of the individual diamond crystals.

Tungsten Carbide Core Bit

Tungsten Carbide Core Bits are designed especially for soil investigation and geotechnical drilling, but also suitable in some applications for mineral exploration. As the tungsten Carbide is softer than diamond stones, the formations are limited in the range of soft or some medium rocks, like the overburden drilling, cleaning of drill holes, e.g. for the removal of steel fragments in hole.

PDC Core Bit

PDC Core Bit has a long working Life, very fast penetration and high percentage core recovery in soft to hard rock formations. PDC bit mostly be used for drilling with air, mud or foam flushing.


Bit Availability

1	A-Gauge Core Bits	AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
2	B-Gauge Core Bits	BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
3	N-Gauge Core Bits	NQ, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW
4	H-Gauge Core Bits	HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.380, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
5	P- Gauge Core Bits	PQ, PQ3, PWF-Long, PWF-Short
6	S- Gauge Core Bits	SWF-Long, SWF-Short
7	U- Gauge Core Bits	UWF-Long, UWF-Short
8	Z- Gauge Core Bits	Z- Gauge Core Bits: ZWF-Long, ZWF-Short
9	T, TT, T2 &TB Series Metric Core Bits	T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
10	T6 Series Metric Core Bits	T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
11	T6S Series Metric Core Bits	T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
12	B Series(ISO3552-1) Metric Core Bits	B36, B46, B56, B65, B76, B86, B101, B116, B131, B146
13	Chinese Standard Metric Core Bits for Double Tube	φ 56, φ 59, φ 75, φ 91
14	Chinese Standard Metric Core Bits for Wireline	φ 59, φ 75, φ 91
15	Chinese Standard Metric Core Bits for Single Tube	φ 36, φ 46, φ 56, φ 59, φ 75, φ 91, φ 110, φ 130, φ 160, φ 170, φ 219, φ 275

Note: for more details and other CDDA, DCAMA, Crealius, and ISO sizes, please make an inquiry to our engineers.
