• Model NO.：M1952,M323
• Specification：all size
• Trademark：FANXI
• Origin：China
• HS Code：8205100000
• Production Capacity：500pieces,Year

Basic Info.

Model NO. M1952/M323 Specification all size Trademark FANXI Origin China HS Code 8205100000 Production Capacity 500pieces/Year

Product Description

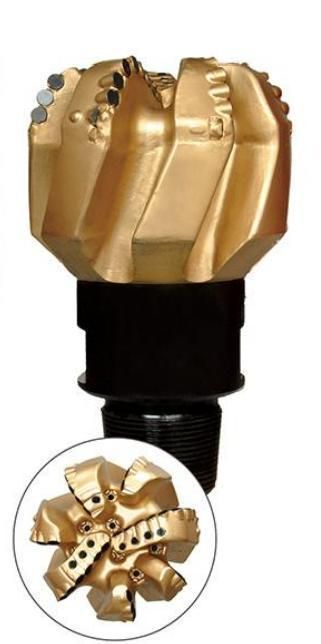

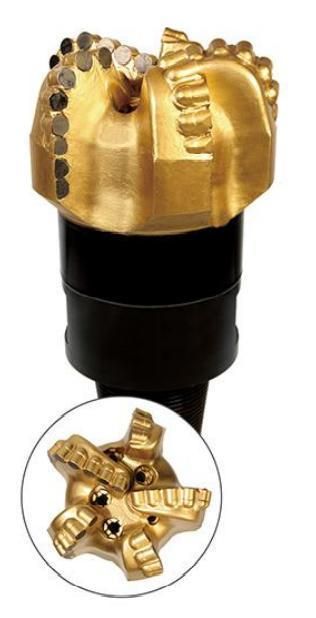

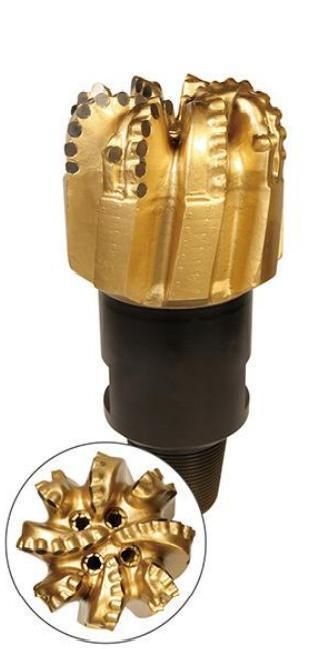

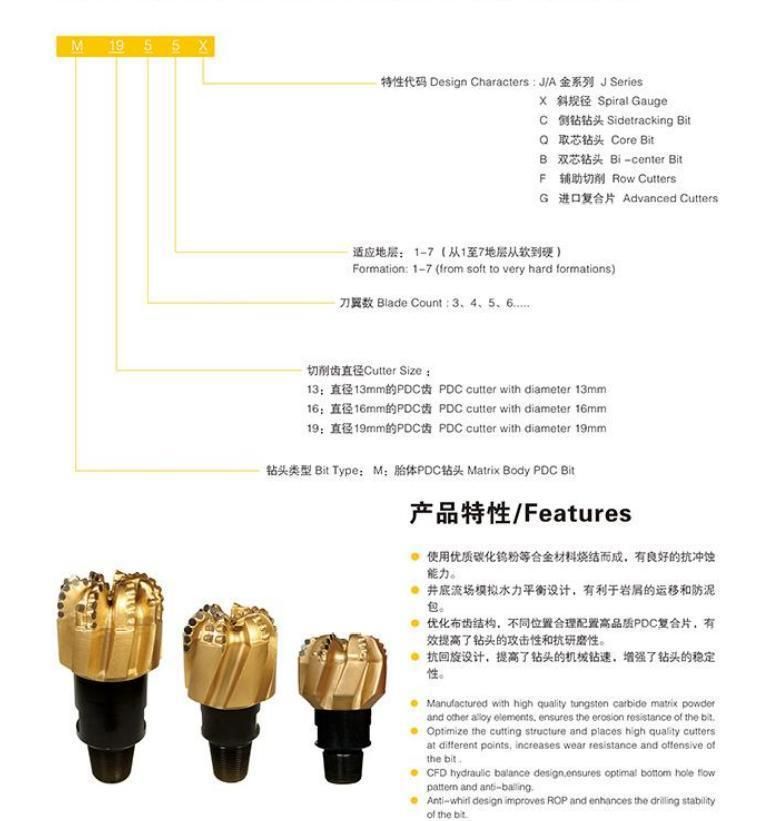

Matrix Body PDC Drill Bit

1.SOFT TO MEDIUM AND HARD FORMATION DRILLING

Short parabolic profile with lower cutter density helps to obtain better ROP in soft to medium hard formations with lower compressive strength and small hard layers.

Parabolic profile with medium to lower cutter density helps to obtain better ROP in soft to medium formations with low compressive strength and small abrasive layers.

Medium Parabolic profile with medium cutter density helps to obtain better ROP in medium hard formation with medium compressive strength and small abrasive layers.

Parabolic profile with heavy cutter density helps to obtain better ROP and long life in hard dense formations with high compressive strength and small abrasive layers.

2. DURASET GAUGE

Super strong material promotes gauge wear resistance to provide long bit life.

3.SPECIAL CUTTER LAYOUT

Balanced force cutter layout combined with straight blade design to improve the bit stability.

Balanced force cutter layout combined with backside cutter design to improve the bit life and impact resistance.

4. HYDRAULICS

Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.

Big junk slot with balanced hydraulics design improves anti-balling ability within high penetration.

5. UNIQUE BACKRACK DESIGN

The cutter's back rake has been unique design, reducing the bit torque and increasing aggressiveness .

6.UNIQUE BLADE DESIGN

Curved blade design makes the bit work stability.

Straight blade mixed with curved blade make the bit work stably.

Size available:6", 8-1/2", 9-1/2", 12-1/4",16", 17-1/2". Customized sizes are welcomed.
