• Model NO.：YH-RS50-637
• Origin：Cangzhou City, Hebei Province, China
• HS Code：8207199000

Basic Info.

Model NO. YH-RS50-637 Origin Cangzhou City, Hebei Province, China HS Code 8207199000

Product Description

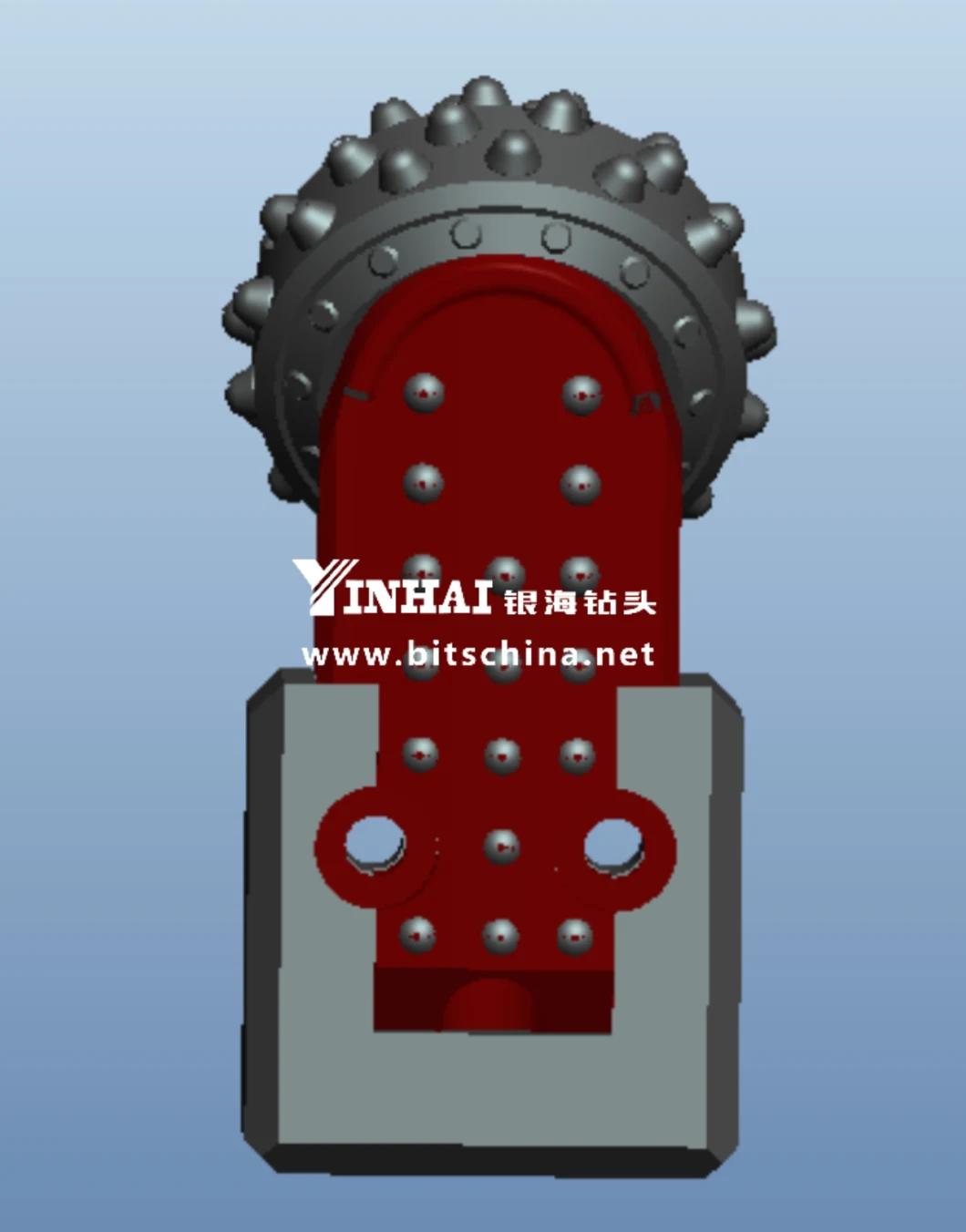

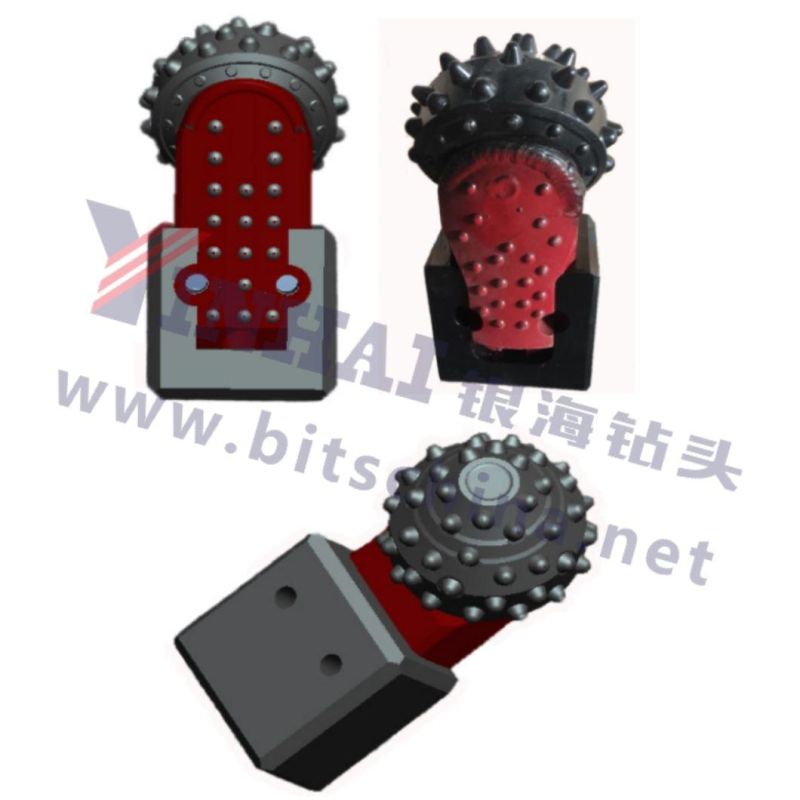

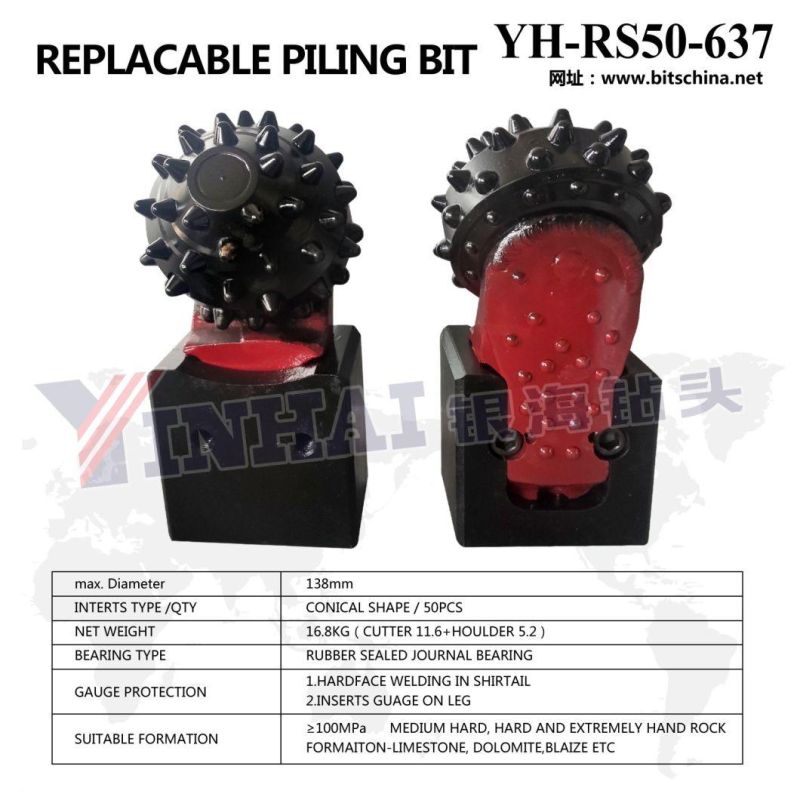

TECH DATA  OF YH-RS50-637  PILING ROLLER CONES

YINHAI replaceable piling single cones is used to assemble the rock reamer of different sizes. The high strength base is specially installed as the anti dropping device, which can bear greater torque in the process of use, making the reaming operation safer and more efficient.

IADC637 Formation:Mid- hard formation with high compressive andabrasiveness, eg limestone, dolomite, blaize etc.

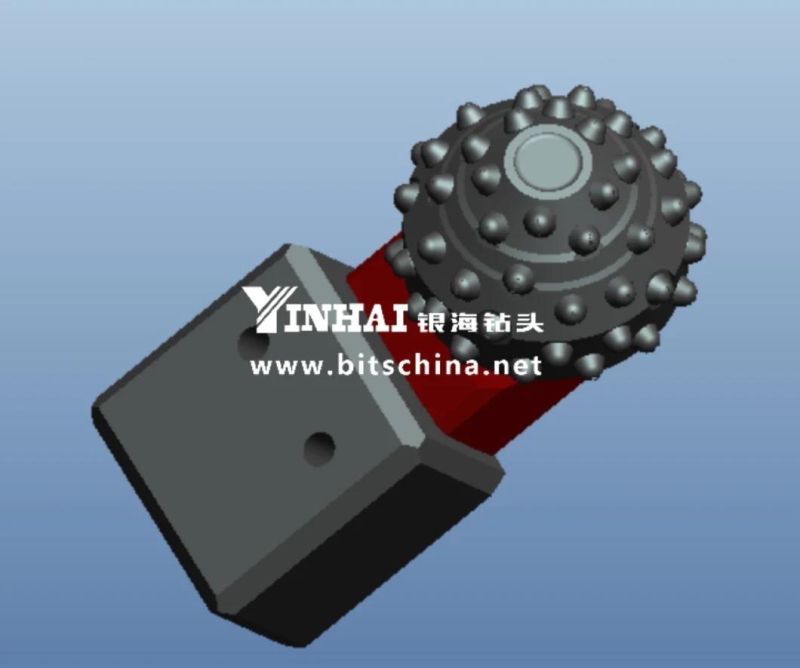

YINHAI DESIGN CAPABILITY FROM   OFFICE TEAM






ADVANTAGES OF YINHAI REPLACEABLE PILING BITS
The detachable tooth palm piece is used to assemble the reamer of different sizes. The high strength base is specially installed as the anti dropping device, which can bear greater torque in the process of use, making the reaming operation safer and more efficient.




Cutting Structure
Reinforcing the comprehensive mechanical properties of cutting tooth by using high quality tungsten carbide inserts of new form
ula and new techniques of insert bit.

Gauge Structure
The multiple heel position with gauge trimmer on the heel, tungsten carbide and hardfacing on the shirttail, strengthened spear point will enhance the gauge protection.

Bearing Structure
High precision journal bearing with two thrust faces. Ball locked cone. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved, and suitable for high rotary speed.

Seal and Lubrication
The advanced metal seal package is composed by two metal seals and two elastic rubber energineers. The energizer and back-up ring will support the pushing force to make the two metal faces tightly contact. In the drilling, the metal seals are relevant moving, and the energizers are static. This will increase the bearing seal reliability and durability. The compensation system and the high quality bit grease can limit pressure differential, and greatly increase the lubricating reliability.

FAQ:
1.Q:What kind of packing do you have?

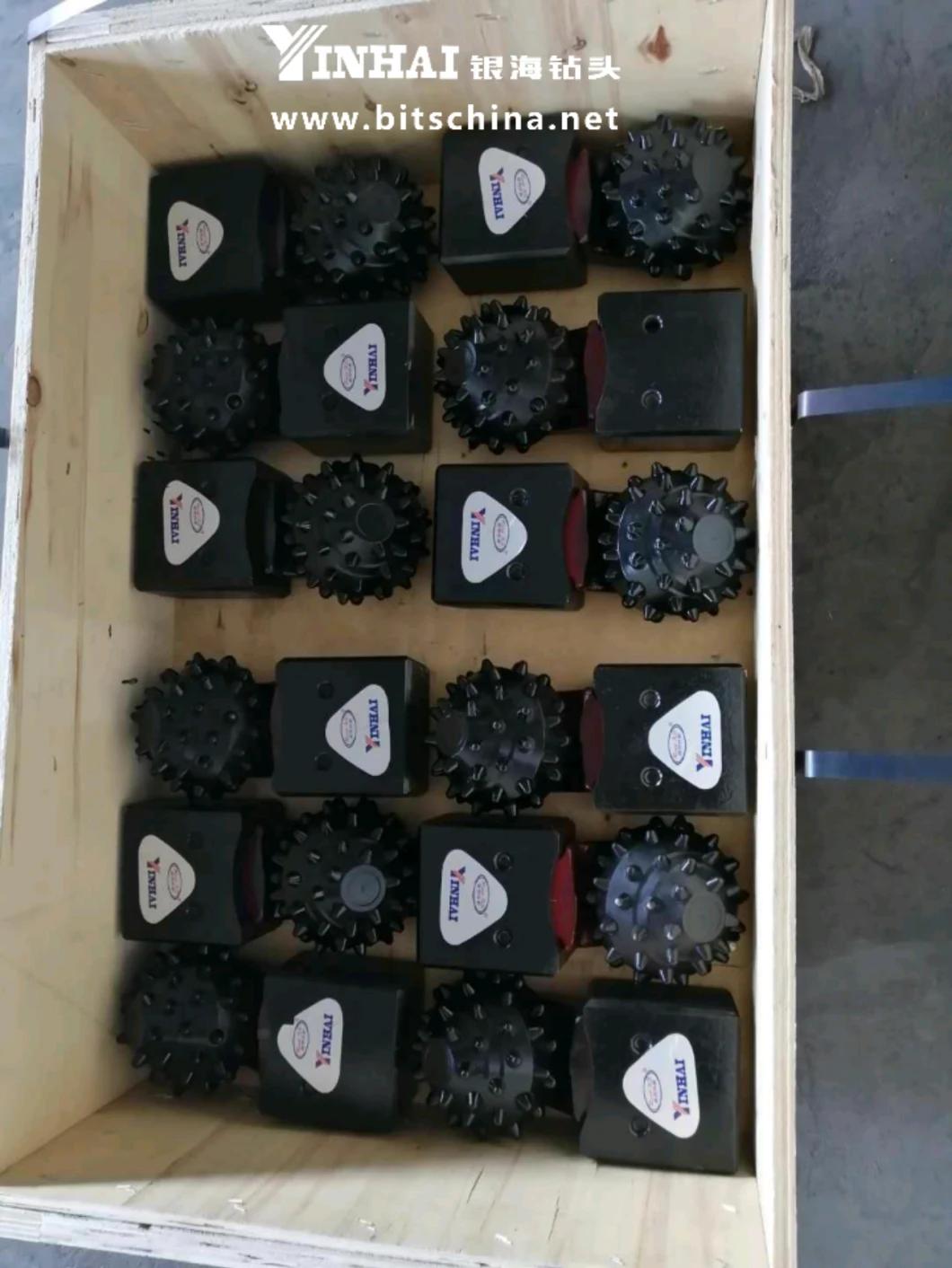

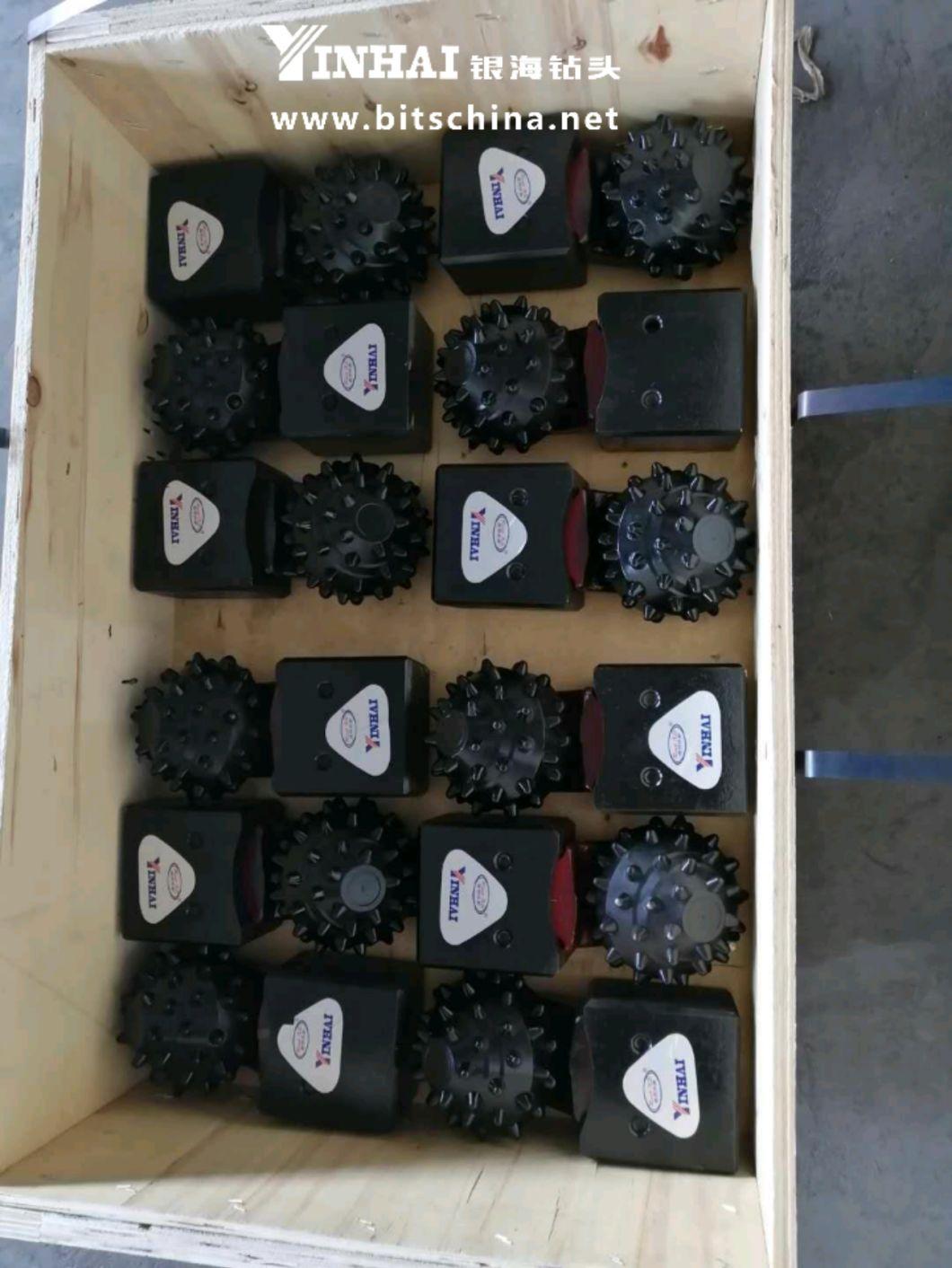

   A: Ply-Wooden case free of fumigation; Cartons; Packing can be customized.


2.Q:What is your price advantage?
  A:We are 100% factory directly sales,API production process guarantee,Provide customized services for brand processing.
 Reduce the cost of drilling for you, Don't worry after-sales service.Welcome to book a video-call to inspect factory.
