• Model NO.：CS-018

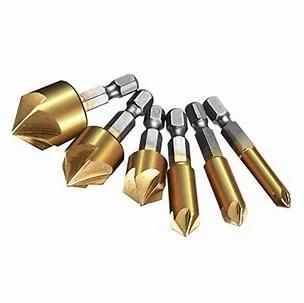

• Shank：Quick Change Hex Shank
• Transport Package：10,5 PCS in PVC Pouch, Plastic Box, Individually I
• Specification：4.3-40mm
• Trademark：FANXI or OEM
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. CS-018 Shank Quick Change Hex Shank Transport Package 10/5 PCS in PVC Pouch, Plastic Box, Individually I Specification 4.3-40mm Trademark FANXI or OEM Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

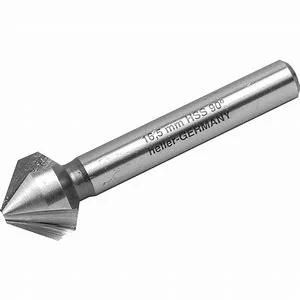

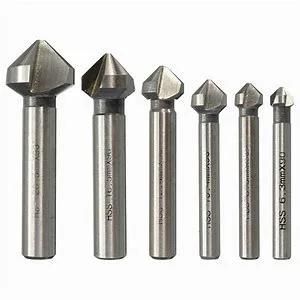

DIN335C, HSS,with cylindrical shark and 3 flutes.
CBN-deep-ground;
Countersinks are deep-ground in the CBN Flutes.The 90° cone corresponds with the shape of the counter-sink screw or bolt head. Also available in 60°,75°,and 120° versions. Radial back-off clearance makes it possible to work withour irattlingi, and also removes chipos and swarf perfectly.


Size	Overall Length	Shank Diameter
4.3	40mm	4.0mm
4.8	40mm	4.0mm
5	40mm	4.0mm
5.3	40mm	4.0mm
5.8	45mm	5.0mm
6	45mm	5.0mm
6.3	45mm	5.0mm
7	50mm	6.0mm
7.3	50mm	6.0mm
8	50mm	6.0mm
8.3	50mm	6.0mm
9.4	50mm	6.0mm
10	50mm	6.0mm
10.4	50mm	6.0mm
11.5	56mm	8.0mm
12.4	56mm	8.0mm
13.4	56mm	8.0mm
15	60mm	10.0mm
16.5	60mm	10.0mm
19	63mm	10.0mm
20.5	63mm	10.0mm
23	67mm	10.0mm
25	67mm	10.0mm
26	71mm	10.0mm
28	71mm	12.0mm
30	71mm	12.0mm
31	71mm	12.0mm
40	80mm	15.0mm
