• Model NO.：HD-004
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. HD-004 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

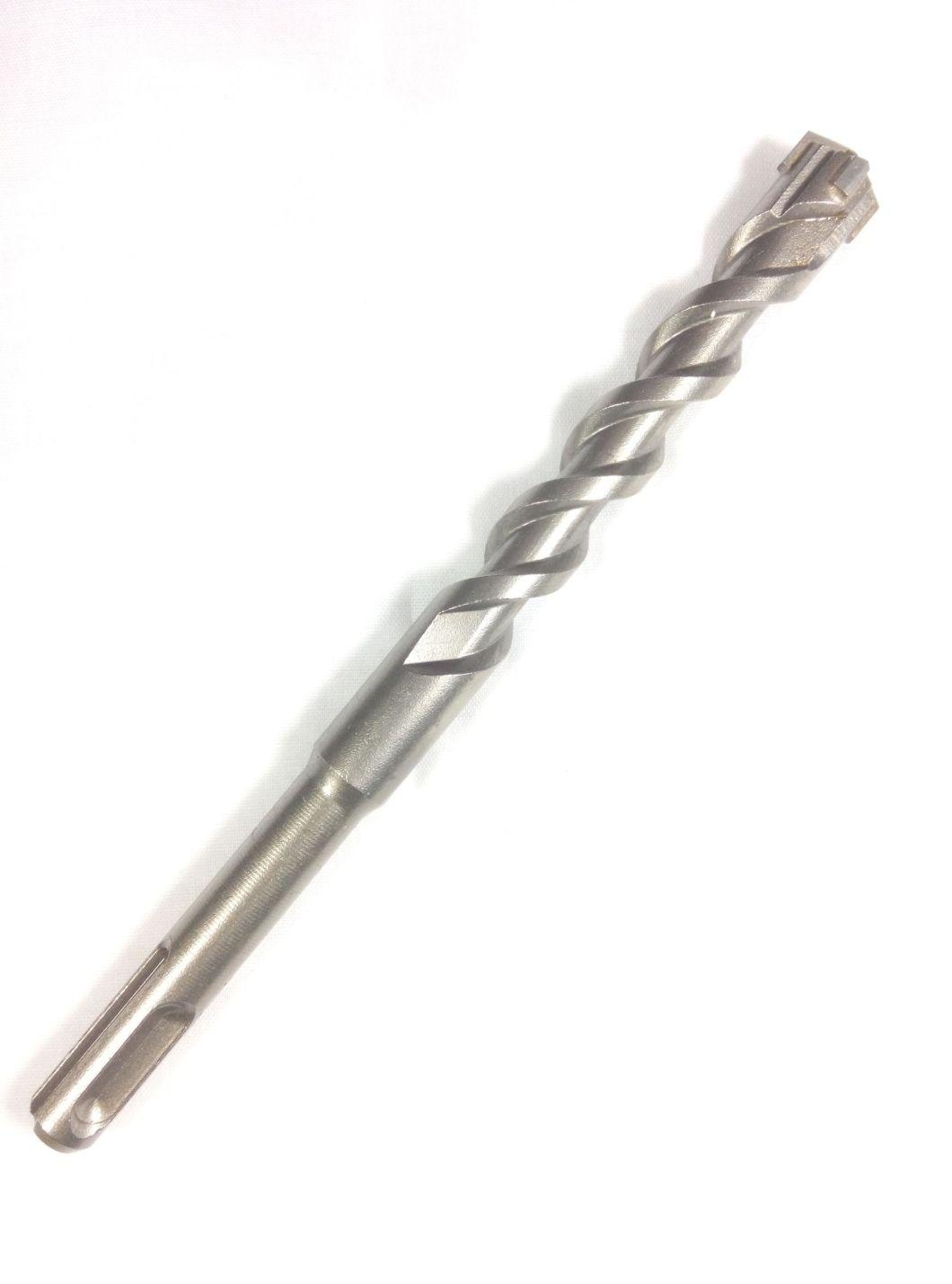

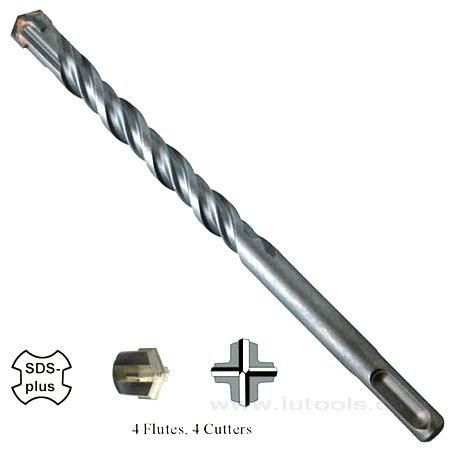

SDS-plus Hammer Drill Bits 4 Flute 4 Cutter (Cross-Head)
Four cutter heads reduce vibration for less user fatigue.
Instead of just one carbide tip, an additional 2 extra carbide tips have been brazed into the drill bit point, which ensure rounder and more straight holes.
Special design with an extra flute. This fluting is inverted, improving the capacity to remove drill-dust.
Professional quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials.
Drill Bits set are available.
Inch size are available too.















Product Name	SDS-Plus Hammer Drill Bits 4 Flute 4 Cutter (Cross-Head)
Body Material	40Cr Steel with Heat Treatment
Tip Material	Tungsten Carbide
Process	Milled Flutes and Welded Tip  (High Quality Auto Welded Tip is available)
Tip Type	Cross Head Tip 4 Cutters  (Single Tip, Centric Tip, X Head are available)

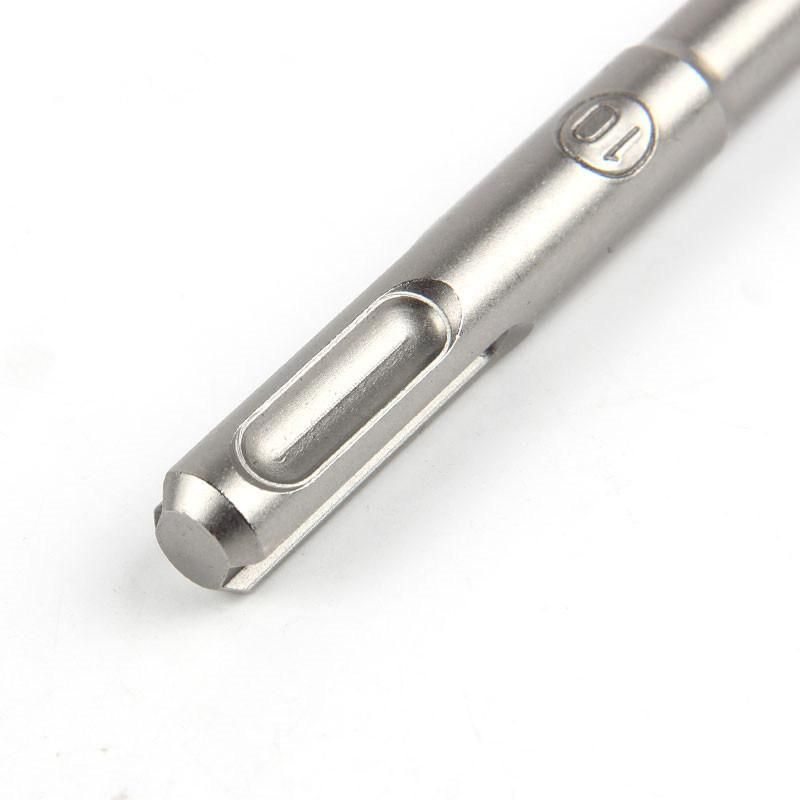

Shank	SDS Plus Shank   (SDS Max Shank, Spline Shank, Hex Shank and SDS Tapcon Shank are available)
Flute Type	S4 Flute   (L Flute, U Flute, 4 Flute are available)
Size	4*110mm - 40*1200mm   (5/32" * 4" to 1 3/4" * 40")
Surface Finish	Sand Blasted
Package	One Piece in One PVC Pouch Or Plastic Hanger or PVC Tube or PVC Double Blister
Features	1.Professional quality for efficient and fast hammer drilling in hard materials like concrete, granite, brick and other similar building materials. 2.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body 3.Premium carbon steel with heat treatment improves core strength for maximum durability and extended life. 4.4 Cutters head design oprates with less noise than standard cutter heads and produces about 60% less vibration while lasting about 50%. 6.4-fold spiral flute (S4) for rapid drilling dust removal. With even less vibration and more precise guiding, the stability and service life. 7.Wear mark identifies when bit has worn to an inappropriate level for precision anchoring 8.Compatible with all SDS-Plus style chucks.
