Maxdrill High Quality Tung Carbide T38 64mm to 89mm Thread Button Bit for Drifting and Tunneling

MAXDRILL ROCK TOOLS CO., LTD.
  • Customized：Customized
  • Standard：GB,T2828.1-2003
  • Length：Thread Length
  • Type：Rock Drilling Bit
  • Material：Alloy Steel & Tungsten Carbides
  • Usage：Rock Drilling

Base Info

  • Model NO.：3089T3813-66
  • Product Name：Drilling Rig Top Hammer
  • Diameter：89mm
  • Part No.：3089t3813-66
  • Thread：T38 Button Bit
  • Class：Hard
  • Application：Drifting&Tunneling
  • Brand Name：Maxdrill
  • Machine Type：Drilling Tools
  • Use：Ore Mining
  • Body：Retrac Skirt, Standard Skirt
  • Button Bit：Drop Center, Flat Front
  • Other Thread：R25, R32, R35, T45, T51, St58, St68, Gt60
  • Key Words：Rock Drilling Bit
  • Application Industries：Construction Works, Energy & Mining
  • Type Name：Drill Bit
  • Transport Package：Carton&Plywood Pallet
  • Specification：Dia.: 33MM-258MM
  • Trademark：Maxdrill
  • Origin：China
  • HS Code：82071300
  • Production Capacity：10000,PC Year

Description

Dimensions DFlushing hole(mm)Buttons(mm)Part no.mminFront No SizeGauge No SizeFront No SizeGauge No Size702 3/42*82*64*118*113070T38127632*92*74*118*123076T38123070T3813D7634*8-5*118*123076T3813D893 1/24*9-6*128*133089T3814D702 3/42*82*64*118*113070T3812R7632*92*74*128*123076T3812R893 1/22*112*86*128*133089T38F14R7634*8-5*118*123076T3813DR893 1/24*10-6*128*133089T3814DR

Remarks:
Hemispherical-66(Usually for very hard rocks)
Ballistic-65(Ususally for medium hard rocks)
Semiballistic-64(Usually for medium hard rocks)
Conical-67(Usually for soft rocks)
Process &Packaging


Maxdrill High Quality Tung Carbide T38 64mm to 89mm Thread Button Bit for Drifting and Tunneling

Maxdrill High Quality Tung Carbide T38 64mm to 89mm Thread Button Bit for Drifting and Tunneling

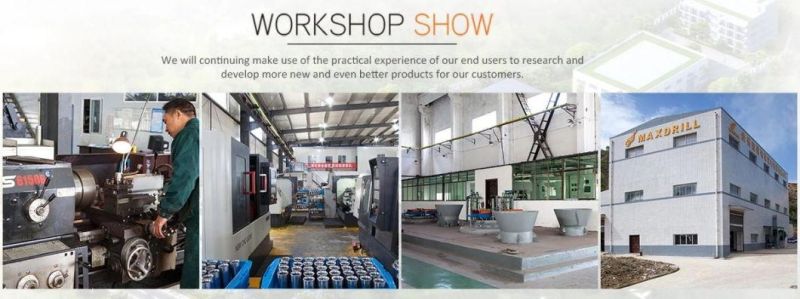

Workshop Show

Maxdrill High Quality Tung Carbide T38 64mm to 89mm Thread Button Bit for Drifting and Tunneling

Exhibition Show

Maxdrill High Quality Tung Carbide T38 64mm to 89mm Thread Button Bit for Drifting and Tunneling

Certifications

Maxdrill High Quality Tung Carbide T38 64mm to 89mm Thread Button Bit for Drifting and Tunneling

Wide Applications

Maxdrill High Quality Tung Carbide T38 64mm to 89mm Thread Button Bit for Drifting and Tunneling
FAQ

The information you may like to know before order:

1. Methods of Payment:

  T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

  Based on order quantity, normally it takes 25 days for production.

  Only 2 or 3 days if we have stock on your request size.

3. Shipping way

  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

  Bulk order: we suggest by air or by sea.

4. Quality Control

  We have our own experienced QC.

  There will be strict inspection and testing for every order before shipping out.

5. After Services:

  a. Our sales team will response for your question within 24 hours (Holidays Excluded)

  b. Technical Support will be available in any time

  c. Free replacement will provide once the failure confirmed caused by our product quality

Contact Information
Contact Person:Ms Linda Chen


Website:maxdrillrocktools.en.made-in-china.com
