HSS Taper Shank Drills Fully Ground
Hangzhou Fanxi Tools Co., Ltd.- Customized:Customized
- Length:Taper-length
- Type:Twist Drill Bit
- Material:High Speed Steel
- Usage:PCB Drilling, Metal Drilling
- Surface Finish:Black Oxide
Base Info
- Model NO.:TD-048
- Point Angle:118 Degree Drill Point Angle
- Application:for Drilling Holes in a Variety or Normal Steel
- Transport Package:10,5 PCS in PVC Pouch, Plastic Box
- Specification:5mm ~ 13.2mm
- Trademark:FANXI or OEM
- Origin:China
- HS Code:8207509000
- Production Capacity:100, 000PCS,Month
Description
Basic Info.
Model NO. TD-048 Point Angle 118 Degree Drill Point Angle Application for Drilling Holes in a Variety or Normal Steel Transport Package 10/5 PCS in PVC Pouch, Plastic Box Specification 5mm ~ 13.2mm Trademark FANXI or OEM Origin China HS Code 8207509000 Production Capacity 100, 000PCS/MonthProduct Description

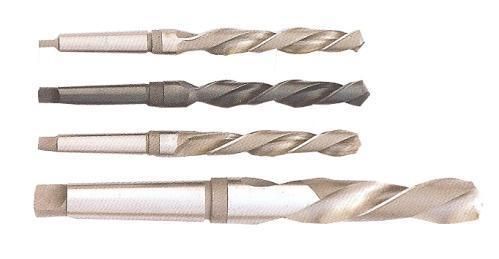

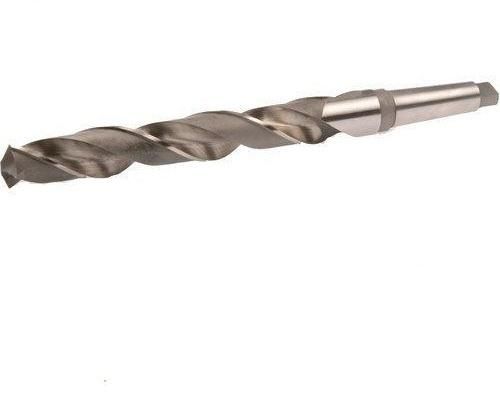

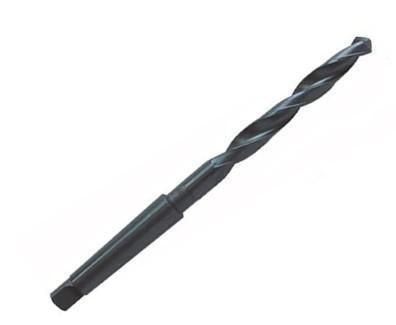

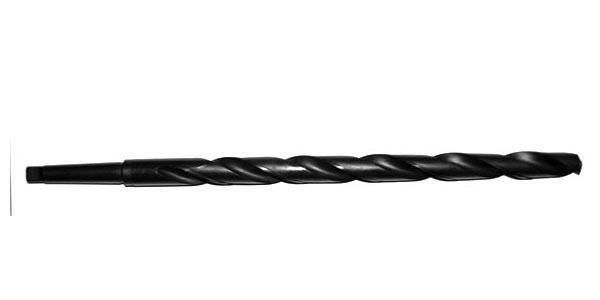

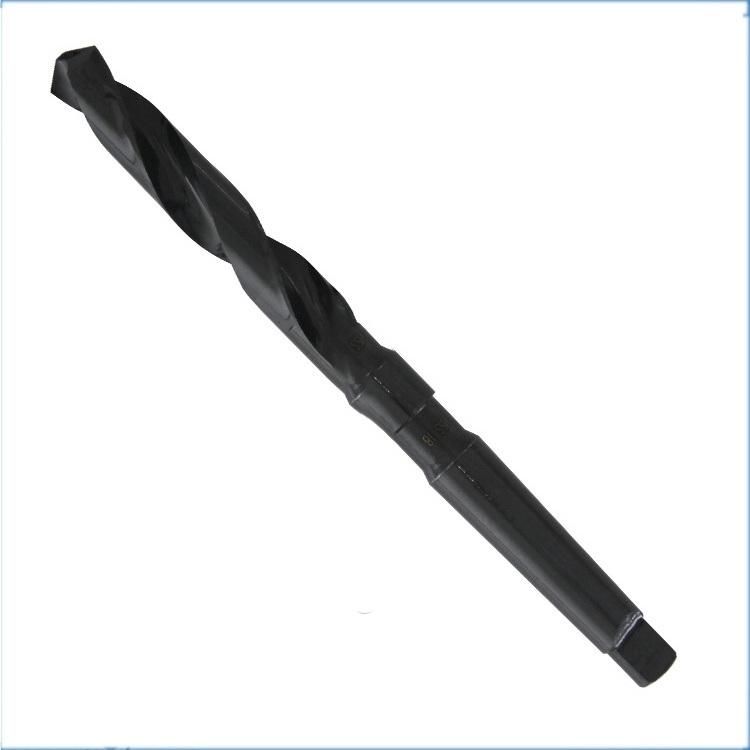

HSS Taper Shank Drills Fully Ground
Hardened high speed steel body provides additional safeguard, Right hand cutting. Standard two flute design.
Fully ground body, for drilling holes in a variety or normal steel, cast-steel alloyed
And unalloyed, grey cast, malleable cast iron, die-cast metal, iron sinter, nickel-silver, graphite cast iron, short-chipping aluminium alloys, bronze and brass.
Point angle ground to 118 degree.
Taper shanks to be used in a taper socket which are sized by the standard morsetaper sizes.
Black oxide Finish or Bright Finish are available on request.
Drill Bits Set are available on request.
Metric Size available ( DIN345 Standard ):
5mm ~ 13.2mm 1# Morse Taper
13.5mm ~ 23.0mm 2# Morse Taper
23.25mm ~ 31.75mm 3# Morse Taper
Inch Size available ( ANSI B94.11M Standard ):
3/16" ~ 15/32" 1# Morse Taper
31/64" ~ 25/32" 2# Morse Taper
51/64" ~ 1-1/16" 3# Morse Taper
1-5/64" ~ 1-1/4" 4# Morse Taper
