Thread Shank HSS Drill Cutter HSS Broach Cutter
Zhejiang Xinxing Tools Co., Ltd.- Customized:Customized
- Length:50mm
- Type:Core Drill Bit
- Material:High Speed Steel
- Usage:Metal Drilling
- Cutter Type:Core Drill Bit
Base Info
- Model NO.:DNHL
- Shank Type:Thread Shank Cutter Surfance
- Performance:Better Endurance
- Transport Package:Single Packing with PVC Plastic Tube
- Specification:D 12mm~60mm, D. O. C. 25mm~50mm
- Trademark:CHTOOLS
- Origin:China(Mainland)Zhejiang
- HS Code:8207509000
- Production Capacity:100, 000PCS,Month
Description
Basic Info.
Model NO. DNHL Shank Type Thread Shank Cutter Surfance Performance Better Endurance Transport Package Single Packing with PVC Plastic Tube Specification D 12mm~60mm, D. O. C. 25mm~50mm Trademark CHTOOLS Origin China(Mainland)Zhejiang HS Code 8207509000 Production Capacity 100, 000PCS/MonthProduct Description
Thread shank HSS drill cutter HSS broach cutter

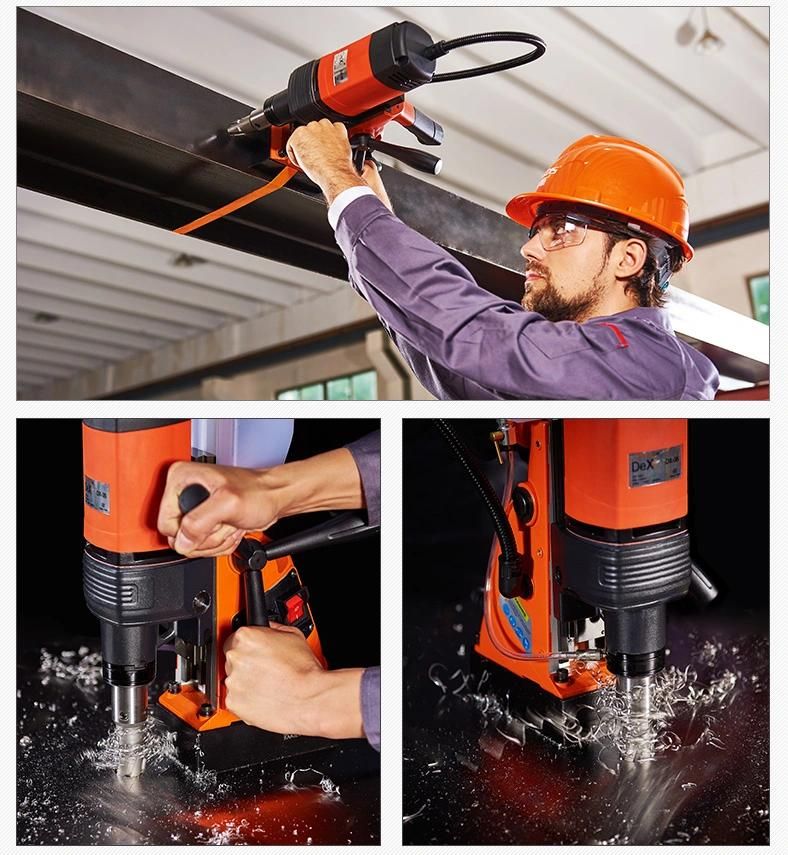

1. M18*6/P1.5 thread shank(inside). Suitable on Fein Magnetic drills.
2. Made of super tough high speed steel., e. G. M2, M2AL, M35, M42, ASP2030 etc. And can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic. Multi-ply cutting end edge geometry, to improve removal of chips and keep less resistance.
The specifications from the Φ 12mm ~ Φ 65mm, depth of cutting 8mm, 25mm, 35mm, 50mm, 75mm, 100mm, series. Can be customized Φ 66mm ~ Φ 130mm, depth can be extended to 150mm according the needs of special occasions
4. TiN or TiAIN coating are available upon request.
5. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.
Type | Size | Type | Size |
DNHL-40120 | 12*50 | DNHL-40370 | 37*50 |
DNHL-40130 | 13*50 | DNHL-40380 | 38*50 |
DNHL-40140 | 14*50 | DNHL-40390 | 39*50 |
DNHL-40150 | 15*50 | DNHL-40400 | 40*50 |
DNHL-40160 | 16*50 | DNHL-40410 | 41*50 |
DNHL-40170 | 17*50 | DNHL-40420 | 42*50 |
DNHL-40180 | 18*50 | DNHL-40430 | 43*50 |
DNHL-40190 | 19*50 | DNHL-40440 | 44*50 |
DNHL-40200 | 20*50 | DNHL-40450 | 45*50 |
DNHL-40210 | 21*50 | DNHL-40460 | 46*50 |
DNHL-40220 | 22*50 | DNHL-40470 | 47*50 |
DNHL-40230 | 23*50 | DNHL-40480 | 48*50 |
DNHL-40240 | 24*50 | DNHL-40490 | 49*50 |
DNHL-40250 | 25*50 | DNHL-40500 | 50*50 |
...... | ...... | ||
DNHL-40360 | 36*50 |
