• Model NO.：TD-043
• Surface Finishing：Bright Finish
• Point Angle：118 Degree Regular Point
• Brand：OEM
• Transport Package：PVC Bag, Plastic Tube, Skin Card, Blister etc.
• Specification：1-20mm, 1,16"-1", 1#-90#, A-Z
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：500, 000PCS,Month

Basic Info.

Model NO. TD-043 Surface Finishing Bright Finish Point Angle 118 Degree Regular Point Brand OEM Transport Package PVC Bag, Plastic Tube, Skin Card, Blister etc. Specification 1-20mm, 1/16"-1", 1#-90#, A-Z Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 500, 000PCS/Month

Product Description

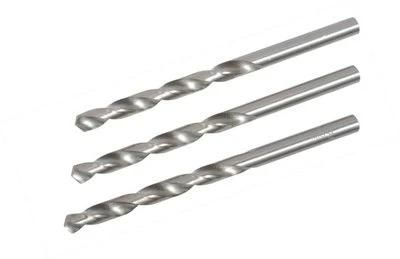

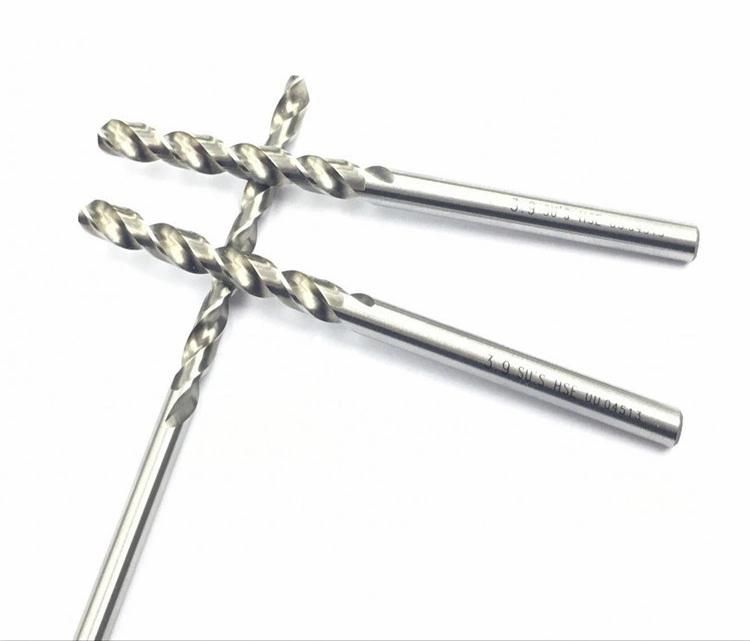

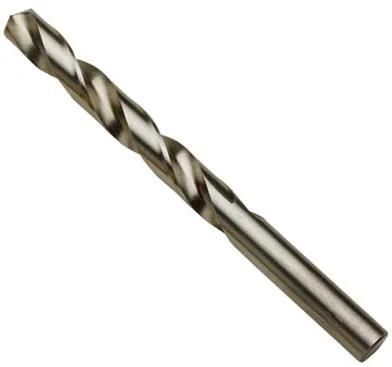

Product Name: HSS Twist Drill Bit Roll-Forged & Polished (Edge ground) for Metal

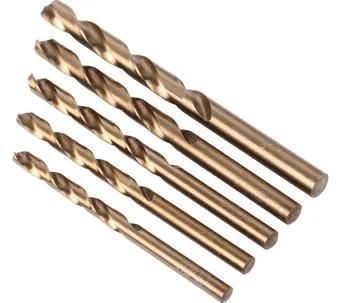

Material: HSS  (HSS Cobalt is Available)

Process: Rolled & Polished   (Fully Ground, Roll Forged, Milled are Available)

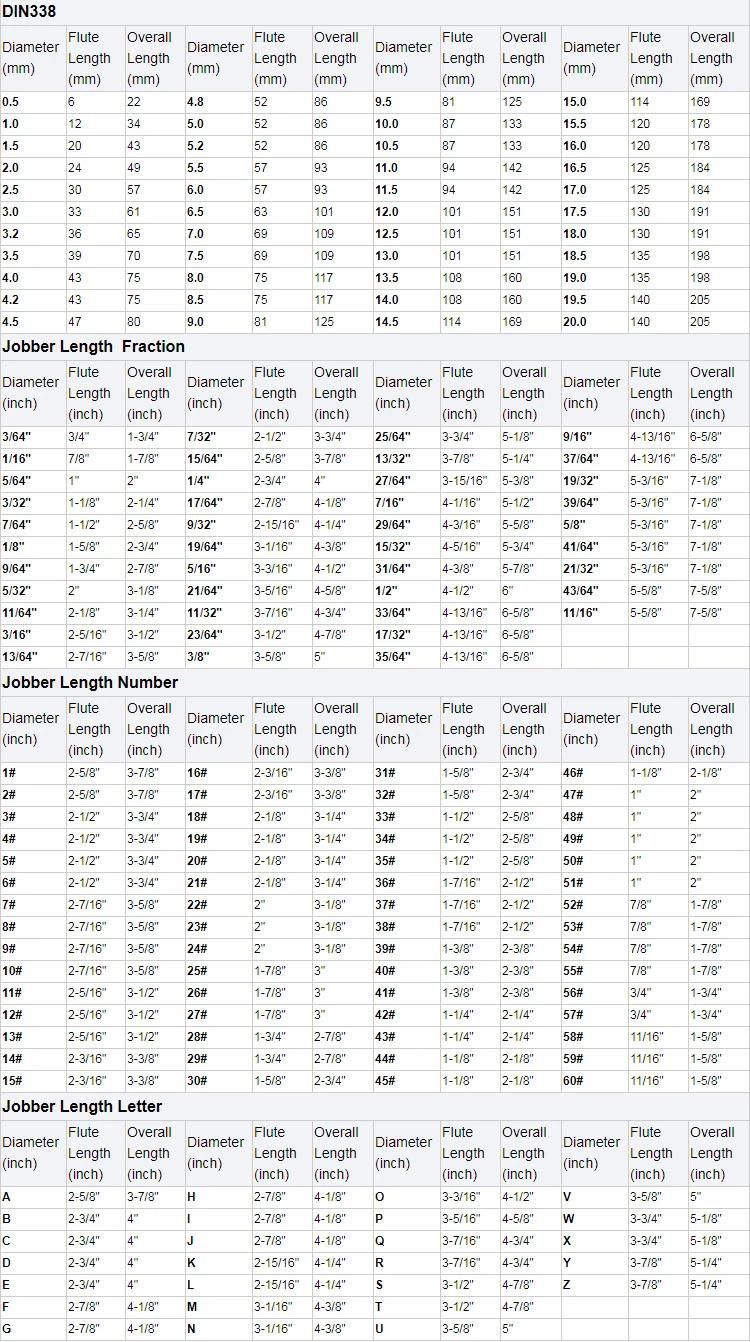

Standard: DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

 Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin,Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

Size: 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#

Point Type: 118 Degree Regular Point  (135 Degree Split Point, Turbo Max Point, Pilot Point are Available)

Shank Type: Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shank,Threaded Hex Shank, Taper Shank are Available)

Helix Angle: Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)

Web & Flute Type: Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)

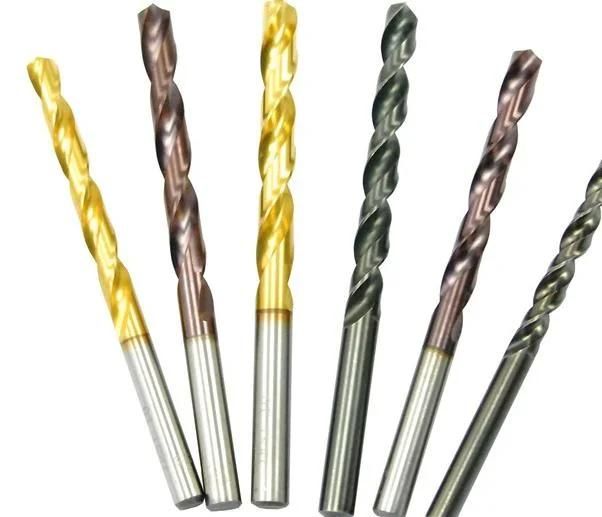

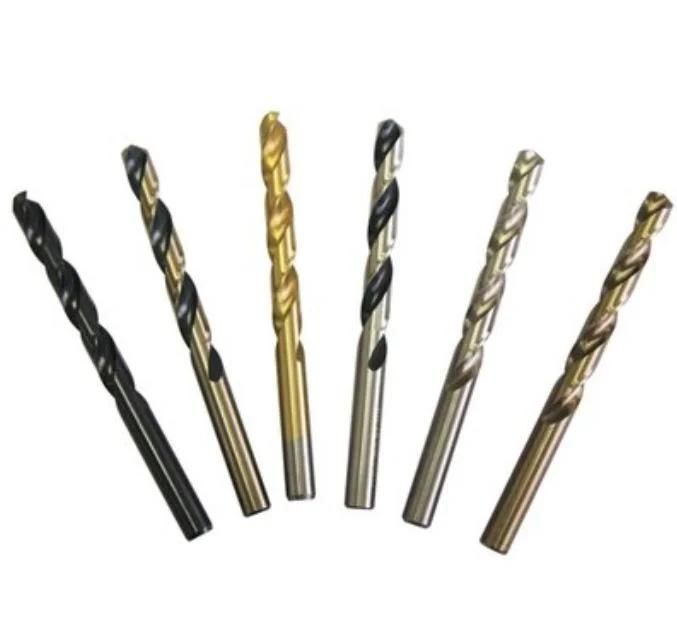

Surface Finish: Bright  (Black Oxide, Amber Color, Titanium, Black & Gold, Black & Bright are Available)

Package: 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.

Features:

 1.High quality HSS brocas for drilling holes in metal sheet.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.

 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.

 5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.



Metric Size are available ( DIN338 Standard ):
1.0mm ~ 13.0mm by 0.1mm

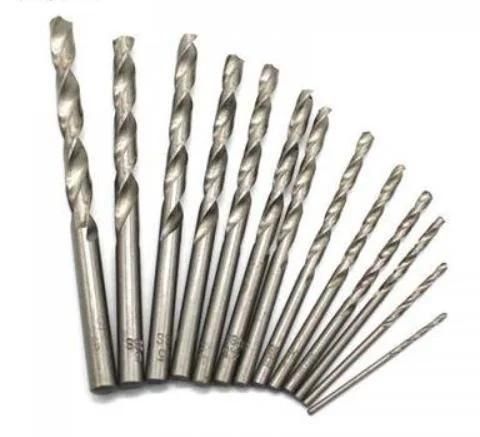

Set are available:
1.5 ~ 6.5mm x 13 PCS set
1.0 ~ 10mm x 19 PCS set
1.0 ~ 13mm x 25 PCS set

Inch Size are available ( ANSI B94.11M-1993 Standard ):
Fractional Size: 1/16" ~ 1/2"
Letter Size: A ~ Z
Wire Gage Size: 1# ~ 60#
Set are available:
1/16" ~ 1/4" x 13 PCS set
1/16" ~ 3/8" x 21 PCS set
1/16" ~ 1/2" x 29 PCS set
115 PCS set etc.
