• Model NO.：YH1200-1200-10
• Shell Height mm：1200
• Shell Od mm：1000
• Shell Thickness mm：20
• Stiffening Ring Height mm：200
• Qty of Roller Cones (PCS)：9
• Weight(Kg)：1300
• Trademark：YINHAI
• Origin：Cangzhou City, Hebei Province, China
• HS Code：8207199000

Basic Info.

Model NO. YH1200-1200-10 Shell Height mm 1200 Shell Od mm 1000 Shell Thickness mm 20 Stiffening Ring Height mm 200 Qty of Roller Cones (PCS) 9 Weight(Kg) 1300 Trademark YINHAI Origin Cangzhou City, Hebei Province, China HS Code 8207199000

Product Description

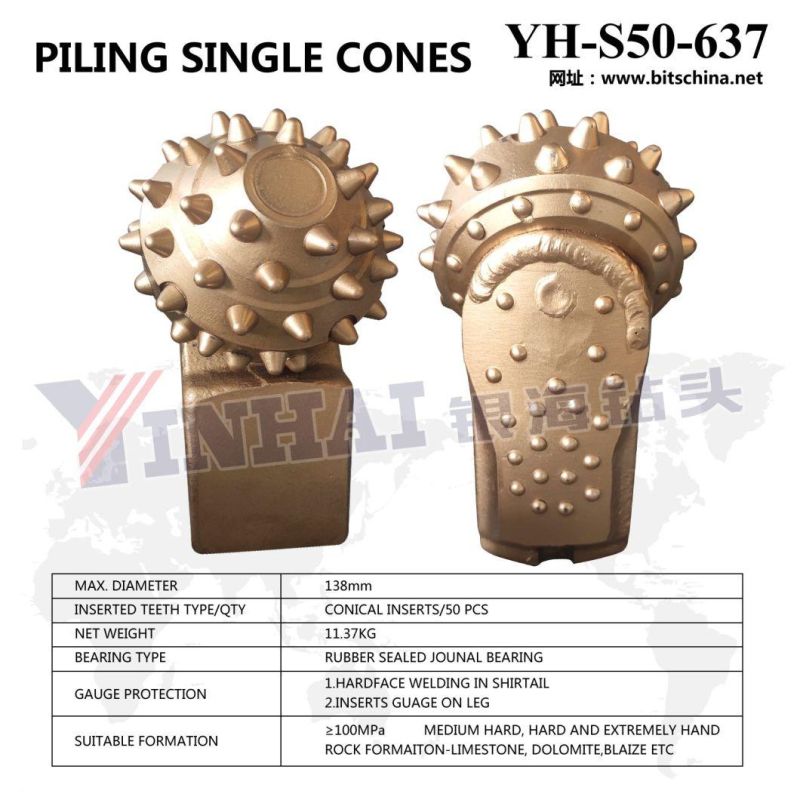

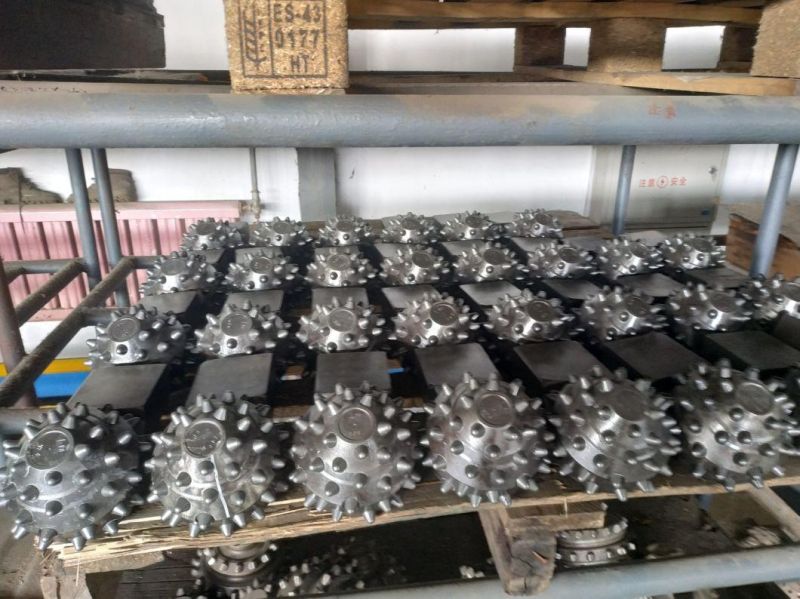

YINHAI SINGLE ROLLER CONES FOR PILING FOUNDATION

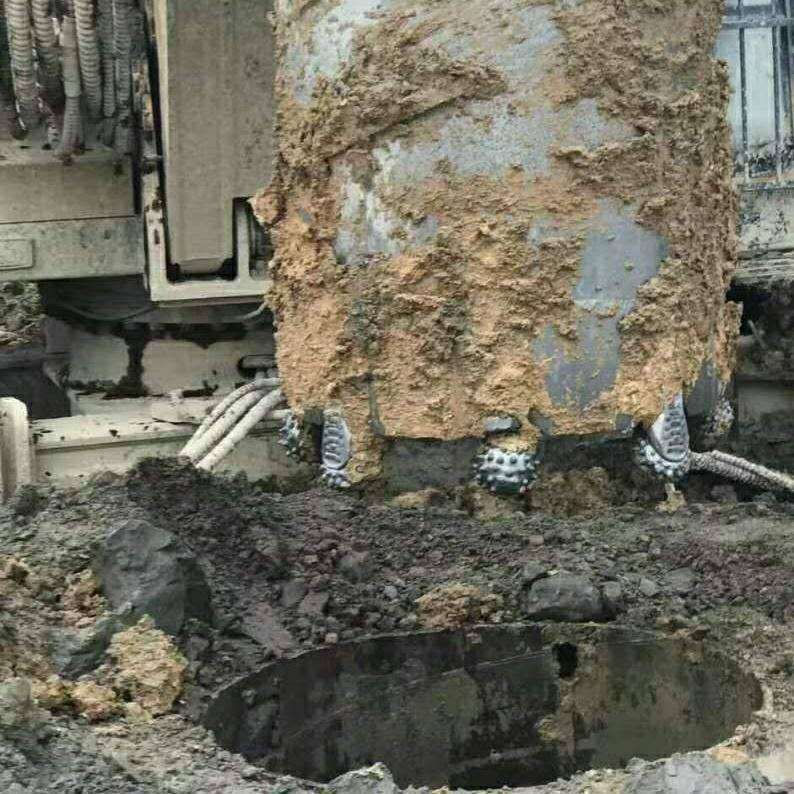

Core Barrel drill operating procedures
1)Before running the core barrel, the flexibility of the mechanism must be checked at the orifice.
2)Bucket flaps must enter the hole when fully stretched.
3)The initial drilling can not be pressurized, and then gradually pressurized after the backdrilling is stable. At this time, the core barrel should not appear to skip(move up and down).
4)If countersinking or stuck drilling occurs during drilling, stop pressurizing and do not use reverse drilling
5)During the drilling, it was found that the slewing resistance suddenly increased. At this time, it can be preliminarily judged that the core has been broken, and it can be reversed 2 to 3 times, and the core barrel can be lifted.
6)During the drilling process, a sudden pressure loss is found, that is, there is no resistance when turning. You need to stop drilling immediately and check to prevent the rotating shaft from breaking.






FAQ:

1.Q:What kind of packing do you have?
   A: Plywood case free of fumigation;cartons;packing can be customized.



2.Q:What is your price advantage?
   A:We are 100% factory directly sales,API production process guarantee,Provide customized services for brand processing.
Reduce the cost of drilling for you, worry free after-sales service.Welcome video call to inspect factory.
