• Model NO.：TD-030
• Manufacturing Process：Fully Ground,Rolled & Polished, Rolled, Milled
• Surface Finishing：Black & Gold
• Point Angle：118 Degree Regular Point
• Brand：OEM
• Transport Package：PVC Bag, Plastic Tube, Skin Card, Blister etc.
• Specification：DIN338
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：500, 000PCS,Month

Basic Info.

Model NO. TD-030 Manufacturing Process Fully Ground,Rolled & Polished, Rolled, Milled Surface Finishing Black & Gold Point Angle 118 Degree Regular Point Brand OEM Transport Package PVC Bag, Plastic Tube, Skin Card, Blister etc. Specification DIN338 Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 500, 000PCS/Month

Product Description

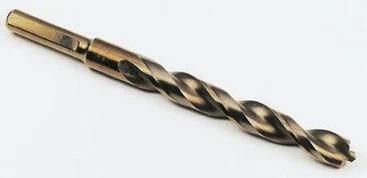

Product Name: DIN338 Jobber Length Three Flats Shank HSS Twist Drill Bit for Metal Stainless Steel

Material: HSS  (HSS Cobalt is Available)

Process: Fully Ground (Rolled & Polished, Rolled, Milled are Available)

Standard:  DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,Blacksmith Reduced Shank 10mm, 13mm, DIN345 Taper Shank are Available)

Jobber Length  (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long 12", 18", 24", Silver & Deming 1/2" Reduced Shank are Available)

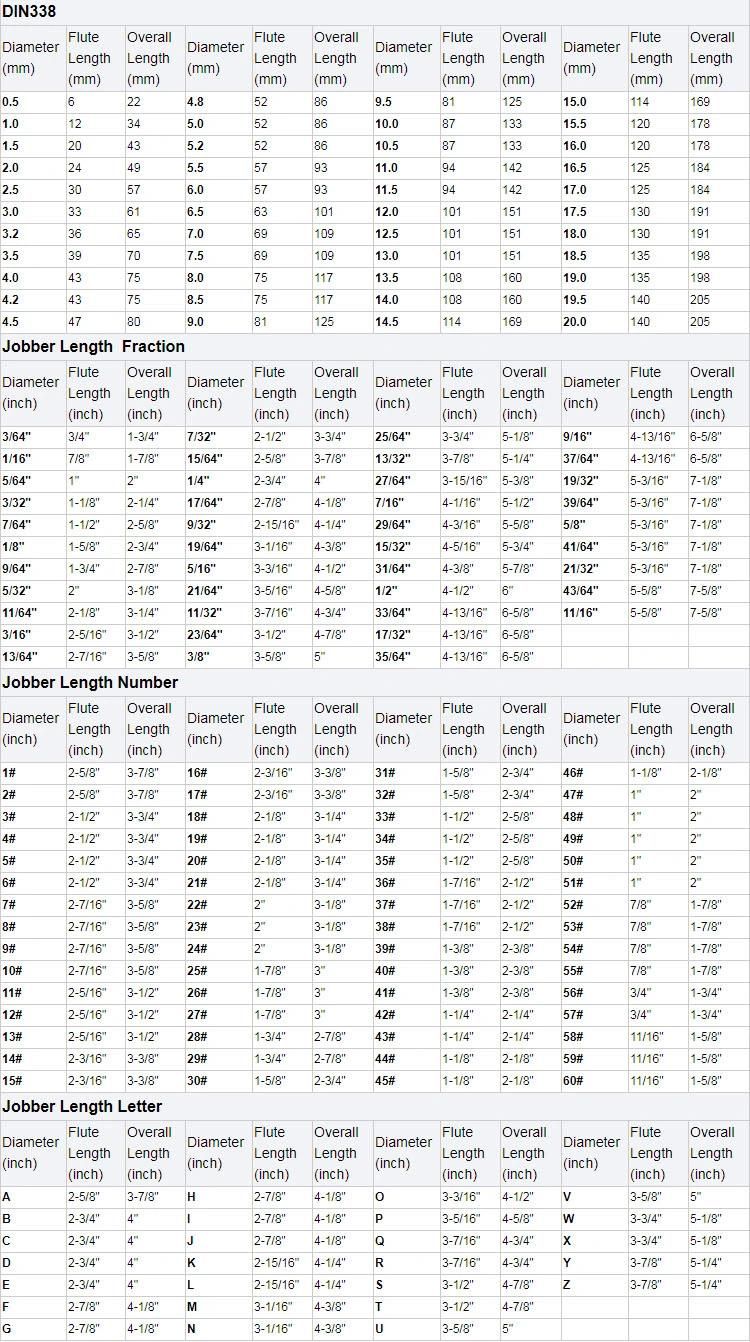

Size: 1 - 20mm, 1/16" - 1" , A - Z, 1# - 90#

Point Type: 135 Degree Split Point   (118 Degree Regular Point, Turbo Max Point, Pilot Point are Available)

Shank Type: Tri-Flats Shank  (Straight Shank, Hex Shank, Double R Hex Shank, Reduced Shank, Threaded Hex Shank,Taper Shank are Available)

Helix Angle: Regular Spiral Type N  (Slow Spiral Type H, Fast Spiral Type W, Left Hand Spiral are Available)

Web & Flute Type: Regular Web & Flute  (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)

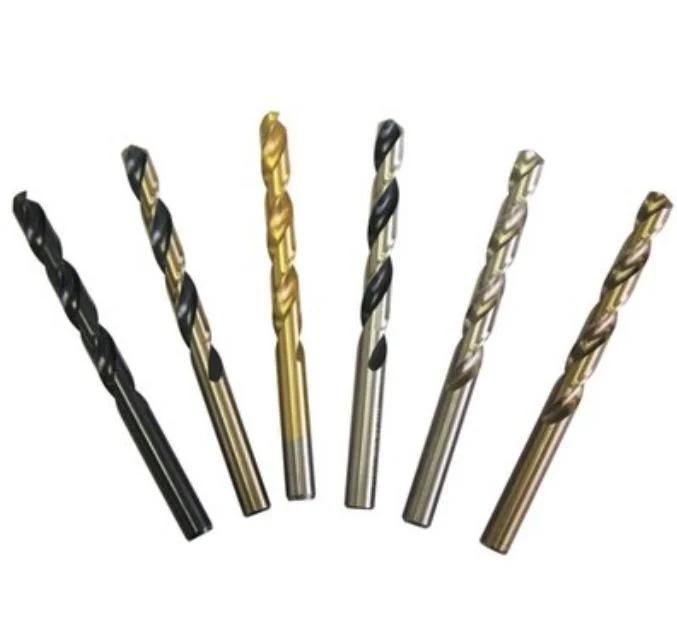

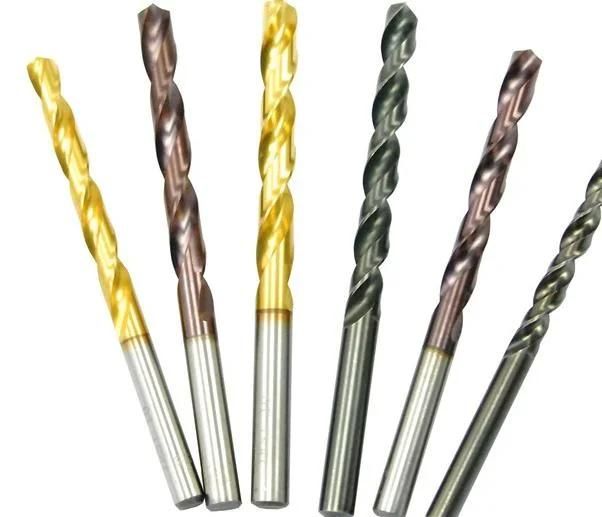

Surface Finish: Black & Gold  (Bright, Black Oxide, Amber Color, Titanium, Black & Bright are Available)

Package: 10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell.



Features:

 1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness   and toughness for wear resistance.

 2.Universal 118° point shape for drilling a wide selection of materials.

 3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.

 4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.

 5.DIN 338 jobber series drill bits are ideal for many trade and industrial projects.
