• Model NO.：DNTX
• Shank Diameter：19.05mm
• Treatment：All-Ground
• Transport Package：Plastic Box
• Specification：D 12mm~65mm, D. O. C. 35mm
• Trademark：CHTOOLS
• Origin：China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. DNTX Shank Diameter 19.05mm Treatment All-Ground Transport Package Plastic Box Specification D 12mm~65mm, D. O. C. 35mm Trademark CHTOOLS Origin China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

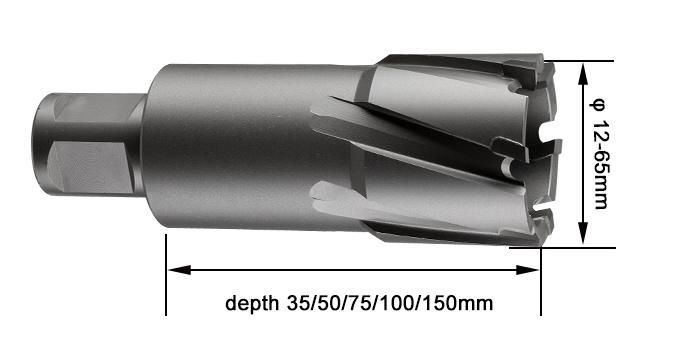

Carbide Tipped Core Cutter Drill with Weldon Shank

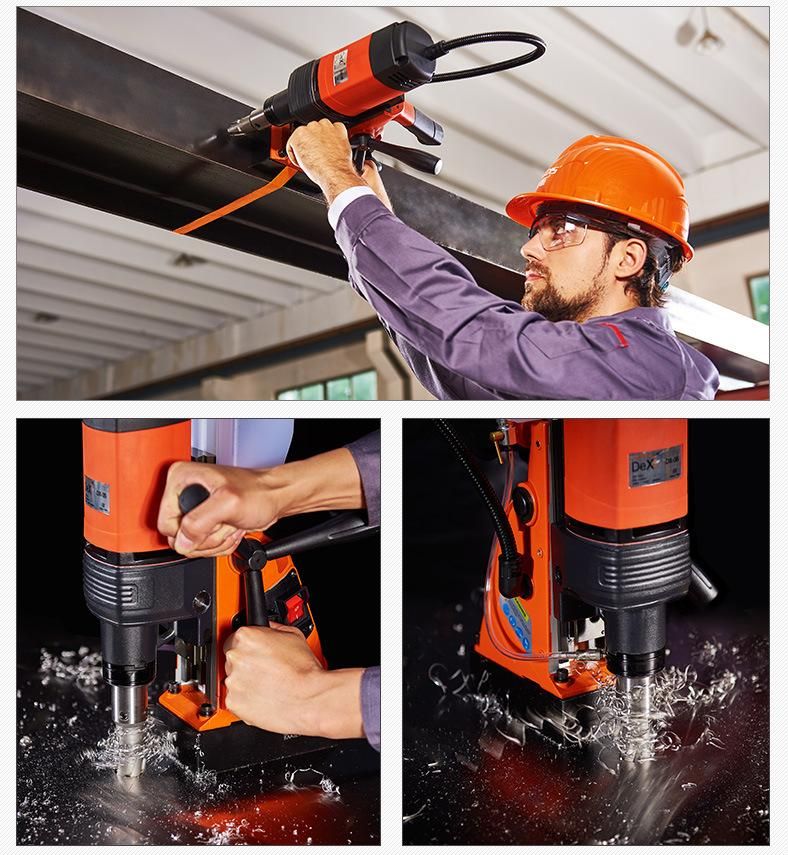

1,Possessing all the shank types, and being suitable for all the magnet drilling machines worldwide; completed sizes, max. Diameter of 150mm for standard series and max. cut depth of 150mm; max. Diameter of 200mm for customized series and max. cut depth of 200mm;

2,Employing corresponding technology support schemes for different processing demands (circular tube and laminated cutting);

3,Employing base materials with excellent intensity and tenacity, as well as special heat treatment process;

4,Employing long-short groove design scheme based on different cutting depth; Gradually-open spiral groove structure, the chip removal is smooth and the drilling is stable;

5,Automatic CNC machine tool processing, with consistent and stable quality;

6,Employing imported high-performance carbide blade with ultrafine particle and ultra-high hardness, ensuring service life.


Type	size
DNTX-30120	12*35
DNTX-30130	13*35
DNTX-30140	14*35
DNTX-30150	15*35
DNTX-30160	16*35
DNTX-30170	17*35
......	......
DNTX-30600	60*35
DNTX-30650	65*35
