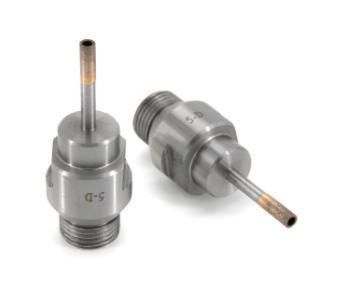

Sintered Diamond Drill (M14 Shank)
Hangzhou Fanxi Tools Co., Ltd.- Type：Core Drill Bit
- Material：Diamond
- Usage：Stone Cutting, Drilling
- Manufacturing Arts：Sinter
- Kind：Diamond Drill
- Transport Package：Plastic Box etc
Base Info
- Model NO.：DC-001
- Specification：6-45mm
- Trademark：FANXI
- Origin：P. R. China
- HS Code：8207501000
- Production Capacity：10, 000PCS,Month
Description
Basic Info.
Model NO. DC-001 Specification 6-45mm Trademark FANXI Origin P. R. China HS Code 8207501000 Production Capacity 10, 000PCS/MonthProduct Description
Featured sintered diamond drill are to professional wet cutting various hard ceramics, tile, porcelain, granite slab, marble slab, etc.Fast and smooth cutting is guaranteed with extra longer cutting life for industrial usages also.
Max cutting depth 30mm. Cutting rim Height all on 10mm tall ones.
On the bottom of the shank, there is that water hole for water connector fitting to wet cutting work.
| Diameter(mm) | Shank Type | Diameter(mm) | Shank Type |
| 6mm | M14 (male) | 51mm | M14 (male) |
| 8mm | M14 (male) | 54mm | M14 (male) |
| 9mm | M14 (male) | 57mm | M14 (male) |
| 10mm | M14 (male) | 64mm | M14 (male) |
| 11mm | M14 (male) | 70mm | M14 (male) |
| 13mm | M14 (male) | 76mm | M14 (male) |
| 14mm | M14 (male) | 83mm | M14 (male) |
| 16mm | M14 (male) | 89mm | M14 (male) |
| 19mm | M14 (male) | 95mm | M14 (male) |
| 22mm | M14 (male) | 102mm | M14 (male) |
| 25mm | M14 (male) | 105mm | M14 (male) |
| 29mm | M14 (male) | 108mm | M14 (male) |
| 30mm | M14 (male) | 114mm | M14 (male) |
| 32mm | M14 (male) | 115mm | M14 (male) |
| 35mm | M14 (male) | 118mm | M14 (male) |
| 38mm | M14 (male) | 127mm | M14 (male) |
| 45mm | M14 (male) | 152mm | M14 (male) |
