• Model NO.：SD-002
• Specification：4-39mm 5-35mm 6-40mm 9-36mm etc
• Trademark：FANXI
• Origin：P. R. China
• HS Code：82075090
• Production Capacity：5, 000PCS,Month

Basic Info.

Model NO. SD-002 Specification 4-39mm 5-35mm 6-40mm 9-36mm etc Trademark FANXI Origin P. R. China HS Code 82075090 Production Capacity 5, 000PCS/Month

Product Description

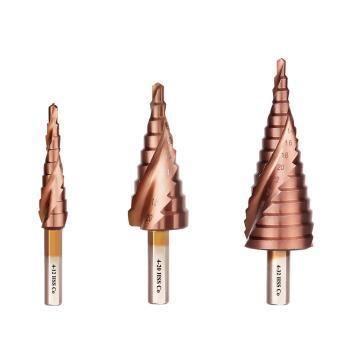

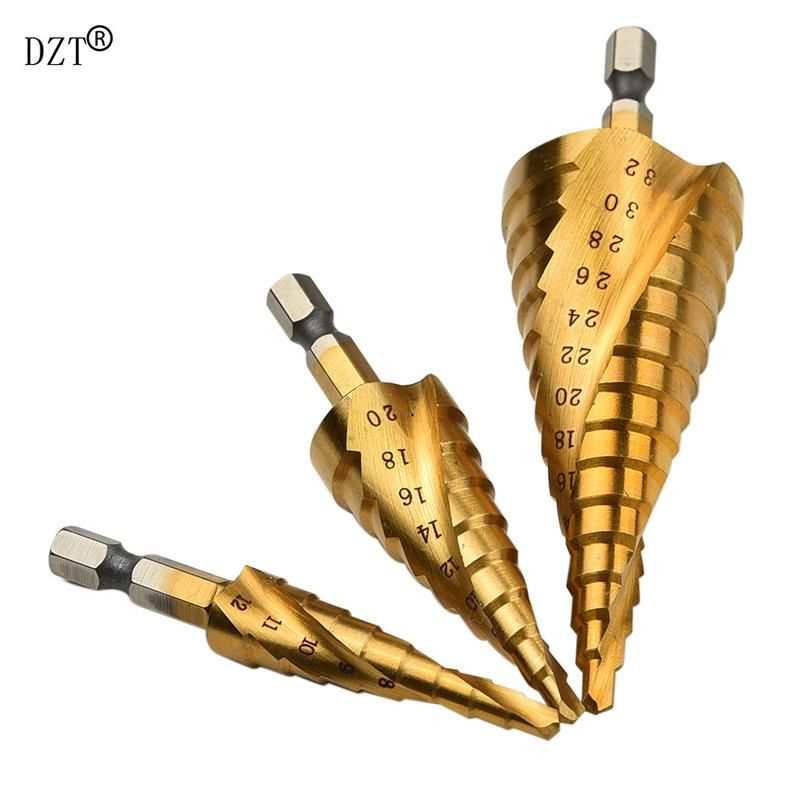

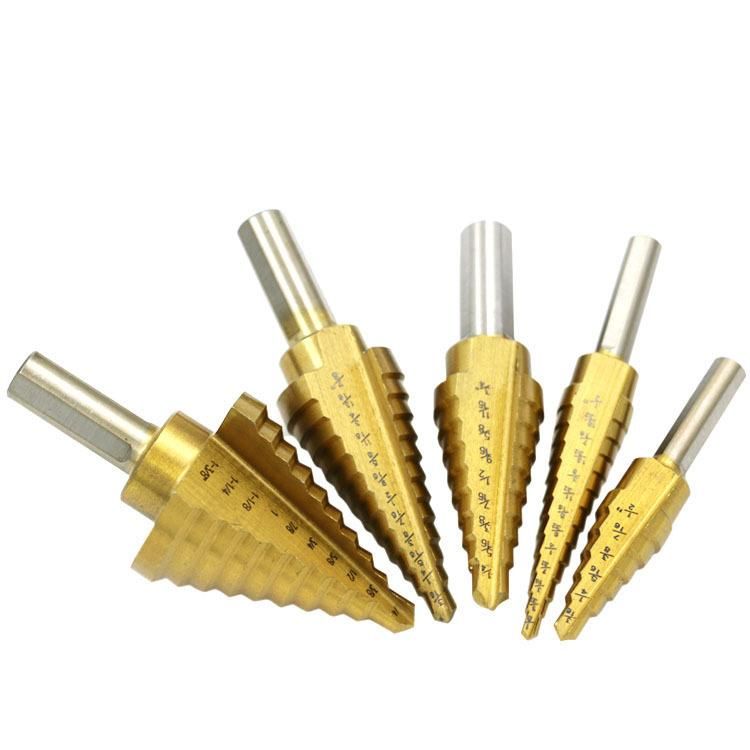

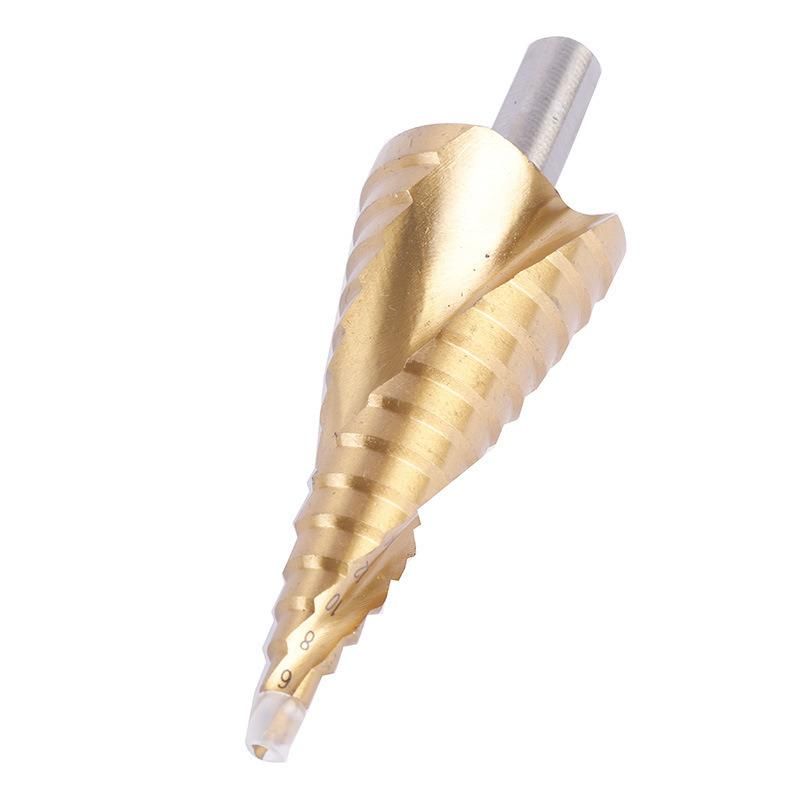

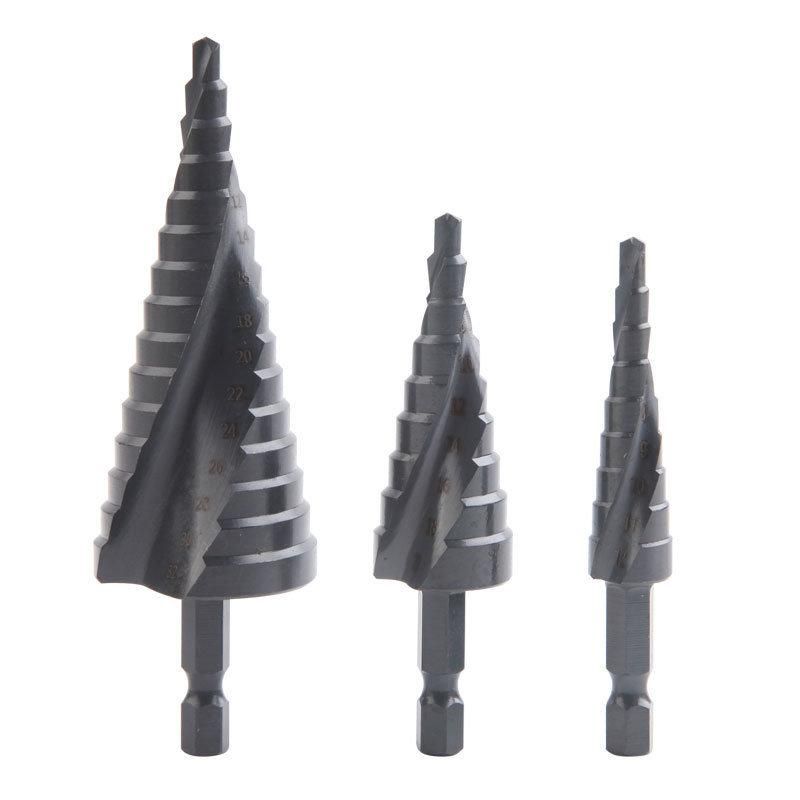

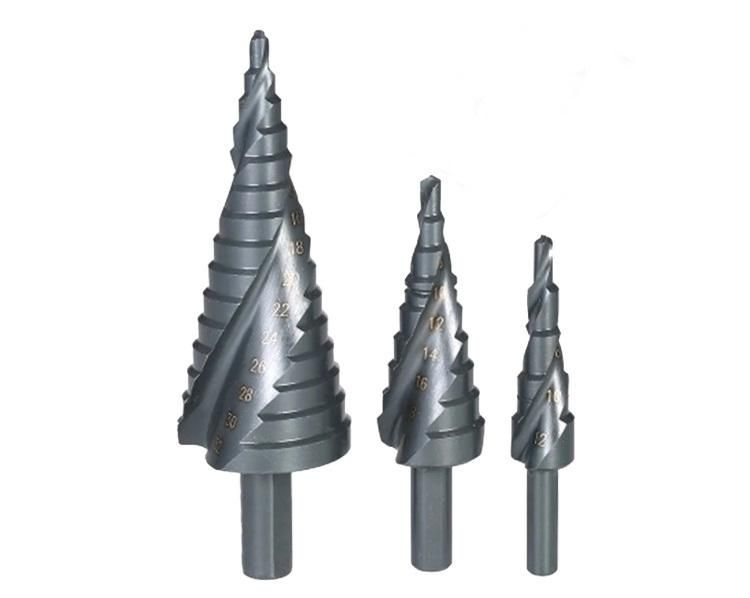

HSS Spiral Grooved Step Drills
The CBN ground and spiral flutes guarantee quiet running and high cutting performance. Especially the chip flow is optimized, so even long, non-breaking chips will be removed easily. The optimized chip flow protects the cutting edges and reduces built-up edges and cold weld marks. The cone makes it easier to withdraw the tool from the material.

Size Range	Step No.	Shank Size
4 - 12mm x 2mm	5	6mm
4 - 12 mm x 1mm	9	6mm
4 - 20mm x 2mm	9	8mm
4 - 22mm x 2mm	10	8/10mm
4 - 30mm x 2mm	14	10mm
4 - 32mm x 2mm	15	10mm
4 - 39mm x 2-3mm	14	10mm
5 - 28mm	7	10mm
5 - 28.3mm	10	10mm
5 - 35mm x 2-3mm	13	13mm
6 - 18mm x 2mm	7	10mm
6 - 20mm x 2mm	8	10mm
6 - 24mm x 2mm	10	10mm
6 - 25mm	7	10mm
6 - 26.75mm	8	10mm
6 - 30mm x 2mm	13	10mm
6 - 30.5mm	10	10mm
6 - 32mm	8	10mm
6 - 32mm	9	10mm
6 - 37mm	12	10mm
6 - 38mm	12	10mm
6 - 40mm	16	13mm
9 - 36mm x 3mm	10	12mm
10 - 20mm x 1mm	11	10mm
12 - 20mm x 1mm	9	10mm
12.5 - 30.5mm	7	12mm
13 - 38mm	10	12mm
14 - 24mm x 2mm	6	13mm
14 - 25mm	7	13mm
20 - 30mm x 1mm	11	13mm
20 - 34mm x 2mm	8	13mm
30 - 40mm x 1mm	11	13mm
40 - 50mm x 1mm	11	13mm
50 - 60mm x 1mm	11	13mm
5 - 30.5mm	13	12mm
5 - 38mm	14	12mm
