• Model NO.：TD-047
• Point Angle：118 Degree Drill Point Angle
• Application：Drilling Holes in a Variety or Normalsteel
• Transport Package：10,5 PCS in PVC Pouch, Plastic Box
• Specification：5mm ~ 13.2mm
• Trademark：FANXI or OEM
• Origin：China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. TD-047 Point Angle 118 Degree Drill Point Angle Application Drilling Holes in a Variety or Normalsteel Transport Package 10/5 PCS in PVC Pouch, Plastic Box Specification 5mm ~ 13.2mm Trademark FANXI or OEM Origin China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

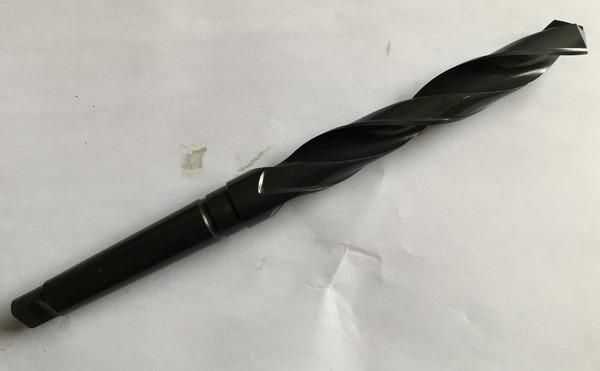

HSS Taper Shank Drills Milled
Made from High Speed Steel, Right hand cutting. Standard two flute design.
General purpose, normal duty drills designed for drilling holes in a variety or normalsteel, cast iron, and other ferrous and non-ferrous metals and alloys.
Have a normal 118 degree drill point angle suitable for a variety of drilling applications and conditions.
Taper shanks to be used in a taper socket which are sized by the standard morsetaper sizes.
Black oxide finish or Bright finish or Sandblasted Finish are available on request.
Titanium Coated are available on request.
Drill Bits Set are available on request.

Metric Size available ( DIN345 Standard ):
5mm ~ 13.2mm 1# Morse Taper
13.5mm ~ 23.0mm 2# Morse Taper
23.25mm ~ 31.75mm 3# Morse Taper
32.0mm ~ 50.5mm 4# Morse Taper
51.0mm ~ 76.0mm 5# Morse Taper
77.0mm ~ 90.0mm 6# Morse Taper

Inch Size available ( ANSI B94.11M Standard ):
3/16" ~ 15/32" 1# Morse Taper
31/64" ~ 25/32" 2# Morse Taper
51/64" ~ 1-1/16" 3# Morse Taper
1-5/64" ~ 1-1/2" 4# Morse Taper
1-17/32" ~ 3" 5# Morse Taper
3-1/8" ~ 4" 6# Morse Taper
