• Model NO.：AQ BQ NQ HQ PQ
• Color：as Per Your Request
• Sizese：Bq Nq Hq Pq
• Lenghth：1m~3m
• Transport Package：Plywood Case
• Specification：ISO9001
• Trademark：Forsun
• Origin：Changsha Hunan
• HS Code：84314320
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. AQ BQ NQ HQ PQ Color as Per Your Request Sizese Bq Nq Hq Pq Lenghth 1m~3m Transport Package Plywood Case Specification ISO9001 Trademark Forsun Origin Changsha Hunan HS Code 84314320 Production Capacity 100 Sets Per Month

Product Description

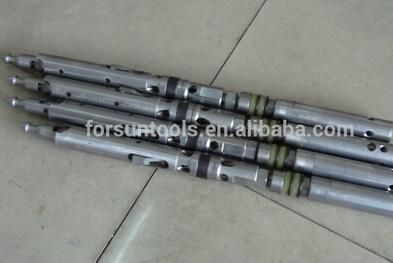

Forsun manufacture differenct types of the core barrels with high quality.

Size Available:

B76 core barrel, B86 core barrle, B101 core barrel, B131 core barrel, B146 core barrel
BQ core barrel NQ core barrel, HQ core barrel PQ core barrrel, NQ3 core barrel, HQ3 core barrel, PQ3 core barrel
TT-46 core barrel TT56 core barrel
T2-56 core barrel, T2-66 core barrel, T2-76 core barrel, T2-86 core barrel, T2-101 core barrel
T6-76 core barrel T6-86 core barrel T6-101 double/triple tube core barrel T6-116 double/triple tube core barrel T6-131 double/triple tube core barrel, T6-131 core barrel
T6S core barrel etc.
NMLC double/triple tube core barrel, HMLC double/triple tube core barrel
HWF double/triple tube core barrel, PWF core barrel
NWG single/double tube core barrel, HWG single/double tube core barrel
NX single/double tube core barrel, HX single/double tube core barrel
LTK48 core barrel
M101 core barrel
412 F core barrel

Chinese Standard: Wireline 56, wireline 59, wireline 75, wireline 91...


Wireline drilling is the special method of removing the core. When the driller wants to remove core from a conventional core drill, the entire core barrel has to be removed from the hole. This is time-consuming, as each rod has to be removed one at a time. With wireline drilling, a barrel of core can be removed from the bottom of the hole without removing the rod string. When the driller wants to remove the core, an overshot is lowered on the end of a wireline. The overshot attaches to the back of the core barrel inner tube and the wireline is pulled back and the inner tube disengages itself from the barrel.

Welcome to contact us for more information.


Wire line core barrel	double tube core barrel
single tube core barrel	triple tube core barrel
