• Model NO.：WD-037
• Teeth Type：Continous Cutting Edge
• Transport Package：One Piece in One PVC Pouch or in One PVC Tube
• Specification：10-60mm
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. WD-037 Teeth Type Continous Cutting Edge Transport Package One Piece in One PVC Pouch or in One PVC Tube Specification 10-60mm Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

Product Name

Quick Change Hex Shank Wood Quad Auger Drill Bit with Four Flutes for Speed Feed Wood Drilling
Material

Carbon Steel With Heat Treatment
Shank

Quick Change Hex Shank   (Hex Shank,  SDS Plus Shank and Hand Use Shank are available)
Flute

Four Flutes   (Single Flute with Stem, Single Flute without Stem,Double Flutes and Three Flutes are available)
Head Tip

Quad Head Four Spurs   (Single Spur with Screw Point, Double Spurs andThree Spurs are available)
Surface Finish

Black & Bright   (Color Painting, Titanium coating TPFE Coating are available)
Package

One Piece in One PVC Pouch Or In One PVC Tube or Double Blister
Features

1. Made from high quality, hardened steel for added durability.
2. Four cutting spurs for faster, cleaner holes, less breakout, and extended drilling life.
3. Tapered Four flutes design for faster chip ejection and less binding.
4. Screw point tip allows bit to self-feed for ease of drilling.
5. Quick change shank reduces slipping in standard chucks and is compatible with all 1/4" quick-change chucks, including impact drills.
6. For use with corded and cordless drills.

Procuct Name

Hinge Boring Wood Forstner Drill Bits with Continous edge for Woodworking

Material

High Carbon Steel with Heat Treatment

Teeth Type

Continous Cutting Edge  (Saw-tooth edge , Tungsten carbide Teeth , Flat Bottom are Available)

Shank Type

Round Shank   (Quick Change Hex Shank,  Hex Shank,  SDS Plus Shank  are Available)

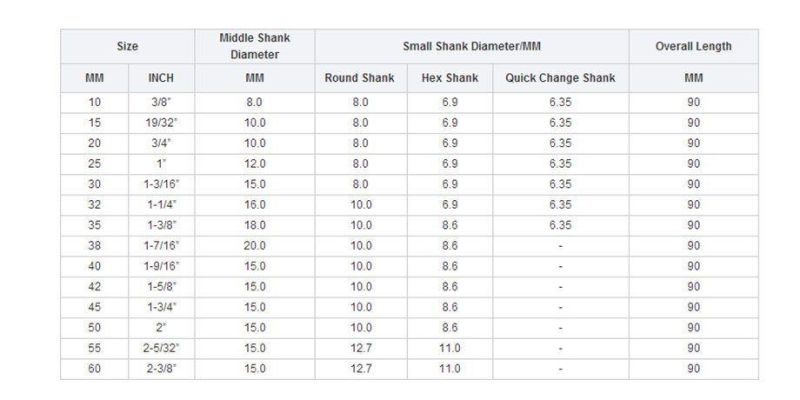

SizeDiameter :

6mm-60mm ;

Overall Length :

90mm

Surface Finish

Bright

Package

One Piece In One Plastic  Box or PVC Double Blister

Features

1.Drills straight, angled, overlapping holes and flat bottom holes in all types of wood without splintering, Ideal for cup hinges, mortising, doweling, hardware installation.

2.Forged construction of the hardened high carbon steel body warrants a long bit life and a sharp cutting edge.
3.Sharp center spur accurately locates the center of the hole without walking on the material.
4.Two sharpened inside edges easily cut through all woods and make flat bottomed holes.
5.Steep, angled continous cutting edges produce smooth, flat holes and create chisel-like curls for fast, clean chip removal.
6.Large gullets provide exceptional chip clearance.
7.Round shank is designed for use in power drills, drill presses, and boring machines.
