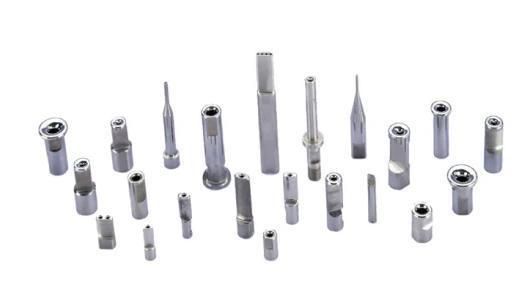

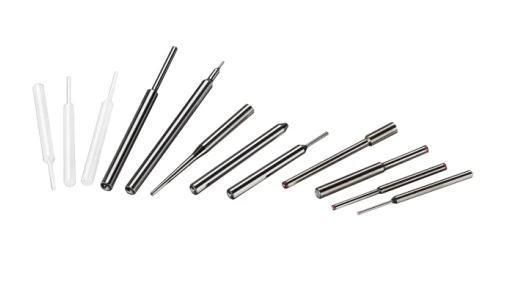

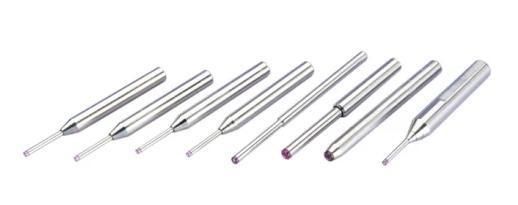

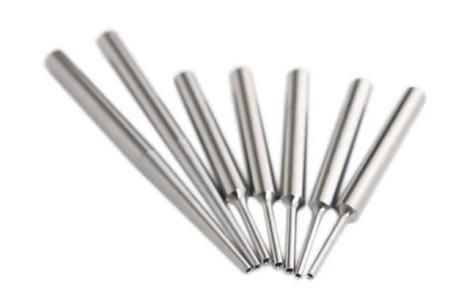

Guide Tube
Hangzhou Fanxi Tools Co., Ltd.- Length：Jobber-length
- Type：Guide Tube
- Material：Solid Carbide
- Usage：Well Drilling
- Color：Yellow
- Transport Package：PVC
Base Info
- Model NO.：24G56
- Specification：15-20kg
- Trademark：FANXI
- Origin：China
- HS Code：84314999
- Production Capacity：500pieces,Year
Description
Series of fixing dimension Ø2Serial Model Specification ( mm ) L L1 D D1 d1 d2 H 1 W0435-2-1010 35 10 2 1.0 0.4 0.4 N/A 2 W0535-2-1210 35 10 2 1.2 0.5 0.5 N/A 3 W0435-2-1207 35 7 2 1.2 0.4 0.4 N/A 4 W0635-2-1210 35 10 2 1.2 0.6 0.6 N/A 5 W0435-2-1007 35 7 2 1.0 0.4 0.4 N/A 6 W0530-2-1210 30 10 2 1.2 0.5 0.5 N/A 7 W0330-2-0808 30 8 2 0.8 0.3 0.3 N/A 8 W0330-2-0607 30 7 2 0.6 0.3 0.3 N/A 9 W0435-2-1508 35 8 2 1.5 0.4 0.4 N/A 10 W0635-2-1510 35 10 2 1.5 0.6 0.6 N/A 11 W0335-2-0810 35 10 2 0.8 0.3 0.3 N/A 12 W0326-2-1007 26 7 2 1.0 0.3 0.3 N/A 13 W0430-2-1010 30 10 2 1.0 0.4 0.4 N/A 14 W0530-2-1010 30 10 2 1.0 0.5 0.5 N/A 15 W0430-2-1085 30 8.5 2 1.0 0.4 0.4 N/A 16 W0735-2.5-1811 35 11 2.5 1.8 0.7 0.7 N/A 17 W0835-2.5-2011 35 11 2.5 2.0 0.8 0.8 N/A 18 W0330-2-1006 30 6 2.0 1.0 0.3 0.3 N/A 19 W0635-2-1215 35 15 2.0 1.2 0.6 0.6 N/A Model Specification (mm ) L L1 D D1 d1 d2 H 1 W0330-3-1007 30 7 3 1.0 0.3 0.3 N/A 2 W0430-3-1007 30 7 3 1.0 0.4 0.4 N/A 3 W0530-3-1010 30 10 3 1.0 0.5 0.5 N/A 4 W0630-3-1007 30 7 3 1.0 0.6 0.6 N/A 5 W0330-3-0807 30 7 3 0.8 0.3 0.3 N/A 6 W0630-3-1211 30 11 3 1.2 0.6 0.6 N/A 7 W0630-3-1309 30 9 3 1.3 0.6 0.6 N/A 8 W0630-3-1511 30 11 3 1.5 0.6 0.6 N/A 9 W0611-3-1506P 11 6 3 1.5 0.6 0.6 5 10 W0614-3-1509P 14 9 3 1.5 0.6 0.6 5 11 W0814-3-1509P 14 9 3 1.5 0.8 0.8 5 12 W1014-3-1509P 14 9 3 1.5 1.0 1.0 5 13 W0414-3-1009P 14 9 3 1.0 0.4 0.4 5 14 W1030-3 30 N/A 3 N/A 1.0 1.0 N/A 15 W0326-3-0808 26 8 3 0.8 0.3 0.3 N/A 16 W0330-3-0810 30 10 3 0.8 0.3 0.3 N/A 17 W0330-3-0607 30 7 3 0.6 0.3 0.3 N/A 18 W03265-3-0811P 26.5 11 3 0.8 0.3 0.3 15 19 W0626-3-1208 26 8 3 1.2 0.6 0.6 N/A 20 W1030-3-2014 30 14 3 2.0 1.0 1.0 N/A 21 W1230-3-2514 30 14 3 2.5 1.2 1.2 N/A 22 W0330-3-0707 30 7 3 0.7 0.3 0.3 N/A 23 W0330-3-0502 30 2 3 0.5 0.3 0.3 N/A 24 W0626-3-1208 26 8 3 1.2 0.6 0.6 N/A 25 W0530-3-1210 30 10 3 1.2 0.5 0.5 N/A 26 W0330-3-0504 30 4 3 0.5 0.3 0.3 N/A 27 W0825-3 25 N/A 3 N/A 0.8 0.8 N/A 28 W0435-1211 35 11 3 1.2 0.4 0.4 N/A 29 W03535-3-0811 35 11 3 0.8 0.35 0.35 N/A 30 W0735-3-1411 35 11 3 1.4 0.7 0.7 N/A 31 W0430-3-0808 30 8 3 0.8 0.4 0.4 N/A 32 W1025-3-1608 25 8 3 1.6 1.0 1.0 N/A 33 W0845-3-2017 45 17 3 2 0.8 0.8 N/A 34 W1535-3 35 N/A 3 N/A 1.5 1.5 N/A 35 W0535-3-1211 35 11 3 1.2 0.5 0.5 N/A 36 W1036-3-2016 36 16 3 2.0 1.0 1.0 N/A 37 W0630-3-1212 30 12 3 1.2 0.6 0.6 N/A 38 W1022-3-2010 22 10 3 2.0 1.0 1.0 N/A Model Specification ( mm ) L L1 D D1 d1 d2 H 1 W0830-4-2015 30 15 4 2.0 0.8 0.8 N/A 2 W1243-4-2515 43 15 4 2.5 1.2 1.2 N/A 3 W1243-4-2515P 43 15 4 2.5 1.2 1.2 20 4 W0843-4-2015P 43 15 4 2.0 0.8 0.8 20 5 W1232-4.5 32 N/A 4.5 N/A 1.2 1.2 N/A 6 W1543-4-2512P 43 12 4 2.5 1.5 1.5 20 7 W0843-3.9-2019P 43 19 3.9 2.0 0.8 0.8 19 8 W2020-5 20 N/A 5 N/A 2.0 2.0 N/A
