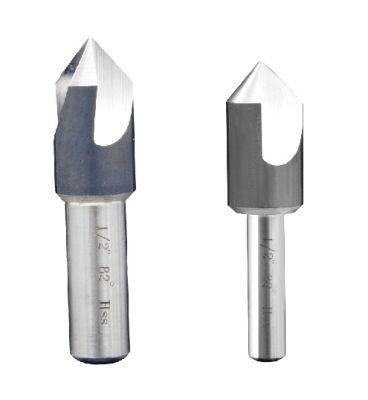

3 Flute 82 Deg. Countersink, HSS / HSS-Co Silver
SHI WEI INDUSTRIAL CO., LIMITED- Customized：Customized
- Standard：AISI
- Length：Straight Shank
- Type：Countersink Drill Bit
- Material：High Speed Steel
- Usage：Metal Drilling
Base Info
- Model NO.：41AGR
- Point Angle：82 Degree
- Flute：3 Flute
- Shank：Parallel Round Shank
- Process：CBN Ground
- Finishing：HSS , HSS-Co Silver
- Marking：Laser Etching
- Transport Package：Plastic Case
- Specification：See the table below
- Trademark：OEM available
- Origin：China
- HS Code：82075090
- Production Capacity：50000 Pieces , Month
Description
Basic Info.
Model NO. 41AGR Point Angle 82 Degree Flute 3 Flute Shank Parallel Round Shank Process CBN Ground Finishing HSS / HSS-Co Silver Marking Laser Etching Transport Package Plastic Case Specification See the table below Trademark OEM available Origin China HS Code 82075090 Production Capacity 50000 Pieces / MonthProduct Description
Feature:
1. 82 degree point angle
2. For use in deburring, countersinking,and enlarging holes in sheet metal
3. Used to countersink flat head screw and provide a smooth surface finish
4. Will contersink holes much smaller than other styles
5. CBN Fully ground, a better and sharper cutting edge is achieved, without burrs
6. Operate at low speed
Size available:
| Size | Overal Length | Shank Dia. |
| 1/4" | 1-1/2" | 1/4" |
| 3/8" | 1-3/4" | 1/4" |
| 1/2" | 2" | 1/4" |
| 5/8" | 2-1/4" | 3/8" |
| 3/4" | 2-5/8" | 1/2" |
| 1" | 2-3/4" | 1/2" |
| 1-1/4" | 3" | 1/2" |
| 1-1/2" | 3" | 1/2" |
| 2" | 3-1/4" | 1/2" |
