• Model NO.：HD-015
• Specification：12-40mm
• Trademark：FANXI
• Origin：P. R. China
• HS Code：8207509000
• Production Capacity：100, 000PCS,Month

Basic Info.

Model NO. HD-015 Specification 12-40mm Trademark FANXI Origin P. R. China HS Code 8207509000 Production Capacity 100, 000PCS/Month

Product Description

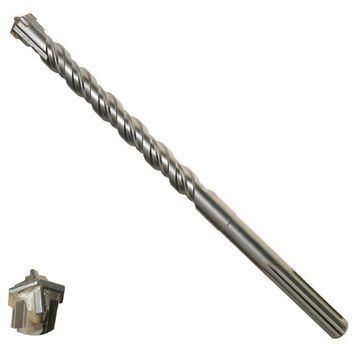

Fast drilling professional bit for SDS Max systems
Multi Cutter design(5/8''and above) for faster drilling,
Longer life and rounder holes
Double narrow land flute design for faster dust extraction, less vibration, less firction and more impact energy to the tip
Tool shaft is heat treated, annealed and shot peaned for longer life
Premium grade hammer carbide for use with heavy duty hammers
Made to ANSI standards
Holes from 12mm to 40mm

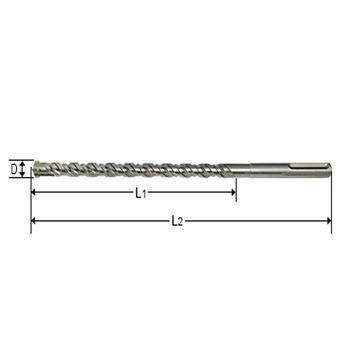

Diameter D	Flute Length L1	Overall Length L2
12	200	340
12	400	540
13	250	390
13	400	540
14	200	340
14	400	540
15	200	340
15	400	540
16	200	340
16	400	540
16	770	920
18	200	340
18	400	540
19	250	390
19	400	540
20	200	350
20	400	520
20	800	920
22	200	320
22	400	520
22	800	920
24	200	350
24	400	520
25	200	320
25	400	520
25	800	920
26	250	370
26	400	520
28	250	370
28	450	570
30	250	370
30	450	570
32	250	370
32	450	570
32	800	920
35	450	570
38	450	570
40	450	570
