Drilling Tools

Home > Product > Drill Bit

Drilling Tools Thread Button Bit T45 76mm Drill Bits

MAXDRILL ROCK TOOLS CO., LTD.
  • Customized：Non-Customized
  • Standard：GB,T2828.1-2003
  • Length：Stub-length
  • Type：Drill Bit
  • Material：Alloy Steel & Tungsten Carbides
  • Usage：Mining Drilling

Base Info

  • Model NO.：3076t4513D
  • Applicable Industries：: Construction Works, Energy & Mining
  • Key Word：Button Bit
  • Machine Type：Drilling Tool
  • Color：Red
  • Angle：35°
  • Button Shape：Spherical , Ballistic
  • Rock Class：Soft, Medium and Hard
  • Application：Rocking
  • Processing Type：Machined
  • Name：T45 Drill Button Bit
  • Part Number：3076t4513D
  • Diameter：76mm
  • Transport Package：Carton&Plywood Pallet
  • Specification：T45
  • Trademark：MAXDRILL
  • Origin：China
  • HS Code：82071300
  • Production Capacity：100000

Description

Dimensions DFlushing hole(mm)Buttons(mm)AngleClassPart No.mminFront No SizeGauge No SizeFront No SizeGauge No Size702 3/42x82x64x118x1135°H3070T45127632x92x74x118x1235°H3076T4512893 1/22x132x85x128x1435°H3089T451310242x13-6x138x1435°H30102T45141154 1/24x13-6x148x1635°H30115T45F14702 3/44x8-5x108x1135°M3070T4513D7634x8-5x118x1235°M3076T4513D893 1/24x9-6x128x1435°M3089T4514D10244x11-6x138x1435°M30102T4514D1154 1/24x13-6x148x1635°M30115T4514D702 3/42x82x64x118x1135°H3070T4512R7632x92x74x128x1235°H3076T4512R893 1/22x112x86x128x1435°H3089T45F14R10244x11-6x138x1435°H30102T45F14R1154 1/24x13-6x148x1635°H30115T45F14R7634x8-5x118x1235°M3076T4513DR893 1/24x10-6x128x1435°M3089T4514DR10244x11-6x138x1435°M30102T4514DR1154 1/24x13-6x148x1635°M30115T4514DR


Bit Diameter: 70mm-127mm

Length of drill rod: 1800mm-5530mm

Button bit design: Flat face, drop center, normal and retrac body.

Tungsten carbide (Buttons): Spherical, ballistic and conical.

Applications:  bench Mining

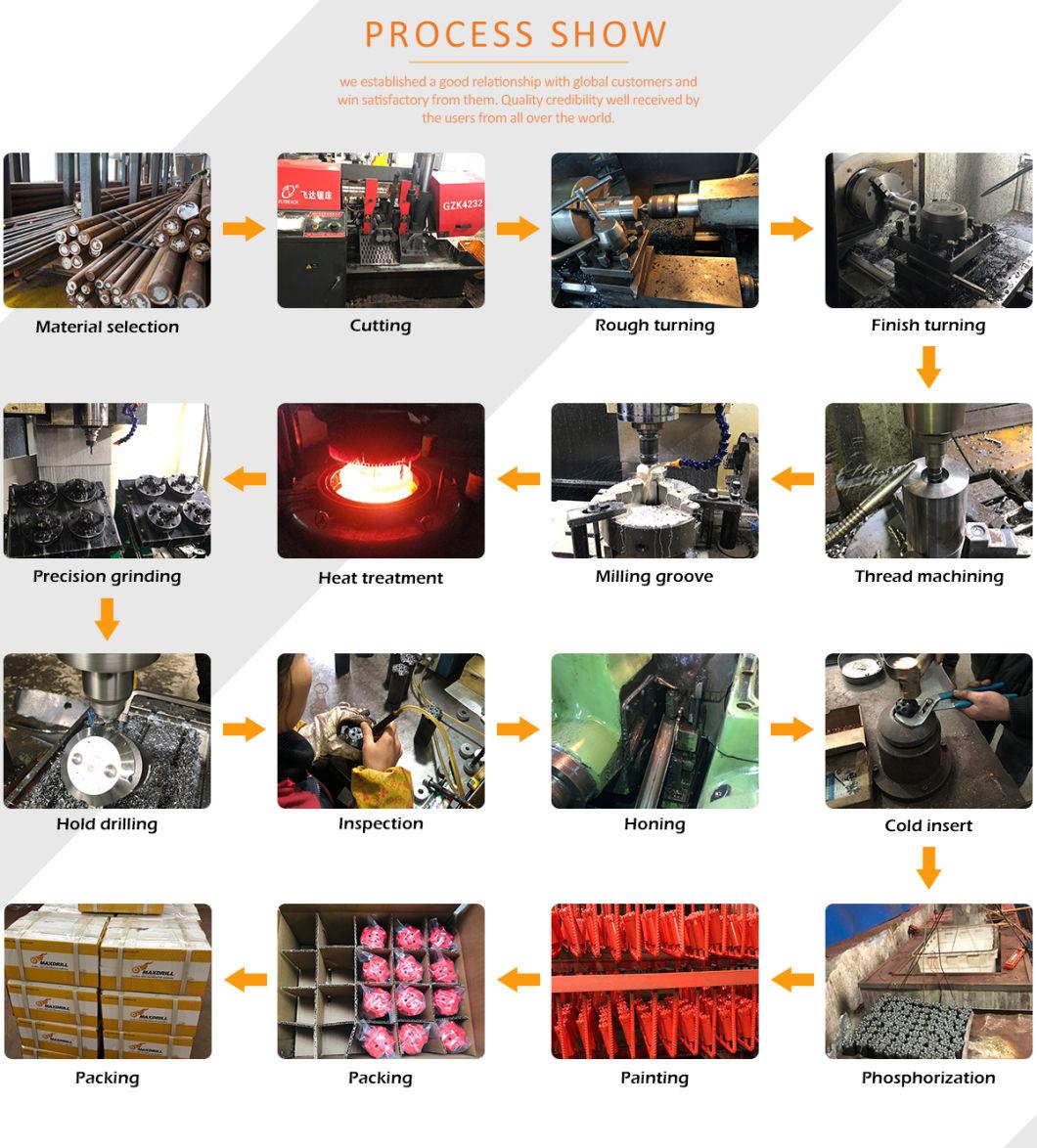

Product Process:

Drilling Tools Thread Button Bit T45 76mm Drill Bits
Packing Show:
Drilling Tools Thread Button Bit T45 76mm Drill Bits

Certificate Show:
Drilling Tools Thread Button Bit T45 76mm Drill Bits
Exhibition:
Drilling Tools Thread Button Bit T45 76mm Drill Bits


Wide Application:
Drilling Tools Thread Button Bit T45 76mm Drill Bits

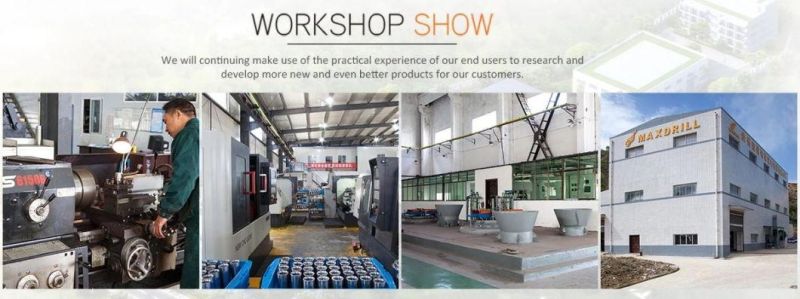

Workshop show:
Drilling Tools Thread Button Bit T45 76mm Drill Bits

FAQ:
The information you may like to know before order:

1. Methods of Payment:

  T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

  Based on order quantity, normally it takes 25 days for production.

  Only 2 or 3 days if we have stock on your request size.

3. Shipping way

  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

  Bulk order: we suggest by air or by sea.

4. Quality Control

  We have our own experienced QC.

  There will be strict inspection and testing for every order before shipping out.

5. After Services:

  a. Our sales team will response for your question within 24 hours (Holidays Excluded)

  b. Technical Support will be available in any time

  c. Free replacement will provide once the failure confirmed caused by our product quality
