Maxdrill Tophammer T45 89mm Drilling Button Bit

MAXDRILL ROCK TOOLS CO., LTD.
  • Customized：Non-Customized
  • Standard：ISO 9001:2015
  • Length：Stub-length
  • Type：Alloy Steel
  • Material：Alloy Steel & Tungsten Carbides
  • Usage：Rock Drill

Base Info

  • Transport Package：Carton&Plywood Pallet
  • Specification：Dia.: 33MM-258MM
  • Trademark：Maxdrill
  • Origin：China
  • HS Code：820719
  • Production Capacity：8000PCS,Month

Description

Dimensions DFlushing hole(mm)Buttons(mm)AngleClassPart No.mminFront No SizeGauge No SizeFront No SizeGauge No Size702 3/42x82x64x118x1135°H3070T45127632x92x74x118x1235°H3076T4512893 1/22x132x85x128x1435°H3089T451310242x13-6x138x1435°H30102T45141154 1/24x13-6x148x1635°H30115T45F14702 3/44x8-5x108x1135°M3070T4513D7634x8-5x118x1235°M3076T4513D893 1/24x9-6x128x1435°M3089T4514D10244x11-6x138x1435°M30102T4514D1154 1/24x13-6x148x1635°M30115T4514D702 3/42x82x64x118x1135°H3070T4512R7632x92x74x128x1235°H3076T4512R893 1/22x112x86x128x1435°H3089T45F14R10244x11-6x138x1435°H30102T45F14R1154 1/24x13-6x148x1635°H30115T45F14R7634x8-5x118x1235°M3076T4513DR893 1/24x10-6x128x1435°M3089T4514DR10244x11-6x138x1435°M30102T4514DR1154 1/24x13-6x148x1635°M30115T4514DR


Bit Diameter: 70mm-127mm

Length of drill rod: 1800mm-5530mm

Button bit design: Flat face, drop center, normal and retrac body.

Tungsten carbide (Buttons): Spherical, ballistic and conical.

Applications:  bench Mining

Product Process:

Maxdrill Tophammer T45 89mm Drilling Button Bit
Packing Show:
Maxdrill Tophammer T45 89mm Drilling Button Bit

Certificate Show:
Maxdrill Tophammer T45 89mm Drilling Button Bit
Exhibition:
Maxdrill Tophammer T45 89mm Drilling Button Bit


Wide Application:
Maxdrill Tophammer T45 89mm Drilling Button Bit

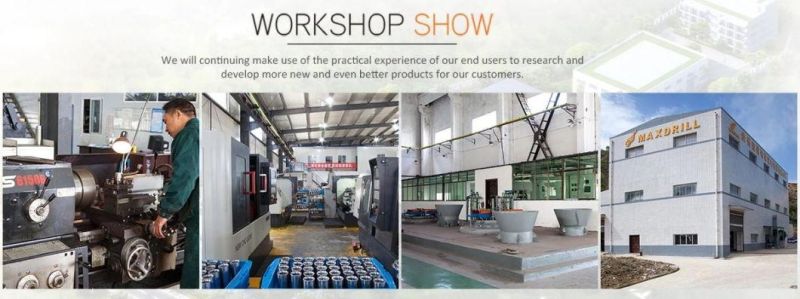

Workshop show:
Maxdrill Tophammer T45 89mm Drilling Button Bit

FAQ:
The information you may like to know before order:

1. Methods of Payment:

  T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

  Based on order quantity, normally it takes 25 days for production.

  Only 2 or 3 days if we have stock on your request size.

3. Shipping way

  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

  Bulk order: we suggest by air or by sea.

4. Quality Control

  We have our own experienced QC.

  There will be strict inspection and testing for every order before shipping out.

5. After Services:

  a. Our sales team will response for your question within 24 hours (Holidays Excluded)

  b. Technical Support will be available in any time

  c. Free replacement will provide once the failure confirmed caused by our product quality
