Drilling Tools

Factory Price! ! ! DHD360 Cop64 Mining Quarry Rock DTH Hammer and Button Bit

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Customized:Customized
  • Standard:API
  • Material:Tungsten Carbide
  • Usage:Well Drilling
  • Shape - Face:Flat or Concave or Convex
  • Air Pressure:High Air Pressure

Base Info

  • Model NO.:DHD360
  • Transport Package:Wooden Case
  • Specification:CE ISO
  • Trademark:JEAO
  • Origin:China
  • HS Code:84314320
  • Production Capacity:1000 Sets Per Months

Description

Basic Info.

Model NO. DHD360 Transport Package Wooden Case Specification CE ISO Trademark JEAO Origin China HS Code 84314320 Production Capacity 1000 Sets Per Months

Product Description

Product Description

Introduction:

It is a kind of high air pressure dth drill bit ,our newest design.It is also one of the most advanced DTH drill bit in the world.

Application:

Using mining industry, energy, metallurgy, geology, coal, water conservancy, chemical industry and road construction.

Our Advantages:

1.WE CAN PROVIDE THE COMPLETE SOLUTION ( DTH drill bit, DTH hammer, DTH Drill Rod, Air Compressor, DTH Drilling rig and added value services)
2.Lower energy consumption and higher impact frequency.the drilling speed is 15%~30% higher than other series DTH Hammer.
3.Simple structure,reliable parts,long life,easy and cheap maintenance.
4.Lower air and oil consumption.The oil consumption is about 10% lower than the one with foot valve.
5.The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.

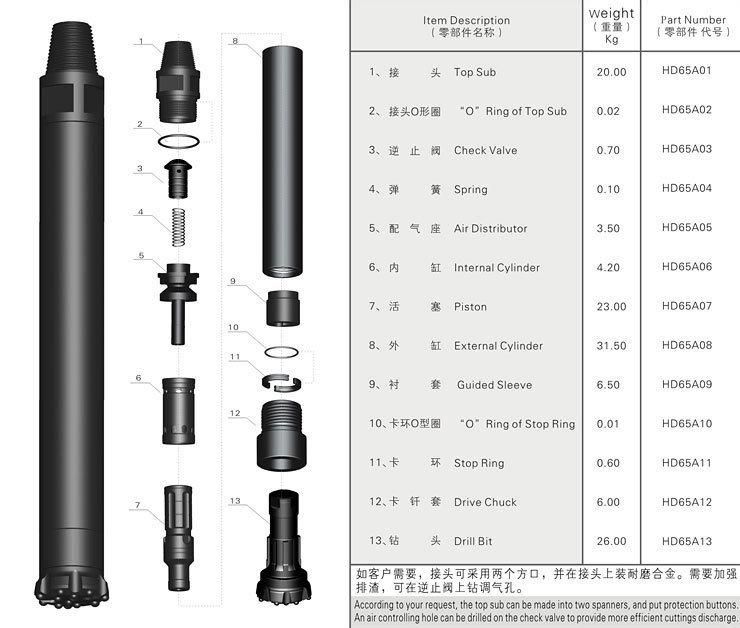

DTH hammer:

3'' DTH hammer: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH (down-the-hole) hammer: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH (down-the-hole) hammer: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.
6" DTH (down-the-hole) hammer: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH (down-the-hole) hammer: DHD380, QL80, SD8, MISSION80

DTH hammer bits:

3" DTH hammer bits (90-105mm), shanks: DHD3.5, COP34, COP32, MISSION 30, BR3, MACH303.
4" DTH hammer bits (105-130mm), shanks: DHD340/COP44, COP42, QL40, SD40, MISSION 40, XL40, MACH44.
5" DTH hammer bits (130-152mm), shanks: DHD350/COP54, COP52, QL50, SD5, MISSION50, XL5.

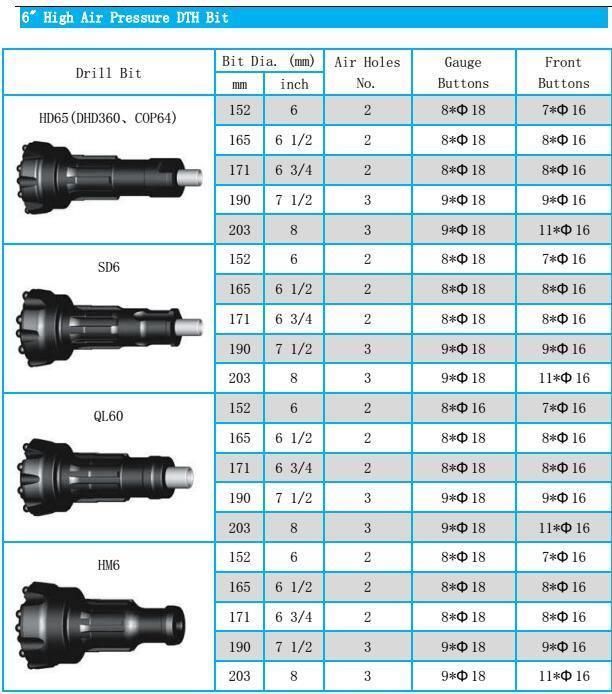

6" DTH hammer bits (152-171mm), shanks: DHD360/COP64, COP62, QL60, SD6, MISSIO60, XL6.
8" DTH hammer bits (200-305mm), shanks: DHD380, QL80, SD8, MISSION80

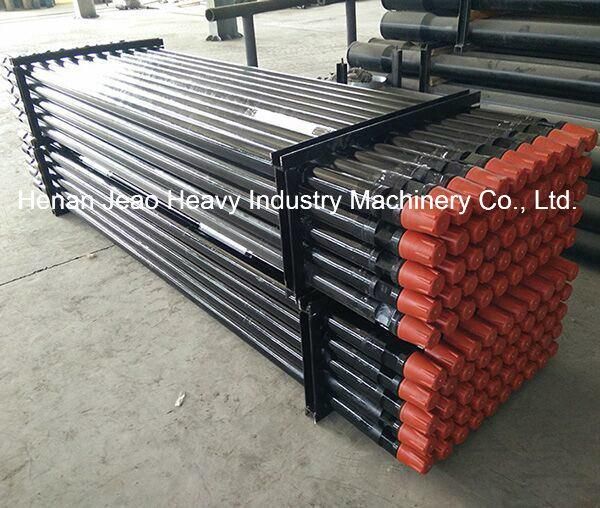

DTH rod range:

Drill rods diameter range: 60mm,64mm 76mm, 89mm, 102mm, 114mm, 127mm
Length: 1000mm, 1500mm, 2000mm, 3000mm, 4500mm, 6000mm, 7620mm, 8100mm, 9140mm, 10670mm
Thread: API IF2 3/8", API REG2 3/8", API IF2 7/8", API REG2 7/8", API IF3 1/2", API REG3 1/2"
